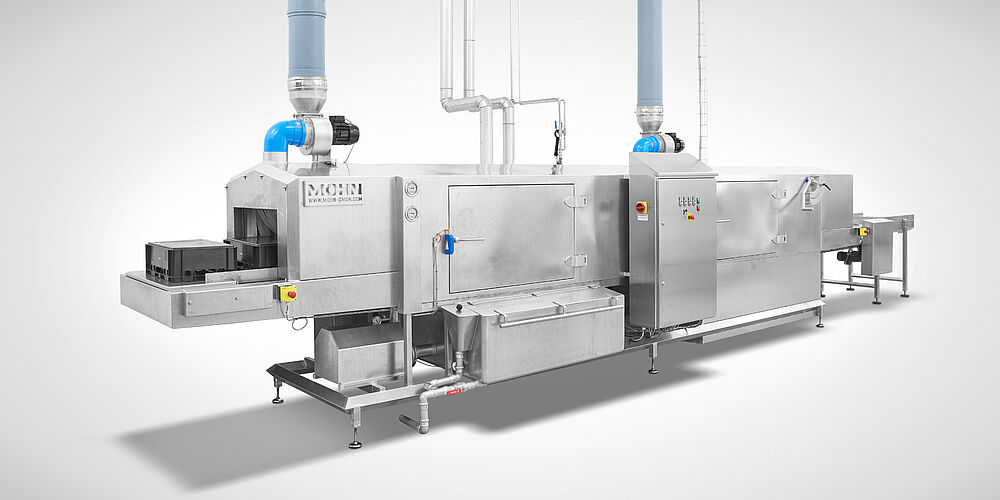

Industrial washing machine Highline
Type DLWA 450+BS1
ONE-Tank WASHING MACHINE FOR CLEANING Differenz wash goods
- Industrial washing machine (basket washing machine / container washing machine) - (one lane)
- Stainless steel conveyor belt with special cams to pick up different wash goods, such as rollis, boxes, baskets, bins, KLT containers, foldable boxes
- Completely double-walled, soundproof and heat insulated machine housing made of one piece and completely welded, low energy consumption
- Mainwash zone, length 2700 mm (incl. rinse zone) with pump capacity 5,5 kW - 1600 ltr./m
- Nozzle arms with stainless steel nozzles can be removed and cleaned without any tools (Nozzle arms with forced positioning)

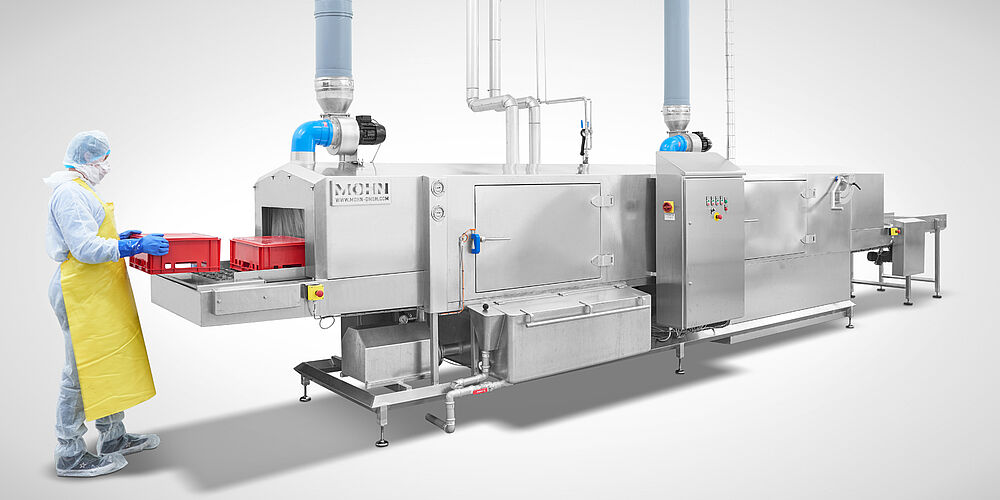

- Infeed table, electrically driven: length 1,500 mm, for easy manual feeding
- Neutral zone, length 500 mm, between main wash zone/clear rinse zone and blow-off module

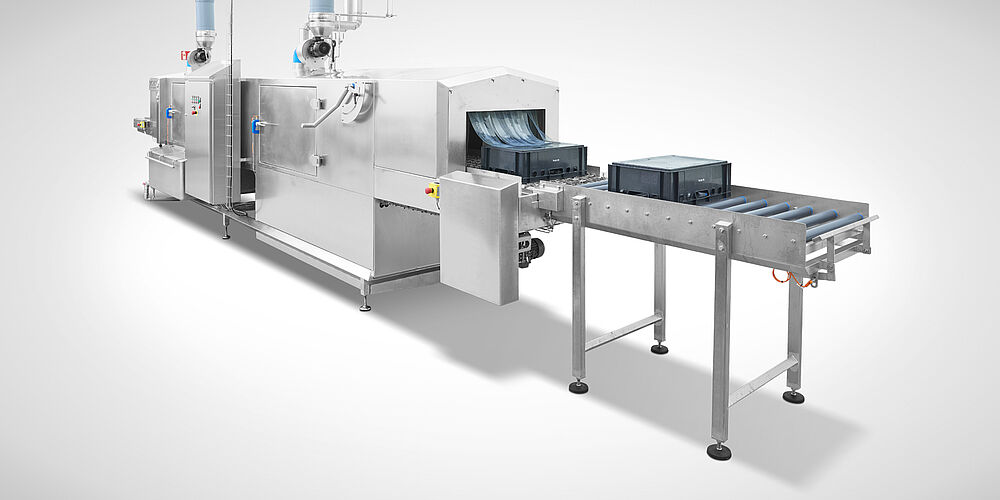

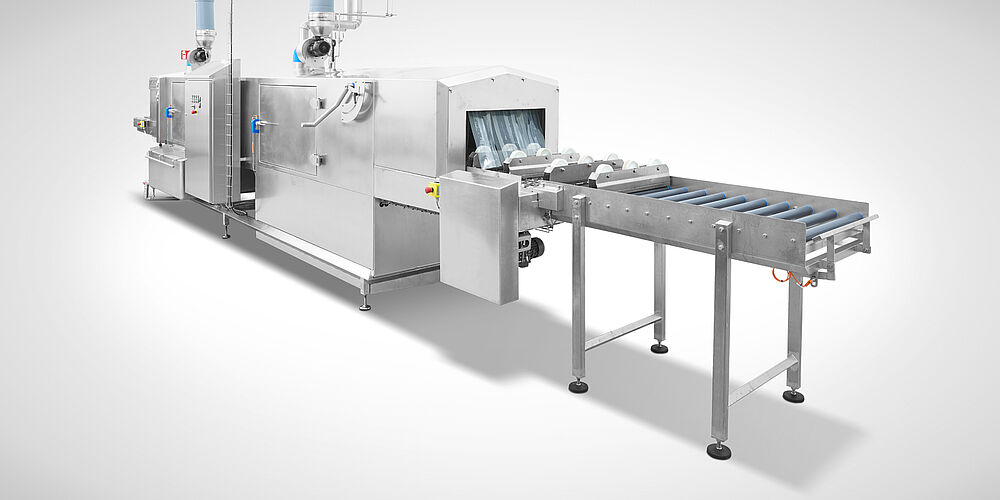

- Outlet table, electrically driven: length 1500 mm additional with gravity roller conveyor (length: 3000 mm) with limit switch (Belt + stop with full outlet belt after final rinsing)
- Tank volume 700 Liter, depends on filter type execution*
- Heating of the tank water takes place by means of indirect steam heating via steam traps
- Large and easily cleanable external filter box with funnel overflow
- Rinse water heating by means of steam counterflow and steam trap
- Mainwash zone: Washing temperature 50-55° Celsius
- Rinse zone: Fresh water temperature approximate 20° Celsius
- Clear rinsing zone: fresh water heating via steam boiler approx. 60-80° Celsius (depending on the on-site fresh water temperature)
- Electrically driven conveyor belt/ washing goods conveyance via 600 mm wide stainless steel wire eye link belt
- Blower zone, length 1800 mm, with electric air compressor with 4 kW power and aerodynamically optimized air knives
- Stainless steel heat exchanger provides heating of the blow-off air in the blower zone
- Steam exhaust with stainless steel piping in the inlet area and the neutral zone (before the blower zone)
- Abluftsystem aus Edelstahl DN250 mit Absaugmotor, ,je 0,75 kW, 1x 1500 m³/h bei ca. 500 Pa (overrun time adjustable)
- Stainless steel exhaust system DN250 with exhaust motor, each 0,75kW, 1x 1500 m³/h at. 500 Pa
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
*Width depending on filter version
Material
Partially made of rustproof stainless steel 1.4301
DESCRIPTION AND SPECIFICATIONS
The industrial washer (Univeral washer) is designed for cleaning different types of washed goods, such as trolleys, GN containers, boxes, baskets, bins, KLT containers, foldable boxes etc. After cleaning, the residual water is gently blown off in the blower zone.
The indirect steam heating of the tank water and the supplied fresh water for the rinse zone by means of a steam trap, as well as the stainless steel heat exchanger for heating the air in the blower zone makes the industrial washer an energy-efficient cleaning solution for any industry.
WaSHing goods
- Small load carrier (KLT container) made of plastic, maximum width 600 x heigth 300 mm
- Euronorm container (E1-E3 container), maximum width 600 x heigth 300 mm
- Stainless steel trolleys with plastic rolls, maximum width 600 x heigth 300 mm
- GN-container up to maximum Type GN-2/1
- Shapes, e.g. liver cheese shapes, maximum width 600 x heigth 300 mm
- Baker baskets, maximum width 600 x heigth 300 mm
Technical Data
| Power supply | 3x 400 V/ N/ PE; 50 Hz |
|---|---|
| Drain | DN 50 |
| Water connection | G 3/4“, 1-6 bar, 1-6°dH, 45 up to 50°C |
| Water consumption | 300-400 l/h |
| Tank capacity | approximate 700 Liter |
| Pump capacity | 5,5 kW, 1600 ltr./min. (main wash zone) |
| Washing tunnel length | 2700 mm (main wash zone and rinse zone) |
| Fan engine power | 1x 4,0 kW ELEKTROR air compressor with 1 x 1500m³/h at 500Pa |
| Compressed air supply | Sleeve 1/4" |
| Exhaust air | 2x DN 250 |
| Steam connection (option) | V-flange ¾“, DN20, Ø 26,9mm |
| Heating power tank | Shell and tube heat exchanger |
| Wash tunnel dimensions (w x h) | B 600 x H 300 mm |
| Power rating steam heating | 12 kW |
| Exhaust ventilation | 2 x 0,75 kW (Capacity 1.500 m³/h at 500Pa) |
| Working height | 950 mm (ergonomically favorable) |
Nozzle arm
Numbered nozzle arms avoid confusion after cleaning and maintenance
Nozzles
Stainless steel nozzles with an optimal opening angle for a good cleaning effect. Insensitive to pollution.
Conveyor belt
Scanbelt bone chain, durable and extremely flexible
Control cabinet
Large control cabinet with high-quality control components from well-known manufacturers.
Box slanting passages
Box slanting passges for less water diversion.
Double-walled housing
30mm insulated, double-walled tunnel housing for low energy consumption. With large maintenance doors for easy internal cleaning.
Holddown height adjustment
Easy height adjustment of the holddown device to clean differently high items in the wash tunnel.
Stainless steel centrifugal pump
Powerful stainless steel centrifugal pump with high circulation and high wash pressure.
Outside box filter
Large outside box filter for taking up large amounts of dirt. Easy cleaning of the filter boxes also during running operation.
Robust frame rack
Robust profile tube frame rack made of stainless steel. Protects against damage.
