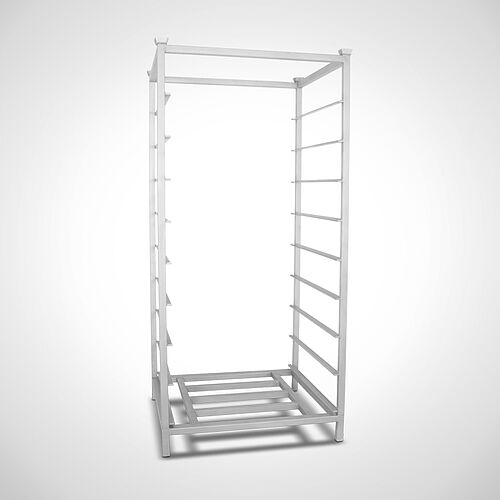

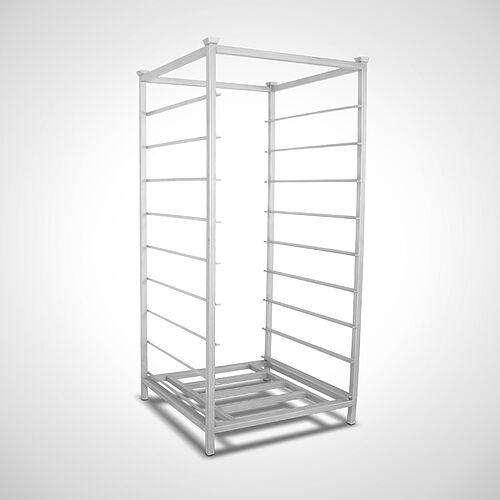

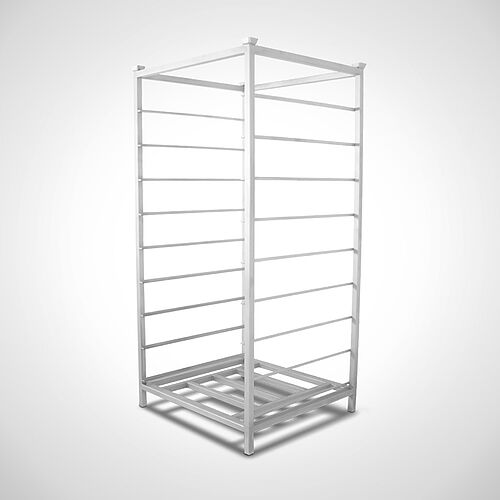

Smoking rack
Type RAGE-M/E SON
smoking rack for your fish or meat specialties
- Solid tubular-frame construction made of stainless steel
- Neatly welded and stained to a high standard
- Upper, all-round frame made of square profile tube 40 x 40 x 3 mm

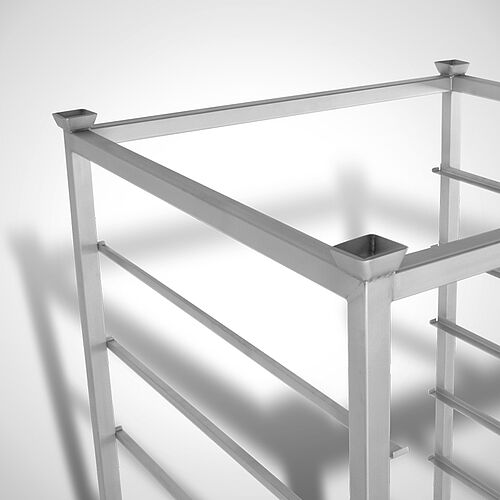

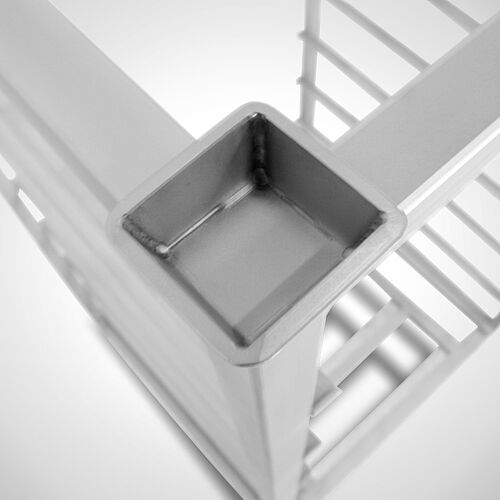

- Above, in the corners with robust stacking brackets
- 9 layers, layer distance 220 mm
- Permanently welded angle layers, 20 x 20 x 2 mm
- Angle layers at the end with 10 mm high stops
- Load per layer 80 kg/ Total load 720 kg

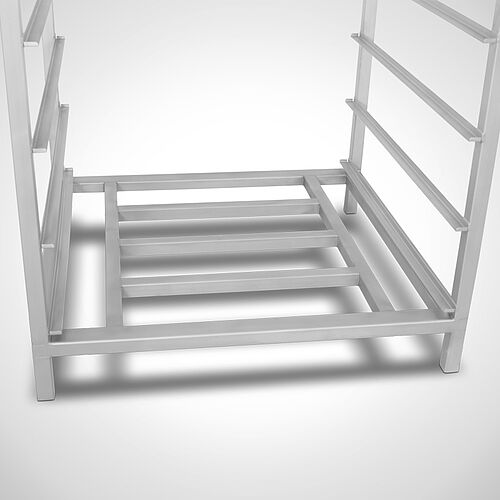

- Lower base frame made of rectangular profile tube 60 x 40 x 3 mm
- Lower base frame reinforced in the middle in "ladder shape" made of square profile tube 40 x 40 x 3 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Delivery take place without grids and accessoires
Material
Made of rustproof stainless steel 1.4301
Description
We manufacture your smoking racks individually according to your ideas in terms of frame construction, load, number of floors, floor design, floor spacing and dimensions.
