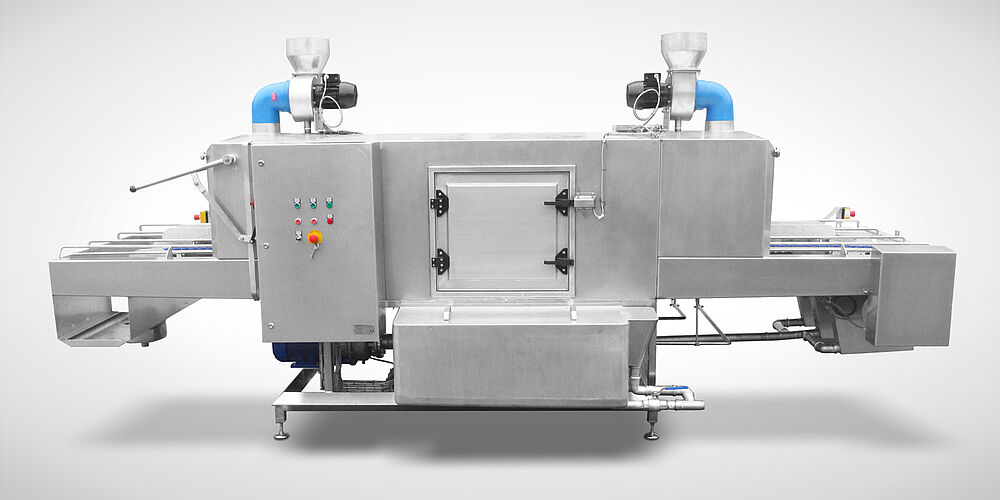

Industrial washing system Highline Type DLWA-400/2+PAL
single-tank washing machine for cleaning crates and pallets in pass-through
- Crate washer and pallet washer - output 400-500 crates/h (2-lane) or 100-120 H1 pallets/h (1-lane)
- Stable machine housing, double-walled, insulated, made of one piece and completely welded, low energy consumption
- Nozzle arms with stainless steel nozzles can be removed and cleaned without any tools (Nozzle arms with forced positioning)
- Infeed table: Length 1,500 mm, for easy manual feeding
- Strong stainless steel centrifugal pump with high circulation and strong wash pressure; spread over a total of 11 nozzle arms
- Large and easily cleanable external filter box with funnel overflow
- Electric tank heater: 30 kW; optional with steam direct or via heat exchanger
- Special filament heaters made of heat-resistant stainless steel, easy to clean, secure against burn-through
- Main wash zone: Washing temperature 50-55° Celsius
- Final rinsing zone: Fresh water heated up to 82° Celsius via electric boiler or steam heat exchanger
- Outfeed table: Length 1,500 mm with limit switch (Belt + clear rinsing stop with full outfeed table)
- Optionally with blow-off tunnel in different performance levels, depending on desired blow-off result
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Technical data depends on equipment. Errors and omissions excepted. Information provided without guarantee.
Material
Made of rustproof stainless steel 1.4301
Description
Pass-through washing system for cleaning crates and pallets with a passage height of 310 mm and a maximum passage width of once 820 (1-lane) or twice 410 mm (2-lane).
In 2 lanes, the crates are conveyed through the machine slightly inclined outward. The pallets are also guided longitudinally, but in 1 lane over a further, centre track belt (Scanbelt 1702, tensile strength 1t).
Options
- Fresh water pre-spraying DLWA 300/2+PAL at water supply temperatures less than 45°C Article no. 11.10.00.67
- Fresh water pre-spraying DLWA 300/2+PAL at water supply temperatures greater than 50°C Article no. 11.10.00.66
- Vapour exhaust 2x required Article no. 11.10.02.74
- Tank heater with direct steam Article no. 11.10.00.84
- Tank heater with indirect steam Article no. 11.10.00.83
- Rinsing boiler, output 1x 10 kW Article no. 11.10.00.86
- Rinsing boiler, output 2x 10 kW Article no. 11.10.00.85
- Steam counterflow valve final rinsing Article no. 11.10.00.82
- Blow off DLWA-BSP-1, +5 kW output Total length +2,300mm Article no. 11.10.00.76
- Blow off DLWA-BSP-2, +10 kW output, Total length +3,200mm Article no. 11.10.00.75
Technical Data
| Power supply | 3x 400 V/ N/ PE; 50 Hz |
|---|---|
| Drain | DN 50 |
| Water connection | 2x 3/4“, min. 40°C in main wash and 15-85°C in after rinsing area, 2-5 bar, 2-8°dH |
| Water consumption | ca. 300-400 ltr./h |
| Tank capacity | 800 ltr. (outside box filter) |
| Pump performance | 11 kW - 1000 ltr./min., 3 bar |
| Total length | 5.700 mm |
| Exhaust air | DN 250 (exhaust air socket) |
| Heating power | 30 kW (main wash tank) |
