Pass-through washing system for 30-60 standard trolleys/h
Pass-through washing system for 30-60 standard trolleys/h

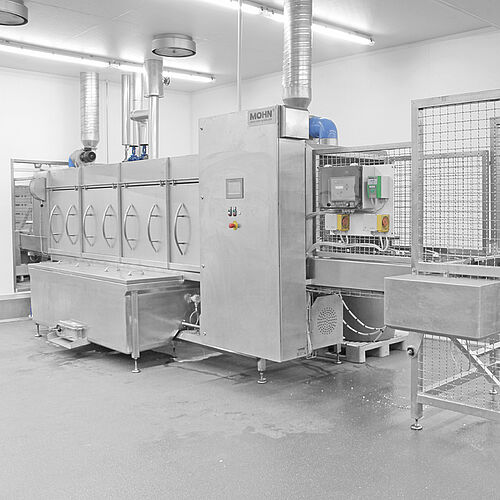

Pass-through washing system for standard trolleys: Inlet side (black area) with automatic loading station

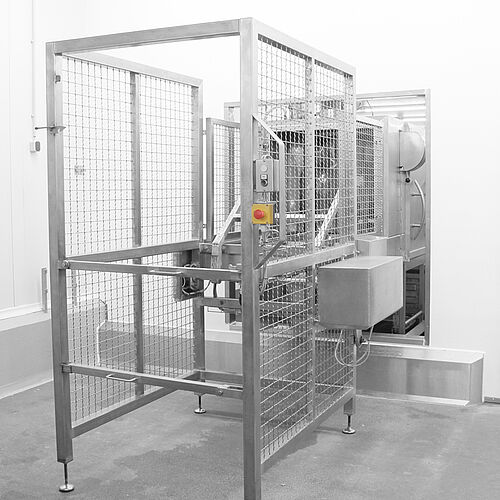

Pass-through washing system for standard trolleys: Outlet side (clean area) with automatic take-off station
Pass-through washing system for standard trolleys
Type DLWA-HBW
For cleaning usually soiled meat bins TyPe 200 ltr.
- Output 30 to 60 pieces/h depending on the relevant version
- The feed and removal of the 200 ltr. meat bins takes place by automatic infeed and outfeed stations.
- Automatic swivel device in the infeed and outfeed (see options) for one bin each (hourly output approx. 30 bins) or two bins (hourly performance approx. 60 bins)
- For thorough inside and outside cleaning, the trucks are lifted to conveyor track level and simultaneously tilted to more than 180°
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of rustproof stainless steel 1.4301
Laundry
200l standard meat bins (DIN 9797) fresh, common butchery pollution
System layout
- Self-supporting, completely double-walled, soundproof and heat insulated machine housing, made of one piece and completely welded, low energy consumption
- Tank 3 mm thick, inside of the tank rounded with R=30 mm, can be cleaned from the rear side, with an additional opening
- Washing tunnel on both sides with maintenance doors
- Nozzle arms can be removed and cleaned without any tools, nozzles with large passage (washing frames with forced positioning)
- Control via SIEMENS S7 with Pro Face Touch Screen, monitoring of all parameters
- 2,000 mm infeed table, cleaned parts transport via 2 Scanbelt chains
- Washing tunnel 3000 mm long with 2 large external box filters
- EDUR stainless steel centrifugal pump 22 kw; circulation 1,800l/ min at 4 bar wash pressure for internal and external cleaning
- Electrical heating approx. 50 kW, optional with direct or indirect steam
- Active washing zone passage width approx. 750 mm, with stable end guides
- Passage height approx. 1,300 mm (other dimensions are possible)
- Clear rinsing with 1,000 mm zone length; Fresh water rinsing opens only with trolleys passing by
- Outfeed length: 1500 mm
- Cleaning of 300 ltr. standard bins on request
Description
Total length without infeed and outfeed station: 7500 mm
Total length including infeed and outfeed station: 10500 mm
Number of production staff required at the facility:
One person at the inlet and one more person at the outlet
The task and removal are carried out by means of loading and unloading stations:
- Automatic swivel mechanism for one or two cars in the inlet and outlet (see options)
- The bin is lifted above 180 ° on the conveyor level and turned at the same time
Options
- Direct tank heater via steam Article no. 11.10.00.84
- Indirect tank heater via steam Article no. 11.10.00.83
- 10 kW electric boiler for heating the flushing water Article no. 11.10.00.86
- 20 kW electric boiler for heating the flushing water Article no. 11.10.00.85
- Steam heat exchanger to heat the final rinsing water Article no. 11.10.00.82
- Drum filter for automatic dirt discharge Article no. 11.10.02.73
- Infeed station 1 for one bin Article no. 11.10.00.74
- Infeed station 2 for two bins Article no. 11.10.00.72
- Vapour exhaust 1500 m³/h 2x required Article no. 11.10.02.74
Reference Photos
