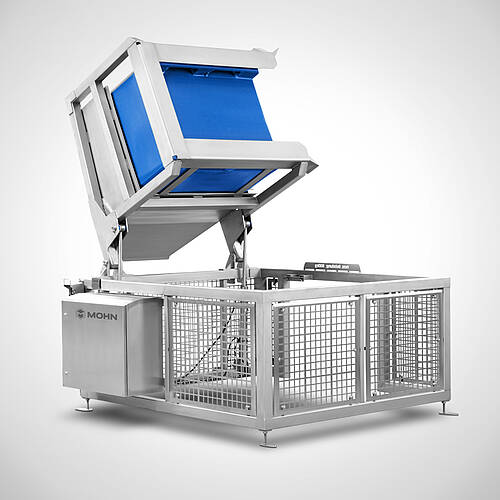

Lifting/tilting device
type HKV-GB SON with guide rail
With guide rail - for lifting and tilting pallet boxes
- Robust industrial design guarantees a long service life
- Various tipping heights from 1,400 to a maximum of 2,300 mm possible
- 2 different tipping direction versions type A or B available
- Chassis with integrated chute included (up to 2300 mm tipping height)
- Including stainless steel travelling rail with railing in hygienic design
- Maximum load capacity 500 kg (incl. container)
- Dead man's switch
- Hygienic design control box incl. operating elements on lifting column at ergonomic height
- Visual chain tension indicator
- Anti-crash protection: Inductive sensors and additional mechanical limit switches
- High-pressure cleaning possible, protection class: IP 65
- Mechanical safety device: Chain breakage protection, spring-operated
- Standard version: Nickel-plated chain (16 B-1)
- Highline version: Stainless steel chain (NO relubrication of grease necessary + chemical-resistant)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Special solutions available on request. Supplied without standard trolley.
MATERIAL
Almost completely made of stainless steel 1.4301, surface glass bead blasted.
Description
The design of the lifting and tipping device is determined by the type and viscosity of the bulk material and, if necessary, extended by special chutes, hoppers, lifting forks or lifting platforms. This means that the tipping devices can be customised for almost any application.
Up to a maximum tipping height of 2300 mm, the lifting & tipping device can be fitted with a trolley.
Special drop guard
The anti-drop device is made of stainless steel and consists of a 4 mm thick U-profile rail with rectangular fixing holes and a spring-loaded 25 mm fork.
The safety catch is activated when the chain breaks or sags. If this happens, the compression spring is triggered and the fork rotates into the fixing holes and brings the load to an immediate stop.
In contrast to conventional lifting and tipping devices, servicing is not necessary once the mechanical safety device has been triggered!
Technical Data
| Power supply | 3x 400 V; 50 Hz |
|---|---|
| Performance | 0,75 kW (gearing motor) |
| Protection class | IP 65 |
| Loading capacity | 350 kg (incl. standard trolley) |
| Lifting speed | 5 m/ min. |
| Tilt angle | 120° |
| Adjustability | 2 steps, each 150 mm (Machine preset on maximum lifting height!) |
Downloads
HD-surface
Stainless steel surface glass bead blasted, therefore very hgienic and easier to clean.
High-quality motor
High-quality SEW motor and massive chain wheel on pillar.
Anti crash device 1
End position detection by means of initiator + roller limit switch mounted at the top outside of the pillar.
Anti crash device 2
End position detection with the aid of initiator + roller limit switch integrated inside the pillar body.
Fall protection
Solid fall protection device.
Sliding block
Wear resistant sliding block.
Control cabinet
Control cabinet in Hygienic Design version from Rittal.
Electric Components
High-quality control components from renowned manufacturers.
Control elements
High-quality Schmersal control elements in hygienic design (IP69K) + Main switch with EMERGENCY STOP function (de-energised).
Protective housing
Protective housing to avoid cable damage.
Chain tension
Chain tension with simple optical display.
Chain guard
Chain guard sheet can be removed with only 1 screw.
Trolley safety device
Trolley safety device in hygienic design.
Note load capacity
Maximum load easily recognisable by visual indication.
