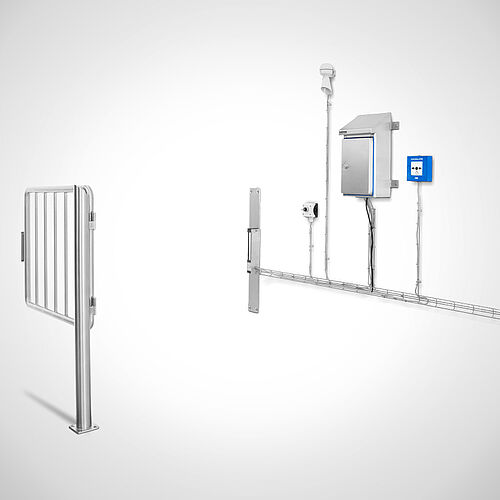

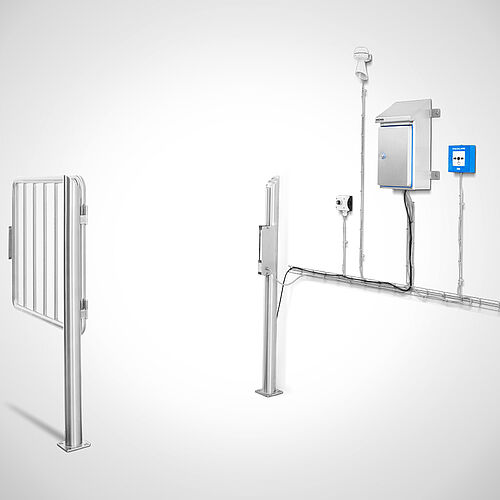

Handrail gate with magnetic lock Type MGT-1000-III-AL, art. no. 39.00.10.60 + 39.00.05.06

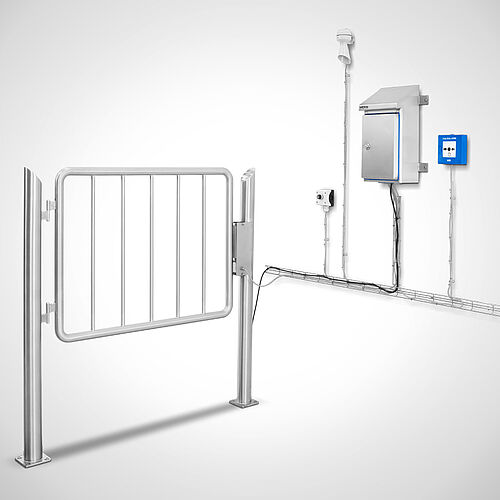

Handrail gate with magnetic lock Type MGT-1000-II-AL, art. no. 39.00.10.58 + 39.00.05.06

Handrail gate with magnetic lock
Type MGT

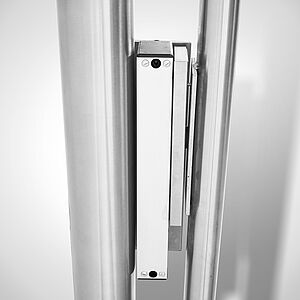

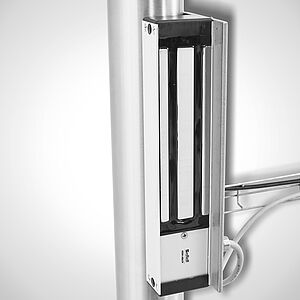

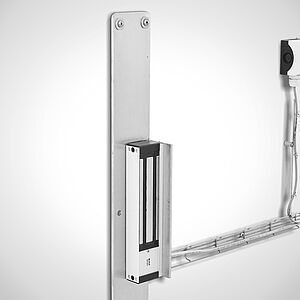

WAY of escape gate WITH SURFACE ADHERE MAGNET-LOCKING SYSTEM

Hygienic, cleanly welded pipe profile construction
Design with vertical braces
3 different gate types and clear passage widths available
Gate clearance dimensions 875, 1,000 & 1,200 mm (special widths on request)
Passage clearance width for up to 200 employees according to ASR A2.3*
Hinge: Opening direction LEFT or RIGHT
Standard height: 1,300 mm (special heights on request)

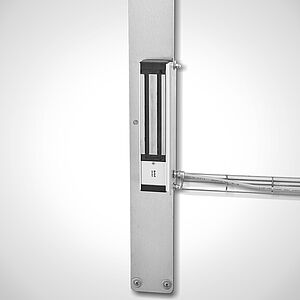

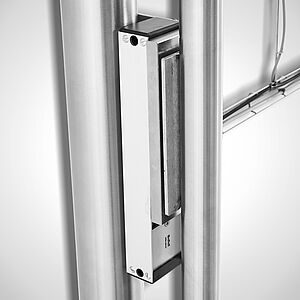

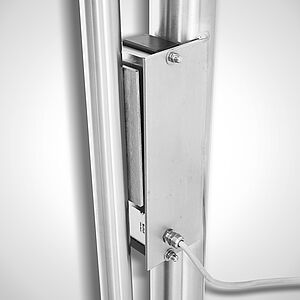

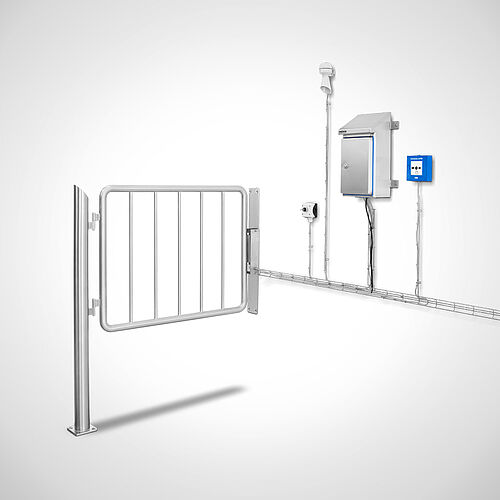

Read in conjunction with articel Adhesive Magnet-Locking System with article-no. 39.00.05.06:
- Compact control cabinet "RITTAL" in "hygienic design" version
- Connections for on-site systems available
  (e.g. fire alarm system or card reader)

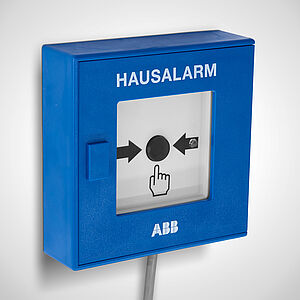

- House alarm box for emergency opening

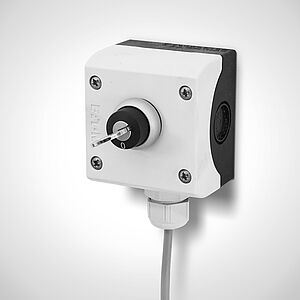

- Key switch for authorized opening
- Signal horn - acoustic signal when opening via house alarm activation

Type	Version	Opening direction	Number of persons after ASR*	Escape width in mm	Compare	Art.-No. Please mark	PDF
Torlichtmaß: 875 mm
MGT-875 I-AL	Wall fitting with hinge - Tube pillar with retaining plate for magnet	Hinge, left-hand	up to 5	875 mm	39.00.10.50	39.00.10.5039001050	39.00.10.50
MGT-875 I-AR	Wall fitting with hinge - Tube pillar with retaining plate for magnet	Hinge, right-hand	up to 5	875 mm	39.00.10.51	39.00.10.5139001051	39.00.10.51
MGT-875 II-AL	Wall fitting with retaining plate for magnet - Tube pillar with hinge	Hinge, left-hand	up to 5	875 mm	39.00.10.52	39.00.10.5239001052	39.00.10.52
MGT-875 II-AR	Wall fitting with retaining plate for magnet - Tube pillar with hinge	Hinge, right-hand	up to 5	875 mm	39.00.10.53	39.00.10.5339001053	39.00.10.53
MGT-875 III-AL	Tube pillar with hinge - Tube pillar with retaining plate for magnet	Hinge, left-hand	up to 5	875 mm	39.00.10.54	39.00.10.5439001054	39.00.10.54
MGT-875 III-AR	Tube pillar with hinge- Tube pillar with retaining plate for magnet	Hinge, right-hand	up to 5	875 mm	39.00.10.55	39.00.10.5539001055	39.00.10.55
Torlichtmaß: 1000 mm
MGT-1000 I-AL	Wall fitting with hinge - Tube pillar with retaining plate for magnet	Hinge, left-hand	up to 20	1000 mm	39.00.10.56	39.00.10.5639001056	39.00.10.56
MGT-1000 I-AR	Wall fitting with hinge - Tube pillar with retaining plate for magnet	Hinge, right-hand	up to 20	1000 mm	39.00.10.57	39.00.10.5739001057	39.00.10.57
MGT-1000 II-AL	Wall fitting with retaining plate for magnet - Tube pillar with hinge	Hinge, left-hand	up to 20	1000 mm	39.00.10.58	39.00.10.5839001058	39.00.10.58
MGT-1000 II-AR	Wall fitting with retaining plate for magnet - Tube pillar with hinge	Hinge, right-hand	up to 20	1000 mm	39.00.10.59	39.00.10.5939001059	39.00.10.59
MGT-1000 III-AL	Tube pillar with hinge - Tube pillar with retaining plate for magnet	Hinge, left-hand	up to 20	1000 mm	39.00.10.60	39.00.10.6039001060	39.00.10.60
MGT-1000 III-AR	Tube pillar with hinge - Tube pillar with retaining plate for magnet	Hinge, right-hand	up to 20	1000 mm	39.00.10.61	39.00.10.6139001061	39.00.10.61
Torlichtmaß: 1200 mm
MGT-1200 I-AL	Wall fitting with hinge - Tube pillar with retaining plate for magnet	Hinge, left-hand	up to 200	1200 mm	39.00.10.62	39.00.10.6239001062	39.00.10.62
MGT-1200 I-AR	Wall fitting with hinge - Tube pillar with retaining plate for magnet	Hinge, right-hand	up to 200	1200 mm	39.00.10.63	39.00.10.6339001063	39.00.10.63
MGT-1200 II-AL	Wall fitting with retaining plate for magnet - Tube pillar with hinge	Hinge, left-hand	up to 200	1200 mm	39.00.10.64	39.00.10.6439001064	39.00.10.64
MGT-1200 II-AR	Wall fitting with retaining plate for magnet - Tube pillar with hinge	Hinge, right-hand	up to 200	1200 mm	39.00.10.65	39.00.10.6539001065	39.00.10.65
MGT-1200 III-AL	Tube pillar with hinge - Tube pillar with retaining plate for magnet	Hinge, left-hand	up to 200	1200 mm	39.00.10.66	39.00.10.6639001066	39.00.10.66
MGT-1200II-AR	Tube pillar with hinge- Tube pillar with retaining plate for magnet	Hinge, right-hand	up to 200	1200 mm	39.00.10.67	39.00.10.6739001067	39.00.10.67
