Stainless steel rack for IBC container type G-IBC-120-80, Art. No. 40.00.01.70

Stainless steel rack for IBC container type G-IBC-120-100, Art. No. 40.00.01.73 with drip tray for drip-free decanting

Stainless steel rack for IBC container type G-IBC-120-100, Art. No. 40.00.01.73 with drip tray for drip-free transfer

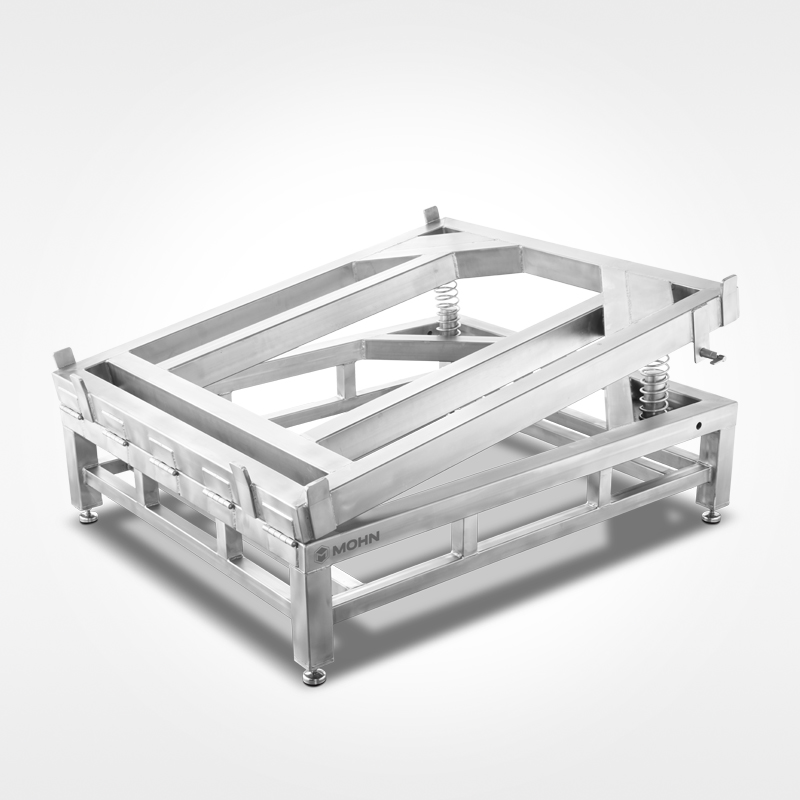

Stainless steel frame for IBC container type G-IBC-120-100 R, Art. No. 40.00.01.85 with optional spring mechanism for residual emptying for maximum usability of the medium

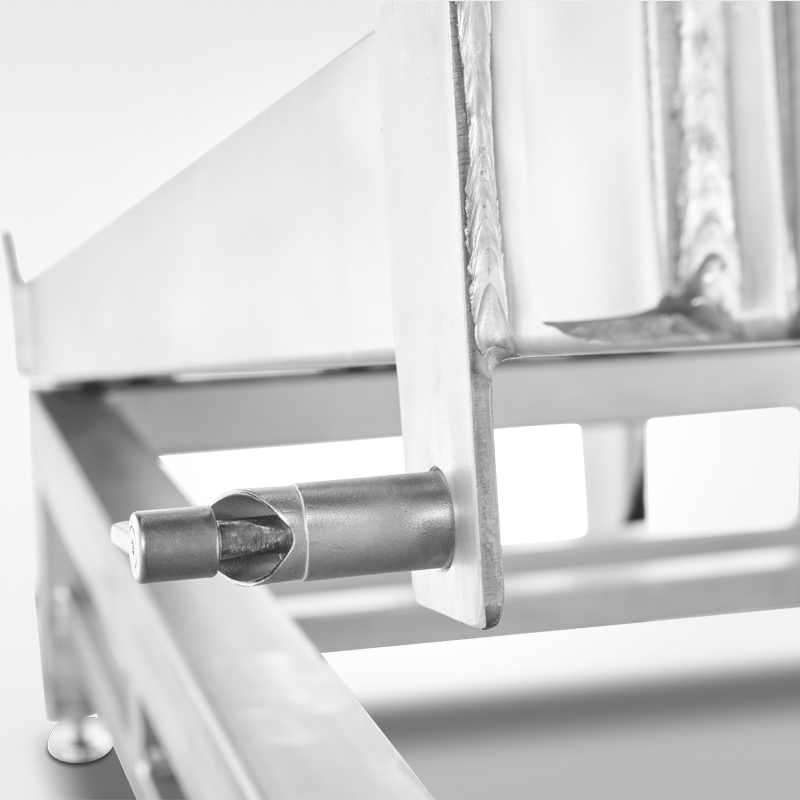

Detailed view: Stainless steel locking pin for the spring mechanism of the complete emptying option for IBC containers

Stainless steel rack for round IBC containers, Type G-IBC/R 1000, Item No. 40.00.01.82

Stainless steel rack for round IBC containers, Type G-IBC/R 1000, Part No. 40.00.01.82, Rack corner: anti-slip protection

Stainless steel rack for round IBC containers, Type G-IBC/R 1000, Part No. 40.00.01.82, Detail: Base Construction

Racks for IBC containers
type G-IBC

Rack for the storage of IBC containers

Various designs depending on IBC container size
Very robust, open frame construction made of stainless steel
Upper profile frame made from 80/60/3 square tube
Very stable, hygienic stacking corners - easy to clean
Substructure made of 40/40/2 square tube and 40/40/4 reinforcement bracket
Support legs made of square tube 60/60/3 with height-adjustable machine feet
Optionally with collection/storage drawer for drip-free decanting and clean work areas
Optionally available with spring mechanism as a residue emptier
Optionally available with separate storage area for on-site dosing pump
Load capacity depends on the IBC container
Additional equipment details depend on the type

Type	Version	Loading capacity	Dimensions W x D x H in mm	Art.-No. Please mark	PDF
G-IBC 120/80	Without residual emptying, pull-out and drip tray	1.000 kg	1250 x 850 x 800 mm	40.00.01.7040000170	40.00.01.70
G-IBC 120/80 A	Without residual emptying \| Including pull-out and drip tray	1.000 kg	1250 x 850 x 800 mm	40.00.01.7140000171	40.00.01.71
G-IBC 120/100	Without residual emptying, pull-out and drip tray	1.500 kg	1250 x 1050 x 800 mm	40.00.01.7240000172	40.00.01.72
G-IBC 120/100 A	Without residual emptying \| Including pull-out and drip tray	1.500 kg	1250 x 1050 x 800 mm	40.00.01.7340000173	40.00.01.73
G-IBC/R 1000	Without residual emptying, pull-out and drip tray	1.500 kg	800 x 800 x H 800/ 830 mm	40.00.01.8240000182	40.00.01.82
G-IBC 120/80 R	Including residual emptying \| without pull-out and drip tray	1.000 kg	850 x 1250 x H 800 mm	40.00.01.8340000183	40.00.01.83
G-IBC 120/80 RA	Including residual emptying and pull-out \| without drip-tray	1.000 kg	850 x 1250 x H 800 mm	40.00.01.8440000184	40.00.01.84
G-IBC 120/100 R	Including residual emptying \| without pull-out and drip tray	1.500 kg	1050 x 1250 x H 800 mm	40.00.01.8540000185	40.00.01.85
G-IBC 120/100 RA	Including residual emptying and pull-out \| without drip tray	1.500 kg	1050 x 1250 x H 800 mm	40.00.01.8640000186	40.00.01.86
Special dimensions				00.00.00.1000000010

Description
Technical Data

Note: The selection of options and dimensions depends on the IBC type, medium and process requirements (e.g. hygiene, cleanability, occupational safety). We will be happy to assist you with the design for your application.

Material

Stainless steel 1.4301

Surface of stainless steel sheet: Ground, grit 320
Surface of stainless steel profiles: Brushed

Product description

Our stainless steel IBC racks provide a stable, hygienic and space-saving base for storing, dosing and emptying liquids and media. Available in various dimensions, they are suitable for standard IBC formats and fit seamlessly into production and filling processes.

Advantages at a glance

Hygienic & durable: Stainless steel, corrosion-resistant and easy to clean - ideal for sensitive areas.
Clean processes: Optional drip drawer keeps work areas clean and reduces re-cleaning.
Minimise material losses: Optional residual emptying with spring mechanism enables virtually residue-free emptying in conjunction with the rack.
Efficient handling:Storage area for on-site dosing pump ensures short distances, tidy installation and safe working.
Flexible use: Various sizes for different IBC types and space situations.

Options

Residual emptying (spring mechanism) for maximum usability of the medium
Drip drawer for controlled collection of residual quantities
Storage area for the customer's dosing pump

Typical applications

Dosing, transferring and preparing media directly at the IBC
Clean emptying in production, filling or cleaning processes
Intermediate buffering and controlled feeding of systems

Suitable industries

Food and beverage industry (e.g. flavours, syrups, cleaning media)
Pharma & biotech (auxiliary and operating materials, cleaning media)
Cosmetics & care (emulsions, surfactants, fragrances)
Chemical industry (non-corrosive/compatible media according to material release)
Pet food & pet food, cleaning/hygiene technology, water/waste water treatment

Additional equipment details depend on the type

G-IBC/R 1000 (40.00.01.82)

Designed to hold round IBC containers with a capacity of 1,000 liters and a diameter of 1,000 mm
Leg spacing of 780 x 780 mm (outside to outside) with a leg diameter of 80 mm
Upper square tube frame 80/60/3 with very sturdy, open anti-slip corners
Substructure made of 40/40/2 square tubing and 40/40/4 reinforcing angles
4 sturdy legs made of 60/60/3 square tubing profiles with height-adjustable, hygienic-design machine feet

Technical Data

Weight	ca. 111 kg (without pull-out tray)/ ca. 122 kg (with pull-out tray)
Loading capacity	50 kg (pull-out and drip tray)
