Equipment washer

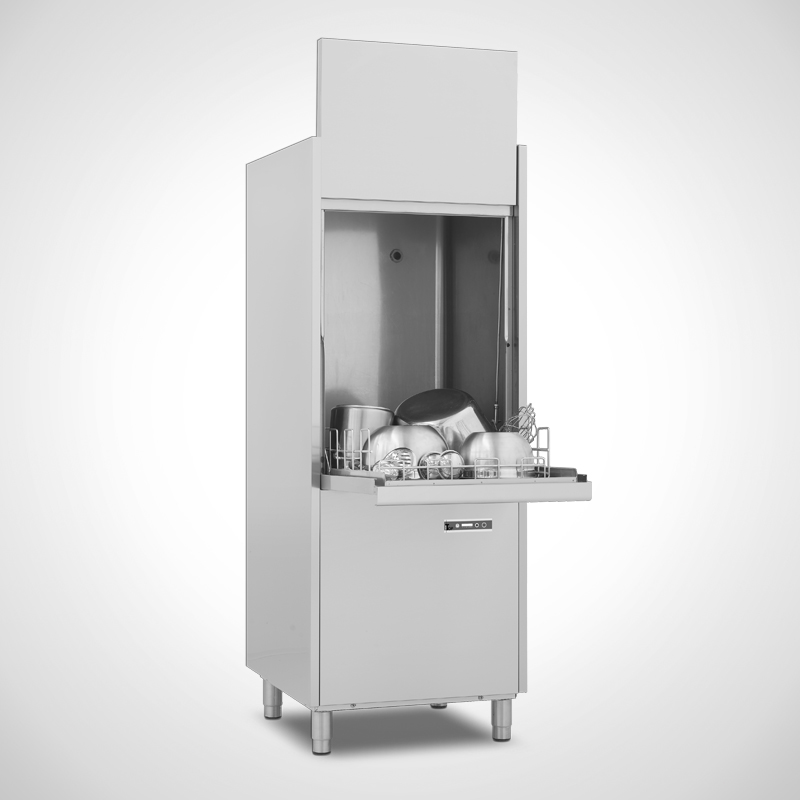

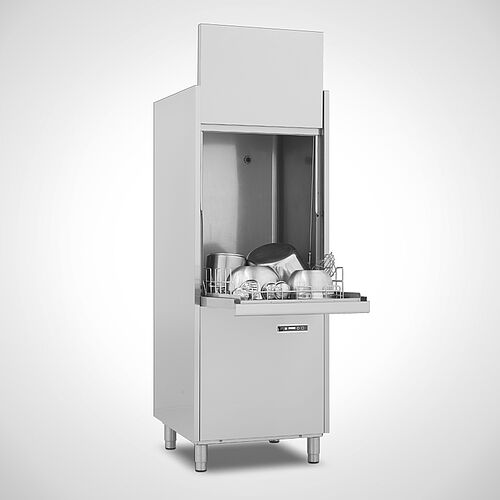

Type TT 32-23 D.5
Front-door washing machine for basket size (56 x 63 cm).
Insertion height of max. 85 cm
For cleaning of equipment, euronorm trays, pots and also sheets
- 2 versions: with or without recuperator
- Operation via 4 soft-touch buttons
- Color LCD display
- Graphic programming progress display
- USB interfaces on the main and display board
(enables easy software update) - Self-cleaning program
- Special program for dried items
- Double-walled housing including door
- Dosing peristaltic pumps for detergent and rinse aid
- Incl. Inlet and outlet hose
- Built-in drain pump Incl.
- 1 stainless steel basket 550 x 610 mm
- Wash tank filter, separate spray arms for rinsing
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
0
1211
559
8
Show Lightbox Compare Comparedata
Material
Partially made of stainless steel
Options
- Commissioning and instruction, item no. 99.99.99.97
- Water softener Double 20, item no. 11.10.03.51
- Bypass for Double 20, item no. 11.10.03.52
- Suction lance with ball check valve, item no. 11.10.03.53
- Stainless steel insert for GN 1/1, 100, 150, 200 mm, item no. 11.10.03.54
- Stainless steel insert for GN 1/1, 100 mm, item no. 11.10.03.55
- Maintenance contract on request
Technical Data
| Power supply | 3 x 400 V/N/PE; 50 Hz, 20 A |
|---|---|
| Performance | 10,5 kW |
| Water consumption | 7 l / basket |
| Heater | Boiler 6 kW, Tank 3 kW |
| Tank capacity | 37 Ltr. |
| Wash pump | 1,5 kW |
| Rinse pump | 0,2 kW |
| Basket size | 560 x 630 mm |
| Maximum power | 30 baskets/h |
| Boiler volume | 12 Ltr. |
| Packaging gross weight | ca. 185 kg |
| Packaging dimensions (w x d x h) | 900 x 900 x 2000 mm |
| Packaging volume | 1,55 m³ |
