Platform transport trolley

Platform transport trolley

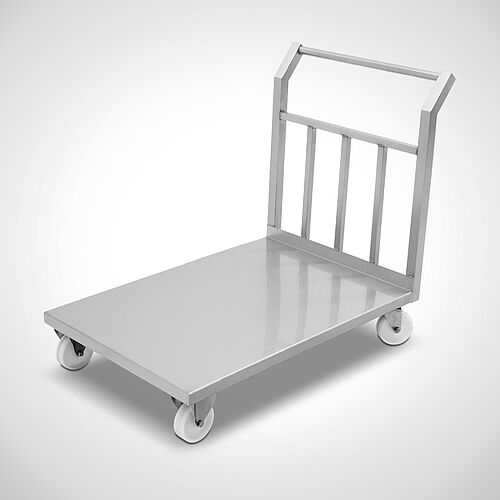

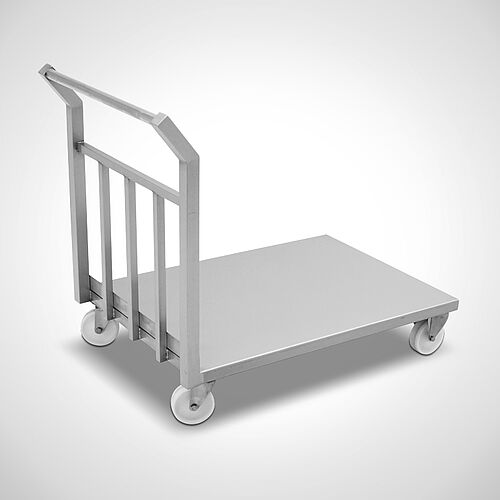

Transport trolley Type TWV-EG, art. no. 49.00.01.50 Transport trolley Type TWV-EG, art. no. 49.00.01.50
Transport trolley Type TWV-EG, art. no. 49.00.01.50 Transport trolley Type TWV-EG, art. no. 49.00.01.50

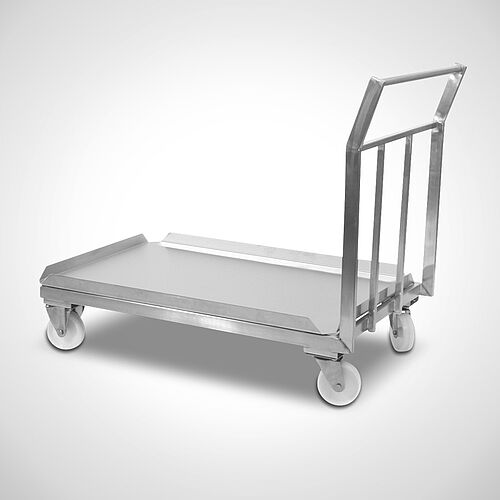

Transport trolley Type TWV-EA, art. no. 49.00.01.51 Transport trolley Type TWV-EA, art. no. 49.00.01.51

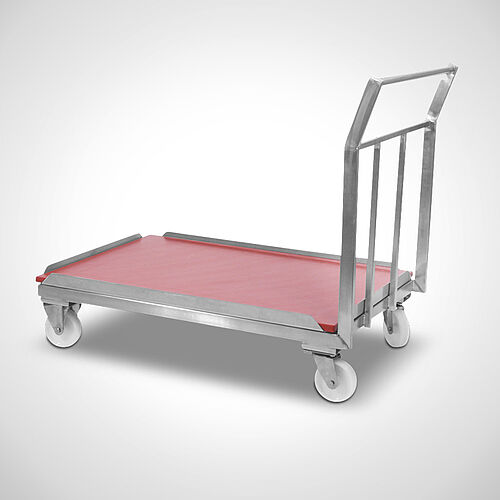

Transport trolley Type TWV-KA, art. no. 49.00.01.53Transport trolley Type TWV-KA, art. no. 49.00.01.53

Transport trolley
Type TWV

The "solids" for transport of high loadings

  • Frame and handle made of solid tubular-frame construction
  • Load platform optional made of stainless steel or plastic (HDPE 500)
  • Loading capacity: 400 kg
  • Load platform: W 700 x D 1000mm
  • Optionally with or without platform upstand
  • Ergonomic push-handle
  • 2 steering and 2 trestle rolls, Ø125mm with stainless steel casing

TypeDesign load platformLoad platform
w x d in mm		Dimensions
W x D x H in mm		PDF
TWV-EGStainless steel, folded-down700 x 1000700 x 1100 x 93049.00.01.50
TWV-EAStainless steel, upstand700 x 1000704 x 1100 x 93049.00.01.51
TWV-KGPlastic, folded-down700 x 1000700 x 1100 x 93049.00.01.52
TWV-KAPlastic, upstand700 x 1000704 x 1100 x 93049.00.01.53
Special dimensions
Steering roll with lockable castor 99900081
Writing tablet (mounted on handle) 43000099
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Other dimensions and executions on request.



Material

Made of stainless steel 1.4301



Options

  • Steering roller with lockable castor, Article-No: 99.90.00.81
  • Writing tablet (mounted on handle), Article-No: 43.00.00.99



Reference Photos

Transport trolley made of stainless steel with perforated loading area Type TWV-EG-SON GELOCHT, ID 22-60328
Transport trolley made of stainless steel with perforated loading area Type TWV-EG-SON GELOCHT, ID 22-60328
