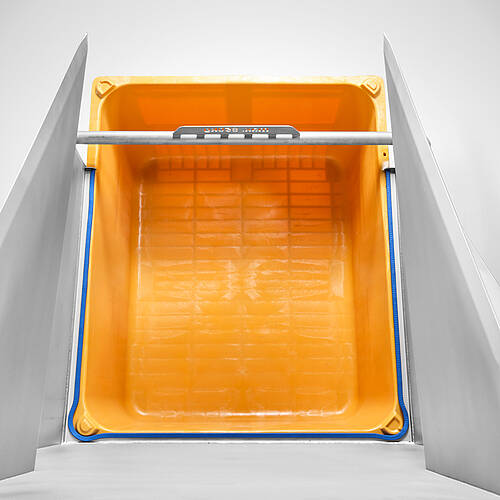

Swing-Loader
Type SL-GB-G 1000

For quick and safety emptying of big plastic boxes
  • Stationary version with height-adjustable stainless steel feet with flange.
  • Holder suitable for containers up to max. L 1200 x W 1000 x H 800 mm
  • Containers are fed in or loaded straight from the rear
  • Depending on the type, emptying takes place via the longitudal side or narrow side
  • With lateral container infeed (right or left) including safety fence
  • Tilting height optionally from 1000 mm to 1500 mm depending on type
  • Electro-hydraulic drive with food-grade oil (attached at the bottom)
  • Integrated chute for exact emptying, chute width: 800 mm
  • Double-acting cylinder (AUF+AB controlled)
  • Maximum load capacity 650 kg (including container) - optional 1000 kg possible

TypeVersionTilt height in mmDimensions
W x D x H in mm		PDF
Container emptying via longitudinal side
SL-GB-GL 1000/1000 Container emptying via longitudinal side1000 mm2150 x 1720 x 174018.00.41.00
SL-GB-GL 1000/1100 Container emptying via longitudinal side1100 mm2150 x 1720 x 184018.00.41.03
SL-GB-GL 1000/1200 Container emptying via longitudinal side1200 mm2150 x 1720 x 194018.00.41.06
SL-GB-GL 1000/1300 Container emptying via longitudinal side1300 mm2150 x 1720 x 204018.00.41.09
SL-GB-GL 1000/1400 Container emptying via longitudinal side1400 mm2150 x 1720 x 214018.00.41.12
SL-GB-GL 1000/1500 Container emptying via longitudinal side1500 mm2150 x 1720 x 224018.00.41.15
SL-GB-GL 1000/1600 Container emptying via longitudinal side1600 mm2150 x 1720 x 234018.00.41.85
SL-GB-GL 1000/1700 Container emptying via longitudinal side1700 mm2150 x 1720 x 244018.00.41.86
SL-GB-GL 1000/1800 Container emptying via longitudinal side1800 mm2150 x 1720 x 254018.00.41.87
SL-GB-GL 1000/1900 Container emptying via longitudinal side1900 mm2150 x 1720 x 264018.00.41.88
SL-GB-GL 1000/2000 Container emptying via longitudinal side2000 mm2150 x 1720 x 274018.00.41.89
Container emptying via the narrow side
SL-GB-GS 1000/1000 Container emptying via the narrow side1000 mm1950 x 1920 x 174018.00.41.18
SL-GB-GS 1000/1100 Container emptying via the narrow side1100 mm1950 x 1920 x 184018.00.41.21
SL-GB-GS 1000/1200 Container emptying via the narrow side1200 mm1950 x 1920 x 194018.00.41.24
SL-GB-GS 1000/1300 Container emptying via the narrow side1300 mm1950 x 1920 x 204018.00.41.27
SL-GB-GS 1000/1400 Container emptying via the narrow side1400 mm1950 x 1920 x 214018.00.41.30
SL-GB-GS 1000/1500 Container emptying via the narrow side1500 mm1950 x 1920 x 224018.00.41.33
SL-GB-GS 1000/1600 Container emptying via the narrow side1600 mm1950 x 1920 x 234018.00.41.80
SL-GB-GS 1000/1700 Container emptying via the narrow side1700 mm1950 x 1920 x 244018.00.41.81
SL-GB-GS 1000/1800 Container emptying via the narrow side1800 mm1950 x 1920 x 254018.00.41.82
SL-GB-GS 1000/1900 Container emptying via the narrow side1900 mm1950 x 1920 x 264018.00.41.83
SL-GB-GS 1000/2000 Container emptying via the narrow side2000 mm1950 x 1920 x 274018.00.41.84
Special dimensions
Hygienic design switch cabinet, mounted on the left-hand side  18004090
Chassis for Swing-Loader Type FG-SL-GB  18004140
Set-up spindle for jack up the chassis Type AFSP 18004141
Running rail Type FS-SL-GB (item no. 18.00.41.40 is additionally required!) 18004142
Dense chute for emptying liquids Type DS-SL-GB 18004143
Double hopper chute for emptying a large box into 2 standard trolleys type DTS-SL-GB  18004144
Collecting channel for liquids with side drain Type AR-SL-GB 18001345
Tumbler chute Type TS-SL-GB 18004146
Tumbler chute with safety gear Type TSF-SL-GB 18004147
Special chute according to customer requirements  18004136
Support for standard trolleys Type AHB-SL-GB  18004148
Holder for Octabin container Type AOB-SL-GB 18004149
Fork mount for large mobile containers Type GA-SL-GB 18004150
Variable container height adjustment Type VBH-SL-GB 18004155
Increase in load capacity from 650 kg to 1000 kg (cylinder Ø 63 mm) 18004198
Adjustment of the tilt angle according to customer requirements ( ____ ?) Type AKW-SL-GB 18004153
Safety barrier 2-sided light grid Type AL-SL-GB18004154
Safety barrier 3-sided door solution Type AT-SL-GB18004155
Rechargeable battery operation, 12V battery type BBT-SL  18004199
Stainless steel oil tank Type ÖT-SL-GB 18004156
TK version down to -28°C Type TK-SL-GB 18004157
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Nearly complete made of stainless steel 1.4301, microplasted stainless steel surface

Frame and swing arm are completely made of stainless steel.

The following parts are not made of stainless steel: hydraulic unit, oil tank, hoses, control panel (plastic), small parts.



Description

The design is determined by the type and viscosity of the bulk material and, if necessary, extended by special chutes and hoppers. This means that the swing loaders can be adapted for almost any application.



Advantages

  • Manufactured according to CE standard, EU-compliant
  • Robust industrial design guarantees long service life
  • Maintenance-free plastic bearings
    • No maintenance required
    • No need for lubricant
  • Hose rupture safety valve
    • no uncontrolled lowering
    • increased safety



Option

  • Electro-hydraulic drive (above mounted), Advantage:more safety when cleaning with low-pressure cleaning devices

Technical Data

Hydraulic motor1,5 kW
Power supply3x 400 V; 50 Hz (incl. 5m connection cable without plug)
Performance5-6 strokes per h
Fusing16A (on site)
Protection classIP 65
Control voltage24 V DC
Operating temperaturmin. 4°C up to max. 40° C
Loading capacity650 kg (incl. container resp. big box)
Tilt angle120°
Lifting time per emptyingca. 25-30 sec.

Reference Photos

Swing loader for large boxes with special chute for feeding lifting and loading trolleys (standard trolleys)
Swing loader type SL-GB-GL-1000-1200 for large boxes with double funnel chute for standard trolleys (optional) and holder for standard trolleys (optional), Id-No. 24-62278
Swing loader type SL-GB-GL-1000-1200 for large boxes with double funnel chute for standard trolleys (optional) and holder for standard trolleys (optional), Id-No. 24-62278
Swing loader type SL-GB-GL-1000-1200 for large boxes with double funnel chute for standard trolleys (optional) and holder for standard trolleys (optional), Id-No. 24-62278
Swing loader type SL-GB-GL-1000-1200 for large boxes with double funnel chute for standard trolleys (optional) and holder for standard trolleys (optional), Id-No. 24-62278
Swing loader type SL-GB-GL-1000-1200 for large boxes with double funnel chute for standard trolleys (optional) and holder for standard trolleys (optional), Id-No. 24-62278
Swing loader type SL-GB-GL-1000-1200 for large boxes with double funnel chute for standard trolleys (optional) and holder for standard trolleys (optional), Id-No. 24-62278
Swing loader type SL-GB-GL-1000-1200 for large boxes with double funnel chute for standard trolleys (optional) and holder for standard trolleys (optional), Id-No. 24-62278
Swing loader type SL-GB-GL-1000-1200 for large boxes with double funnel chute for standard trolleys (optional) and holder for standard trolleys (optional), Id-No. 24-62278
Swing loader type SL-GB-GL-1000-1200 for large boxes with double funnel chute for standard trolleys (optional) and holder for standard trolleys (optional), Id-No. 24-62278
Swing loader type SL-GB-GL-1000-1200 for large boxes with double funnel chute for standard trolleys (optional) and holder for standard trolleys (optional), Id-No. 24-62278
Swing loader type SL-GB-GL-1000-1200 for large boxes with double funnel chute for standard trolleys (optional) and holder for standard trolleys (optional), Id-No. 24-62278

Video

Swing Loader Type SL-SON 1000 kg for emptying large boxes in standard trolleys according to DIN9797
Swing Loader Type SL-SON 1000 kg for emptying large boxes in standard trolleys according to DIN9797

Loading capacity

Maximum loading capacity 1000 kg (incl. big box)

Control panel

Robust, clearly arranged control panel.

Cylinder

Double-acting cylinder (UP+DOWN controlled)

Robust design

Frame and swing arm completely made of stainless steel.

Option

Buffer chute for extension.
Guarantee loss-free emptying.
