Internal space: 132x70x H 85 cm
Internal space: 132x70x H 85 cm

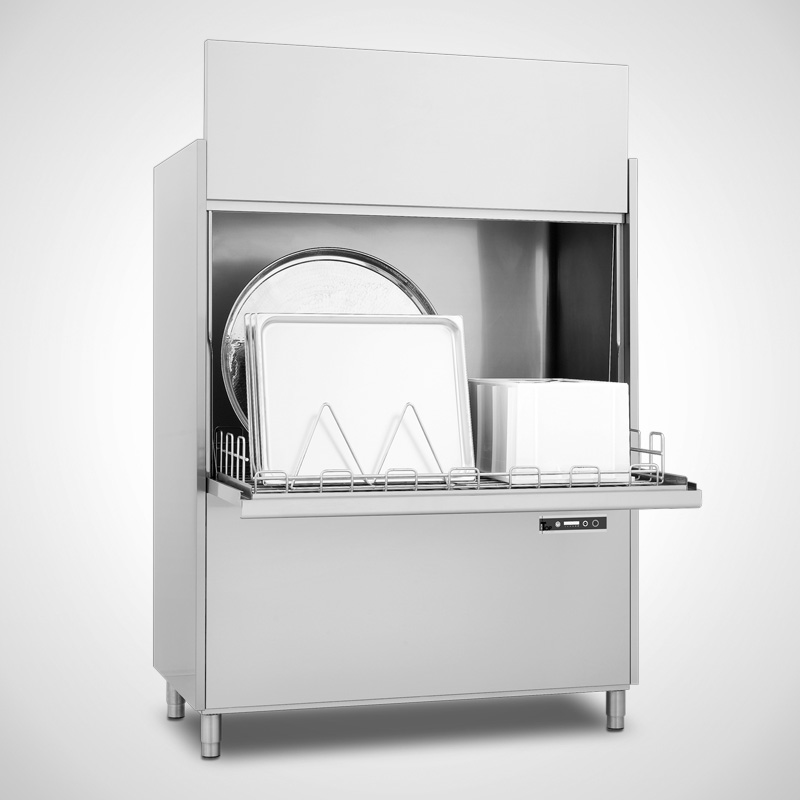

Equipment washer
Type TT 32-23 D.7
Front-door washing machine for basket size (132 x 70 cm)
max. insertion height: 85 cm.
Ideal for confectionary, butcheries, bakeries and catering industries
- 2 versions: with or without recuperator
- Operation via 4 soft-touch buttons
- Color LCD display
- Graphic programming progress display
- USB interfaces on the main and display board
(enables easy software update) - Self-cleaning program
- Special program for dried items
- Double-walled housing including door
- Dosing peristaltic pumps for detergent and rinse aid
- Incl. Inlet and outlet hose
- Built-in drain pump Incl.
- 1 stainless steel basket
- Wash tank filter, separate spray arms for rinsing
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
0
1213
561
Show Lightbox Compare Comparedata
Material
Partially made of stainless steel
Options
- Commissioning and instruction, item no. 99.99.99.97
- Water softener Double 20, item no. 11.10.03.51
- Bypass for Double 20, item no. 11.10.03.52
- Suction lance with ball check valve, item no. 11.10.03.53
- Stainless steel insert for GN 1/1, 100, 150, 200 mm, item no. 11.10.03.54
- Stainless steel insert for GN 1/1, 100 mm, item no. 11.10.03.55
- Maintenance contract on request
Technical Data
| Power supply | 3 x 400 V/N/PE; 50 Hz, 32 A |
|---|---|
| Performance | 15.9 kW |
| Water consumption | 7 l / basket |
| Heater | Boiler 10.5 kW, Tank 10.5 kW |
| Tank capacity | 131 Ltr. |
| Wash pump | 2x 2,7 kW |
| Rinse pump | 2x 0,2 kW |
| Basket size | 1320 x 700 mm |
| Maximum power | 30 baskets/h |
| Boiler volume | 17 Ltr. |
| Packaging gross weight | ca. 350 kg |
| Packaging dimensions (w x d x h) | 1750 x 1100 x 2200 mm |
| Packaging volume | 3,5 m³ |
