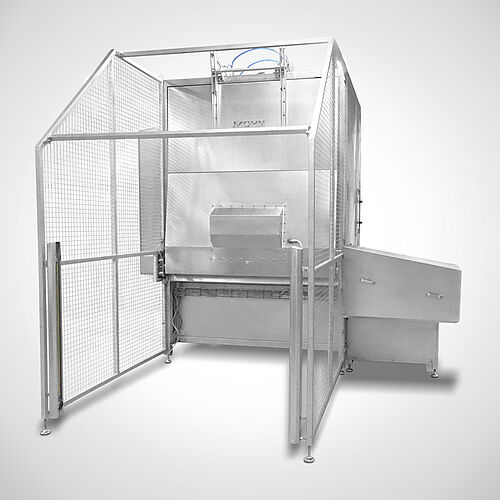

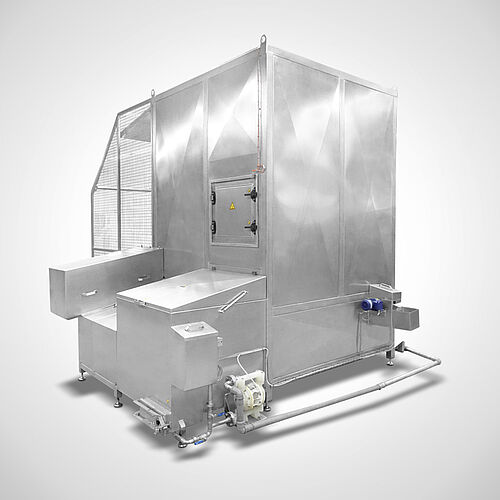

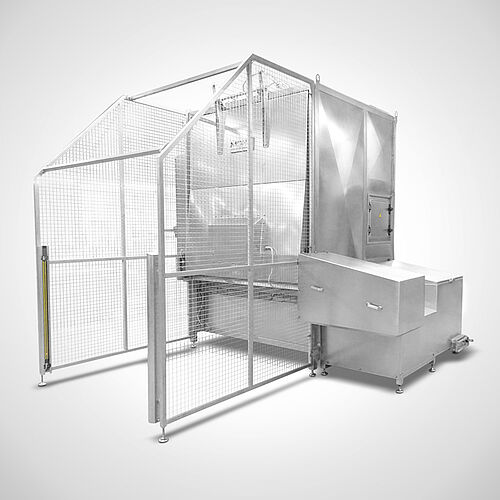

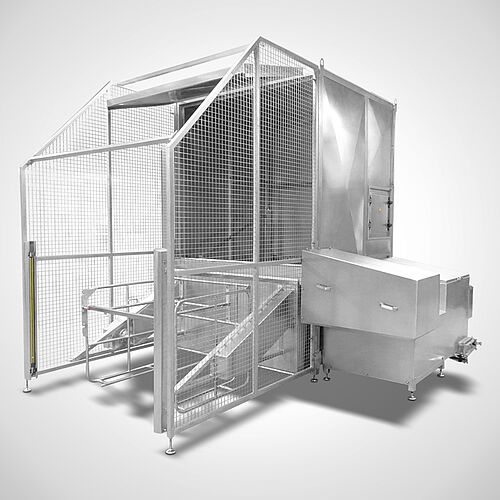

Cabin washing system
Type KWA-Rotar
For optimal cleaning of PALLET BOXES
- Cleaning of 8-15 pallet boxes hourly with normal to strong soiling

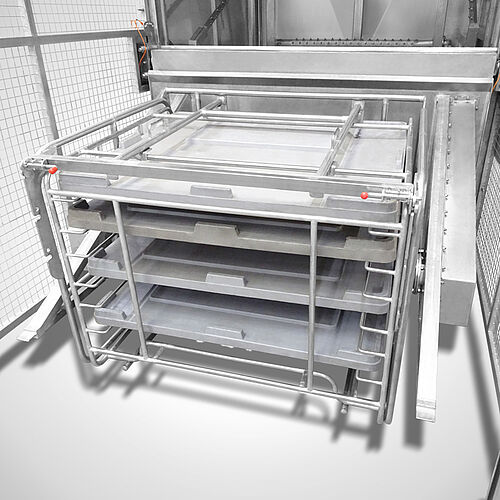

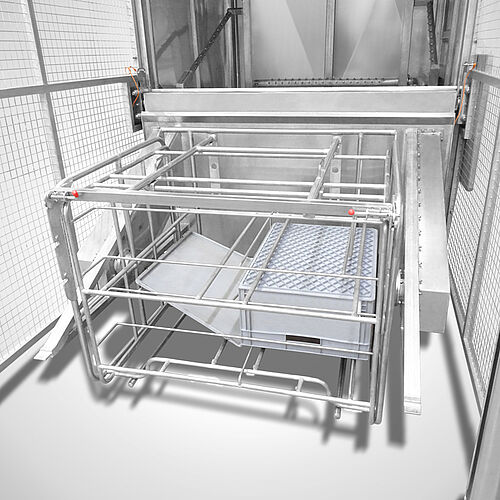

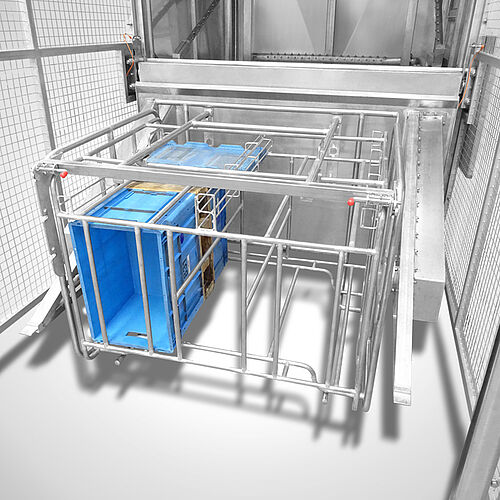

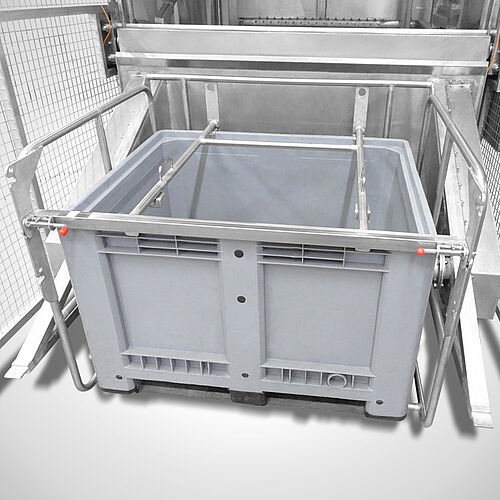

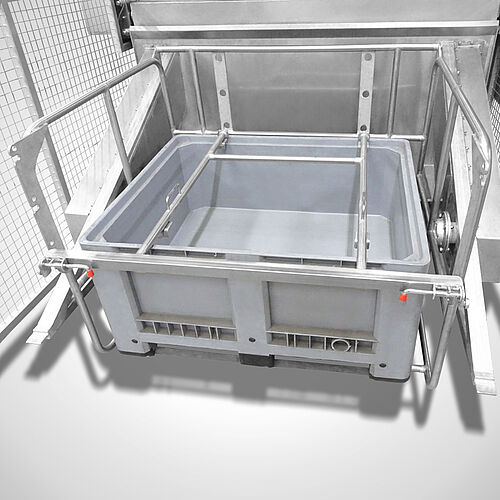

- Due to 180° position of the pallet boxes the cleaning of all sides is possible (also in the area of the the bottom)
- Hedgehog nozzle enables thorough cleaning of the bin interior, nozzle head can be screwed off and is thus easy to clean
- Interior floor with sloped plates above washing tank, washing water is guided from the machine outside into the filter area and from there into the tank.

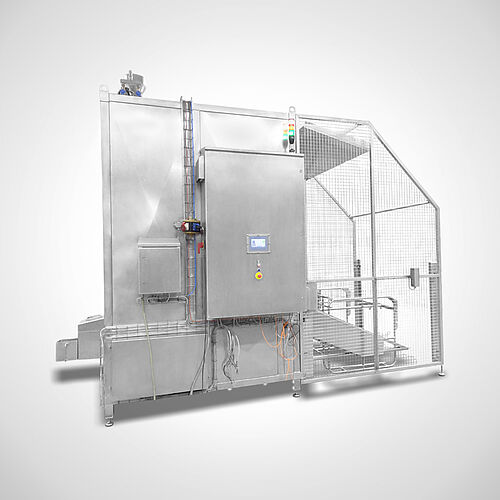

Advantage: No direct soiling in the machine interior, no coarse dirt in the tank - SIEMENS S7-1200 control with SIEMENS touch screen monitor and display of all parameters
- Wash programs with selectable treatment durations (e.g. short, medium, long)
- Large washing tank for taking up large amounts of dirt (e.g. protein soiling)
- Low energy consumption, tank double-wall isolated
- Stable, completely welded machine with massive frame and high material thicknesses
- 2 powerful EDUR stainless steel centrifugal pumps for optimal cleaning
- External cleaning: 1x15 kW, circulation 1,500 l/min at 4 bar wash pressure
- Internal cleaning: 1x15 kW, circulation 1,000 l/min at 6 bar wash pressure
- All gear motors can be easily dismounted via shrink disc connections
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of rustproof stainless steel 1.4301
Description
Due to the cleaning goods rotation with the KWA-Rotar, only a minimal amount of water is discharged outside, the fresh water and cleaning consumption is thereby also lower than with comparable machines of other manufacturers. Due to the cleaning parts coming in at 180° and the steady rotation, excellent washing results are made possible. During the washing and rinsing process, the pallet box continuously rotates around its own axis; only lowest amounts of water remain in the ribbing of the floors.
Dimensions with lateral tank: Width 3530 x depth 5025 x height 3000 mm
Options
- Drum filter for automatic dirt discharge, art. no. 11.10.02.73
- Vapour exhaust 1500 m3/ h at 800 Pa, art. no. 11.10.02.74
- Direct tank heater via steam, art. no.. 11.10.02.75
- Indirect tank heater via steam, art. no. 11.10.02.76
- Tank heater with hot water or thermal oil heat exchanger, art. no.11.10.02.81
- 10 kW electric boiler for heating the flushing water, art. no.11.10.02.77
- 20 kW electric boiler for heating the flushing water, art. no. 11.10.02.79
- Steam heat exchanger to heat the final rinsing water, art. no. 11.10.02.78
- Special support for similar container sizes on request
Technical Data
| Power supply | 3x 400 V/ N/ PE (depending on the equipment) |
|---|---|
| Drain | DN 50 (discharge in bottom drain) |
| Water connection | 3/4“, temp. 10-85° C, min. 3-6 bar |
| Tank capacity | 2000 Ltr. |
| Air connection | 1/2“ |
| Exhaust air | DN 250 |
| Hot water connection (option) | 1 1/4“(for supply and return) |
| Steam connection (option) | 1-6 bar (direct or indirect) |
| Power rating steam heating | 32 kW |
| Power rating electric heating (10 kW) | approx. 50-60 kW (incl. 10 kW flushing boiler) |
| Power rating electric heating (20 kW) | approx. 50-60 kW (incl. 20 kW flushing boiler) |
| Power rating hot water heating | 43 kW |

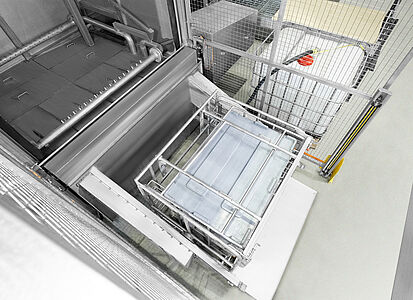

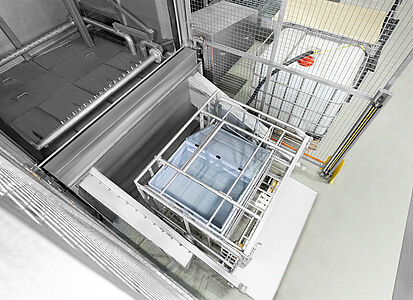

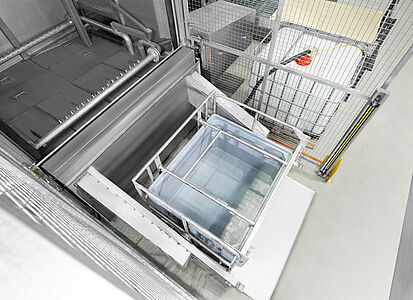

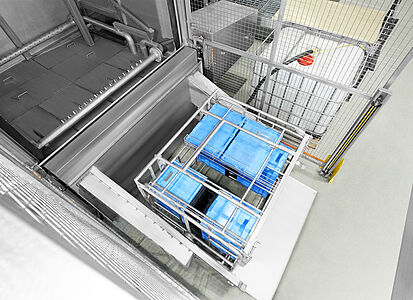

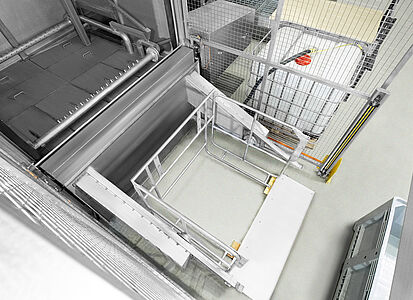

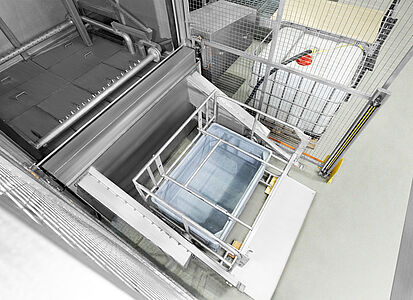

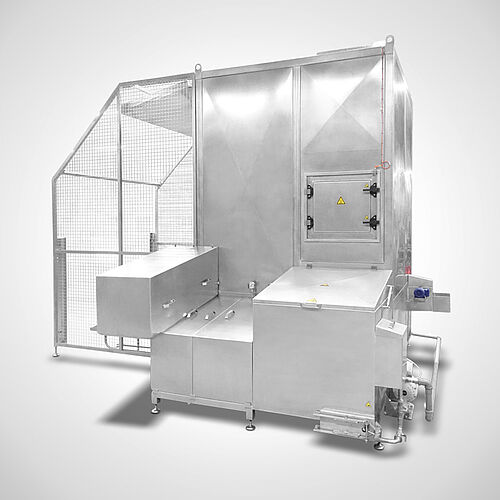

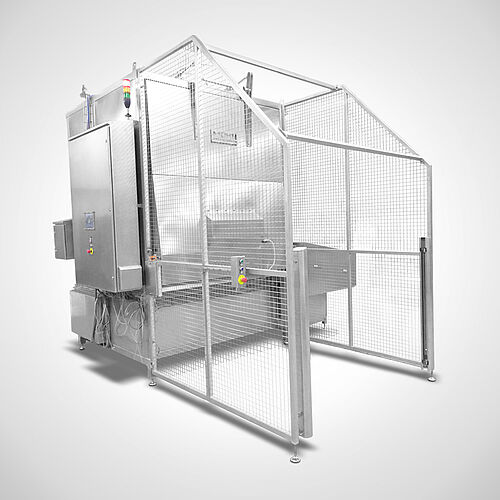

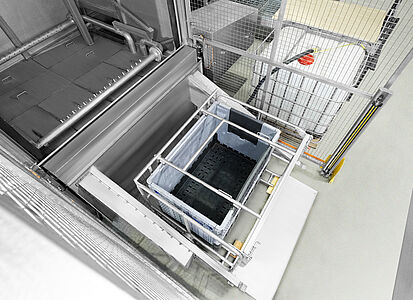

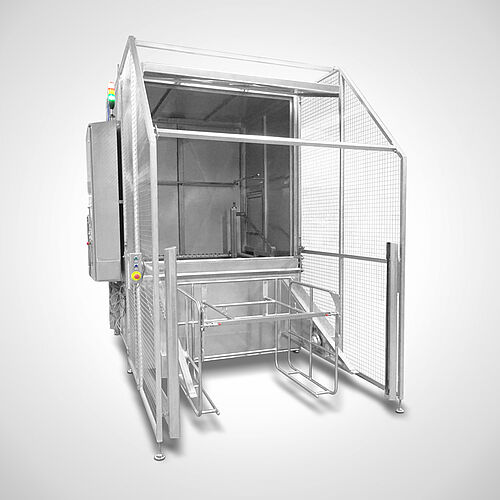

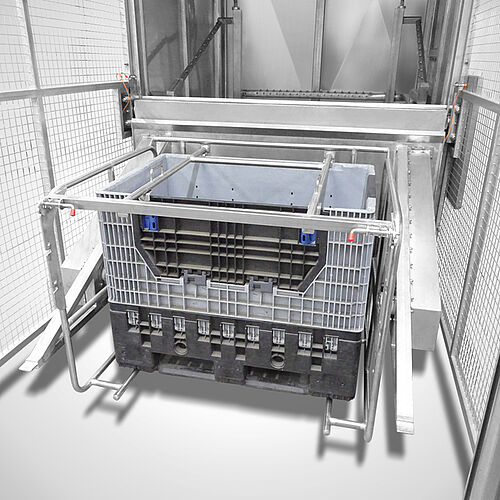

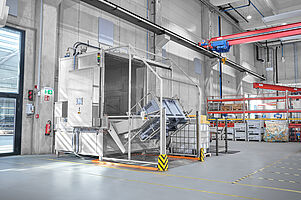

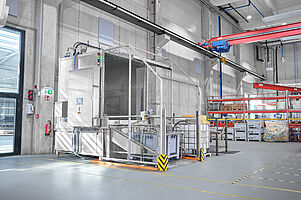

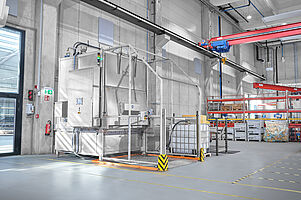

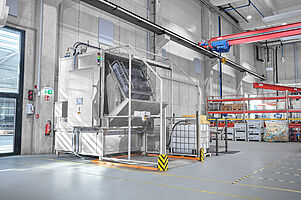

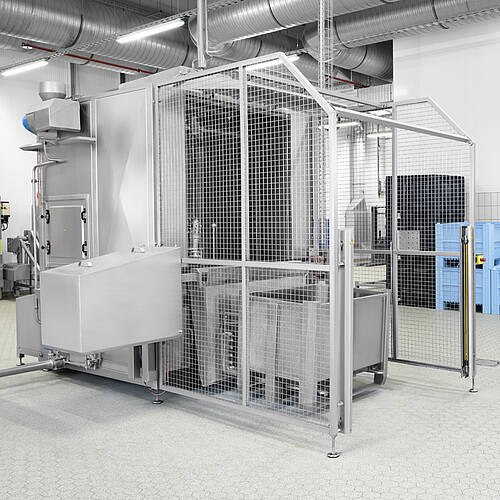

Reference Photos
