High-pressure stab glove cleaner
Type SHR-H
High-pressure glove cleaning for small and medium company sizes

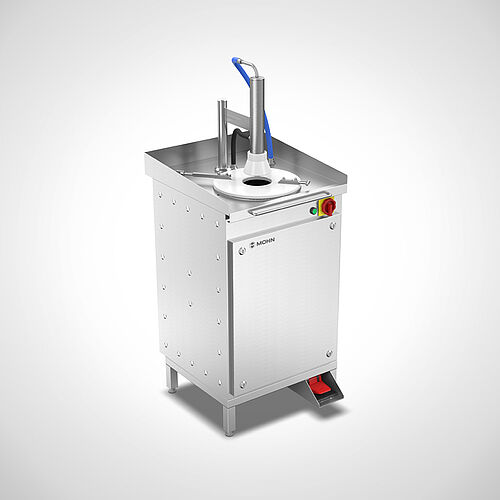

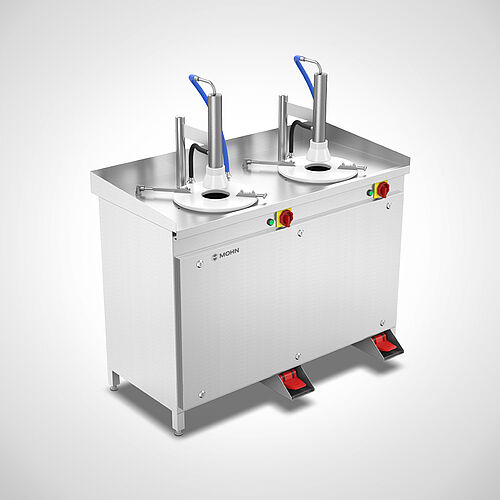

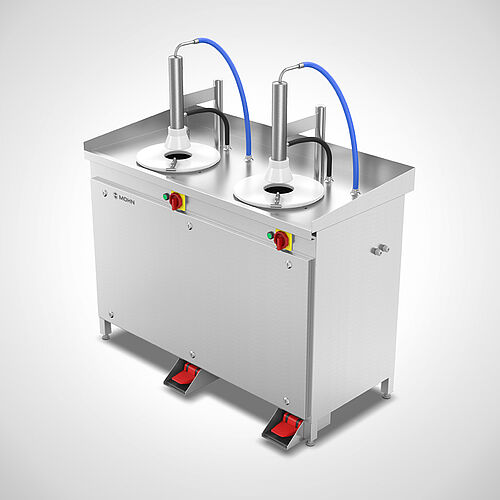

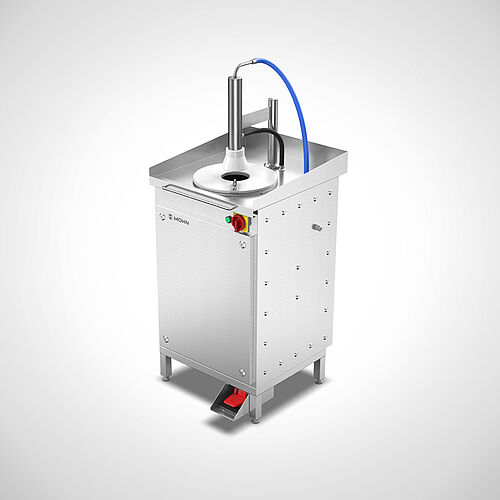

- Available with 1 or 2 cleaning places
- Highly effective cleaning of the stab protection gloves within 10 sec.
- Operation by means of foot pedal; activates high-pressure cleaning (120 bar)
- Rotating high-pressure jet for optimal cleaning results
- Application amount can be set via dosage system
- Hygienically deep-drawn inner container
- Can holder for cleaning agent mounted on the device
- Max. inlet water temperature: 43° C
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of rustproof stainless steel 1.4301
Description
The stab glove cleaning system has been specially designed for the cleaning and disinfection of stab gloves in meat-processing companies.
Even extremely dirty gloves can be completely cleaned of meat and grease residues and disinfected with this new cleaning system in approx. 10-15 seconds, depending on the degree of soiling.
The person cleaning the gloves holds them in a plastic cone and sprays them with water under high pressure. The high-pressure water jet is activated by a handle. Meat residues and fibres are removed from the prick glove and rinsed into the collection container below. Even the dirt in the fingertips is completely removed and thoroughly cleaned.
To optimise the cleaning result, detergent is automatically added to the water via a dosing system. The collection container is equipped with a hinged swivel lid that allows easy access for cleaning and maintenance work. A canister holder for the cleaning agent is mounted on the side of the housing. At the front of the housing is a holder for knife baskets.
The machine is switched on via a selector switch with indicator light.
Technical Data
| Power supply | 3x 400 V, 50/60 Hz |
|---|---|
| Drain | DN 50 (SHR-H-1) | 2x DN 50 (SHR-H-2) |
| Water connection | 3/4" (SHR-H-1) | 2x 3/4" (SHR-H-2) max. 43°C; min. 2,5 bar; min. 15 Ltr./Min. |
| Operating pressure | 80 bar - 20 ltr./min. (SHR-H-1)| 2x 80 bar - 2x 20 ltr./min.(SHR-H-2) |
| Duration of program | 10-15 seconds |
| Power rating | 4,0 kW (SHR-H-1) | ~8,0 kW (SHR-H-2) |
