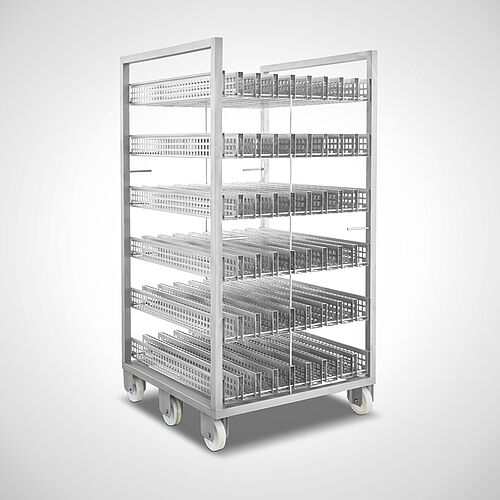

Pasteurisation trolley

Pasteurisation trolley
Type PAW-SON

for space-saving pasteurisation of your sausage specialities

  • Stable frame profile construction 40x40x1,5 mm made of stainless steel
  • Neatly welded and stained frame-construction
  • Number of floors and distance between floors according to customer requirements/ dimensions

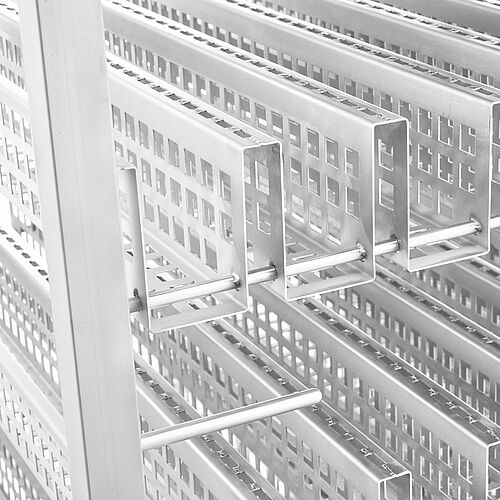

  • Each layer with 9 welded U-shaped supports
  • Supports with square perforation 20 x 20 mm (10 mm web)
  • U-shaped profile - light dimensions W 70 x H 115 mm
  • U-shaped profiles spot-welded together by means of Ø 10 mm round steel bars
  • Capacity approx. 162 VPE (sausage packs)
  • Load: approx. 67.5 kg per tier with a VPE weight of 2.5 kg
  • Each loading side with 2 round steel push handles at ergonomically favourable height
  • Robust wheel-base profile design: 80 x 40 x 2 mm
  • Open wheel housing design, middle pair of wheels increased for tilting moment
  • 6 polyamide fixed castors (D: 150 mm) with plain bearings
  • Wheels designed for temperature load up to 80°C (approx. 90 min.)

TypeLayerFloorsCapacityfloors
distance
Dimensions
W x D x H in mm
PDF
PAW-6E9S9 U-shaped profiles/ layer6 layers27 VPE/Etage280 mm980 x 1000 x 1900ID 21-64433
Special dimensions
Cast iron wheel Type RA-GK 150  93000066
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Pasteurisation Delivery take place without accessories. We manufacture individually according to customer requirements



Material

Made of stainless steel 1.4301, Wheels made of polyamide.



Information

We manufacture pasteurisation trolleys according to your requirements with regard to frame construction, number of floors, floor design, floor space, handles, wheels and dimensions.



Options

  • Closed wheel case
  • Wheels with roll-and ball bearing
  • Floor and ground clearance on request



Advantages

  • Completely made of stainless steel
  • Neatly welded and stained frame-construction
  • Heat resistant
  • Ergonomic

Technical Data

Loading capacity405 kg (gesamt)
