Defrosting trolley "Ecoline"

Defrosting trolley
Type ATW-V "Ecoline"

Standard Defrosting trolley with solid wavy grate

  • Stable frame construction made of stainless steel
  • Cleanly welded and first-class stained
  • Load per level 50 kg
  • Total load max. 500 kg

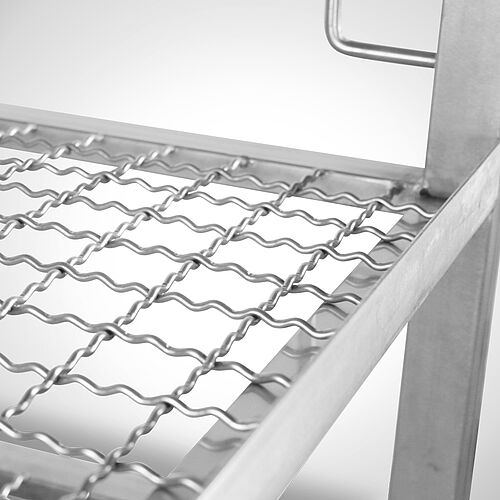

  • With solidly welded grid frames made of wavy grate,
    MW 40 x 40 x 3 mm, frame made of angle profile 30 x 30 x 3 mm
  • Outer supports made of angle profile 40 x 40 x 4mm
  • Wheel carrier made of profile tube 80 x 40 x 2 mm, cross-connectors made of profile tube 40 x 40 x 2 mm

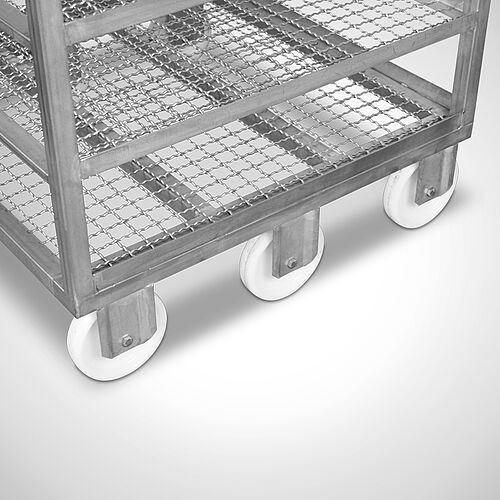

  • 6 polyamide fixed rollers (diameter 150 mm), centre wheel pair elevated for tilting moment
  • Wheels designed for up to 95°C degrees

TypeFloorsfloors
distance
Dimensions
W x D x H in mm
PDF
ATW-V 5E5390 mm1010 x 1006 x 198040.00.10.18
ATW-V 6E6310 mm1010 x 1006 x 198040.00.10.19
ATW-V 7E7250 mm1010 x 1006 x 198040.00.10.20
ATW-V 8E8210 mm1010 x 1006 x 198040.00.10.21
ATW-V 9E9180 mm1010 x 1006 x 198040.00.10.22
ATW-V 10E10160 mm1010 x 1006 x 198040.00.10.23
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

We manufacture defrosting trolleys according to your requirements with regard to frame construction, number of floors, floor design, floor space, handles, wheels and dimensions.



Material

Made of stainless steel 1.4301




Options

  • Closed wheel case
  • Wheels with roll-and ball bearing
  • Floor and ground clearance on request
  • Higher loading capacity on request


Advantages

  • Completely made of stainless steel
  • Proper welded and stained frame-construction
  • Temperature resitant, long-living wheels
