Boot cleaning module Boot-Master type BM-M optionally available for Highline hygiene sluices only, Art. no. 10.00.10.05

Boot cleaning module Boot-Master type BM-M optionally only available for Highline hygiene sluices, Art. no. 10.00.10.05

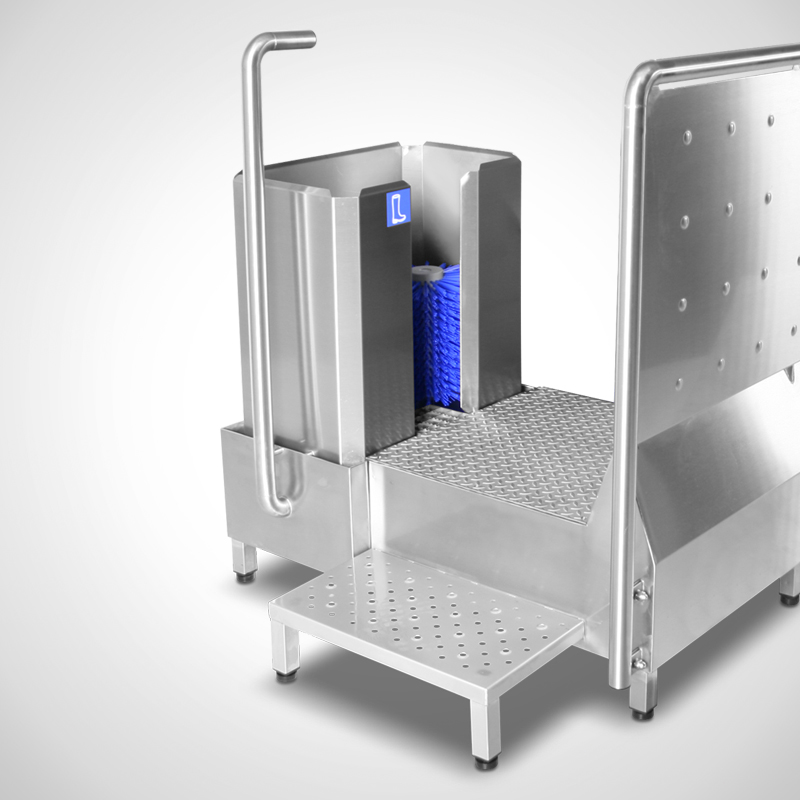

Boot cleaning module Boot-Master
type BM-M

Laterally extendable module for additional boot hygiene

Module for lateral extension of the Highline personnel hygiene stations, e.g. check-in station
Two vertically rotating brush rollers (Ø 280 mm) for cleaning the upper and upper leather
Designed without sole cleaning brush!
Operation via hand switch to start the brush rollers
Integrated dosing system with adjustable addition of cleaning agent

Type	Version	Dimensions W x D x H in mm	Compare	Art.-No. Please mark	PDF
BM-M Highline	2 vertical brush rollers (Ø 260 mm)	865 x 320 x 300	10.00.10.05	10.00.10.0510001005	10.00.10.05

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

Comparedata

Material

Stainless steel: corrosion-resistant, hygienic, easy to clean
Brush rollers made of blue polyester: robust, water-resistant and designed for hygienic use

Description

The Boot-Master boot cleaning module, type BM-M, supplements the hygiene sluices and pass-through sole cleaning systems in the Highline series with targeted cleaning of the boot shafts and upper leather. Two vertically rotating brush rollers with a diameter of 280 mm reliably remove dirt from the outside of the boots, while the sole cleaning remains in the basic machine. The brush rollers can be started conveniently using a manual button, and the cleaning agent is added precisely using an adjustable dosing system.

The module extends the basic machine by 865 mm; when positioned to the side next to the engine compartment, the section grows from 300 mm to 865 mm. For operation, a water connection with a 3/4" ET at a maximum of 43 °C is provided, the drain is via DN 50. The electrical connection is 3 x 400 V with 50/60 Hz and an output of 0.75 kW.

Made of stainless steel, the module boasts hygienic surfaces, easy cleaning and a durable design - ideal for use in environments with high hygiene requirements.

Please note: This boot cleaning module is only available as an extension for the hygiene sluices and pass-through sole cleaning systems in the Highline series.
