Stripe curtain, Type STV-N, art. no. 99.10.00.57 Stripe curtain, Type STV-N, art. no. 99.10.00.57
Stripe curtain, Type STV-N, art. no. 99.10.00.57Stripe curtain, Type STV-N, art. no. 99.10.00.57

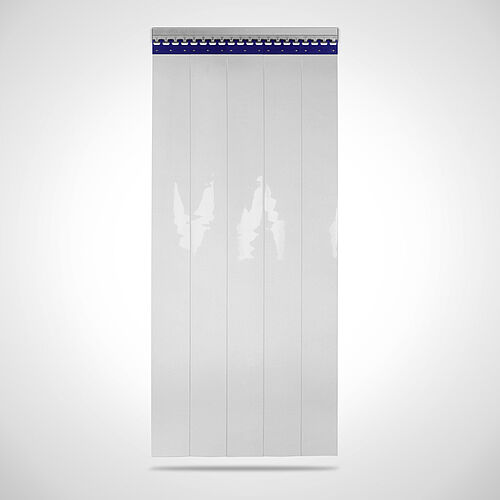

Stripe curtain
Type STV-N

For clear dimensions up to max. W 3000 x H 3000 mm.

  • Stainless steel rail for suspension of PVC stripes
  • Plastic suspensions made of polyethylene
  • PVC-stripes, transparent, 200mm wide
  • Material thickness 2mm
  • Temperature range -20°C up to +60°C resp. -40°C up to +40°C (Type STV-N2)
  • PVC-stripes overlap ca. 25mm, at the edges up to 50mm
  • Plastic suspensions 150 mm wide, at the edges up to 200mm
  • Stainless steel rail for over or under ledge

TypeTemperature
resistance		Dimensions
W x D x H in mm		PDF
STV-N 1-20° bis + 60° CAccording to customer requirements99.10.00.89
STV-N 2-40° bis + 40° CAccording to customer requirements99.10.00.57
Special dimensions
We manufacture individually according to customer requirements


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Dimensions on request. Special sizes on request.



Material

Made of clear PVC



Highlights

  • Mobile suspension
  • Tool-less dismounting of single stripes
  • Optical esthetic design
  • Hygienic design



Description

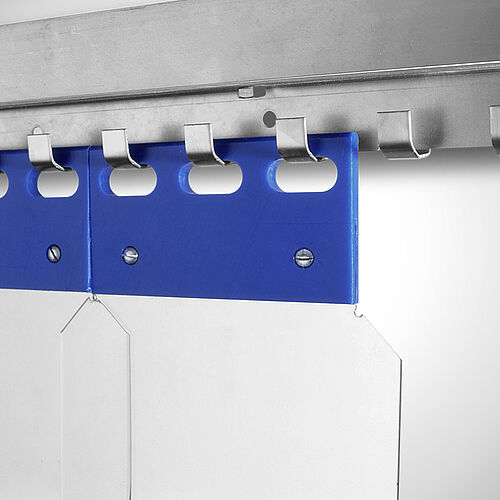

The PVC-stripes will be hanged into a stainless steel rail by means of special plastic suspensions. Thereby slightly damaged parts could be easily changed.
