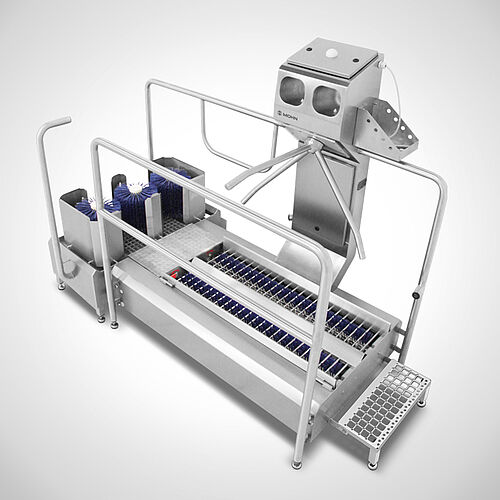

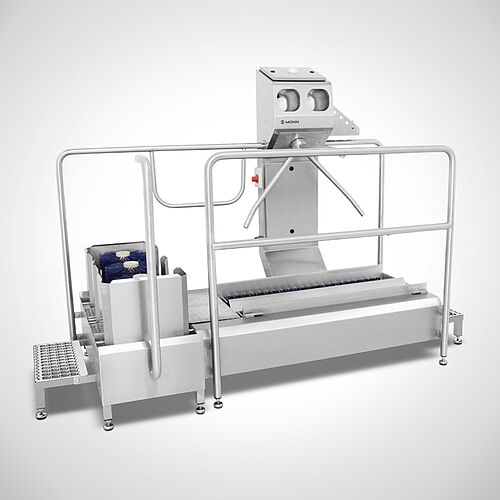

Combiclean-Control "Ecoline"

Hygiene station
Type Combiclean-Control Ecoline

1-lane, forcibly guided disinfection of the soles, boot legs + hands

  • Ecoline version with stable turnstile (2 years guarantee)*
  • Circuit board control, potential-free contact available
  • 2-hand automatic disinfection dispenser including tamper-proof sensorics
  • Design with left-hand or right-hand passage direction available
  • Way back electrically released or always blocked
  • Person separation: Approval after terminated medium application only
  • Sensor-controlled brush roll rotation for both ways
  • Brush rolls removable without tool

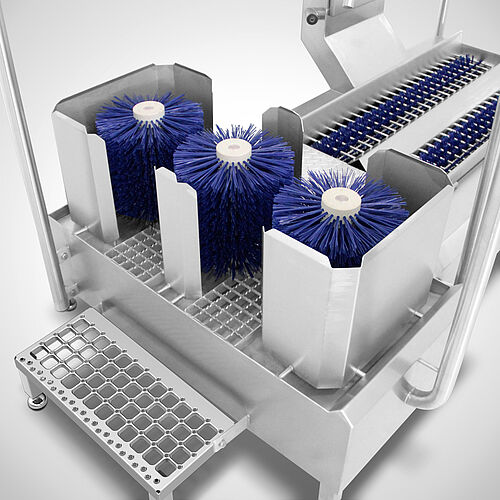

  • Boot cleaning modul for cleaning the boot legs
  • Dosage of the application quantity adjustable
  • 3 vertical bootleg cleaning brushes
  • Including can holder

TypeVersionBrush length Dimensions
W x D x H in mm
ComparePDF
1900-"Right"Pass-through direction: Right to Left700 mm2415 x 1280 x 178511.10.08.6211.10.08.62
1900-"Left"Pass-through direction: Left to Right700 mm2415 x 1280 x 178511.10.08.6311.10.08.63
2300-"Right"Pass-through direction: Right to Left1100 mm2815 x 1280 x 178511.10.08.6411.10.08.64
2300-"Left"Pass-through direction: Left to Right1100 mm2815 x 1280 x 178511.10.08.6511.10.08.65
2700-"Right"Pass-through direction: Right to Left1600 mm3315 x 1280 x 178511.10.08.6611.10.08.66
2700-"Left"Pass-through direction: Left to Right1600 mm3315 x 1280 x 178511.10.08.6711.10.08.67
Special dimensions
Document tray type III (sheet metal)  18000394
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
1179
449
8
Show Lightbox Compare
Comparedata

*for the turnstile mechanism



Material

Made of rustproof stainless steel 1.4301



Passage direction

Hygiene Station - Passage direction

Left to right

Hygiene Station - Passage direction

 Right to left



Options

  • Lateral entry or exit, Article no. 10.00.00.86
  • Document tray, type I (wire mesh), Article no. 18.00.00.92
  • Document tray, type II (sheet metal), Article no. 18.00.00.93
  • Can holder in closed, lockable version on request
  • Can container in closed version on request

Technical Data

Power supply3 x 400 V/N/PE; 50-60 Hz
Performance1,5 kW
Drain2" (DN 50)
Water connection3/4" AG, Mixing water max. 43° C
Fusing16 A
