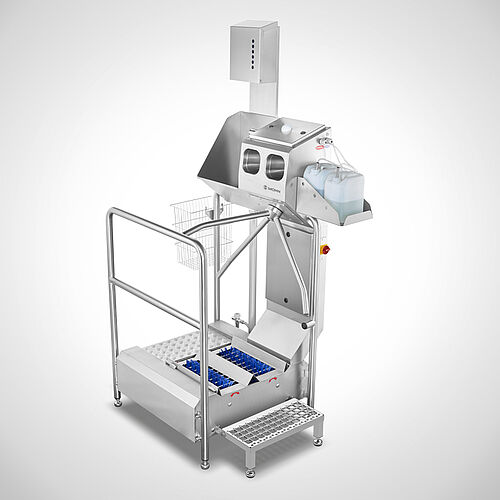

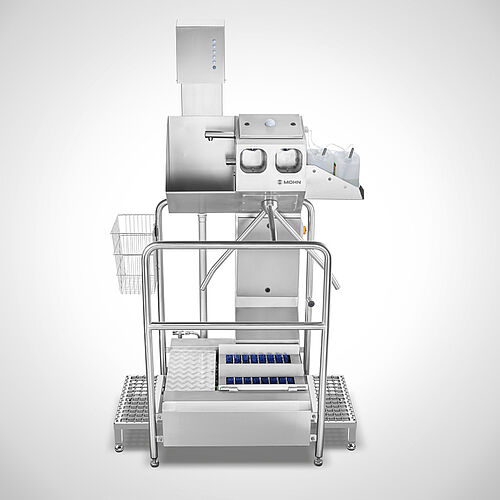

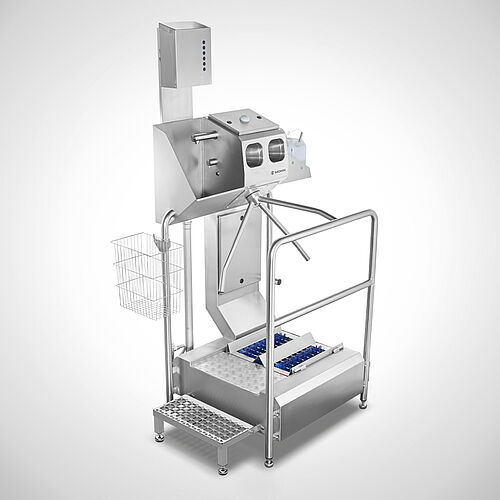

Hygiene Station Type Check-In-Station II-800-Left Ecoline, art. no. 11.10.08.71 Hygiene Station Type Check-In-Station II-800-Left Ecoline, art. no. 11.10.08.71
Hygiene Station Type Check-In-Station II-800-Left Ecoline, art. no. 11.10.08.71 Hygiene Station Type Check-In-Station II-800-Left Ecoline, art. no. 11.10.08.71
Hygiene Station Type Check-In-Station II-800-Left Ecoline, art. no. 11.10.08.71 Hygiene Station Type Check-In-Station II-800-Left Ecoline, art. no. 11.10.08.71

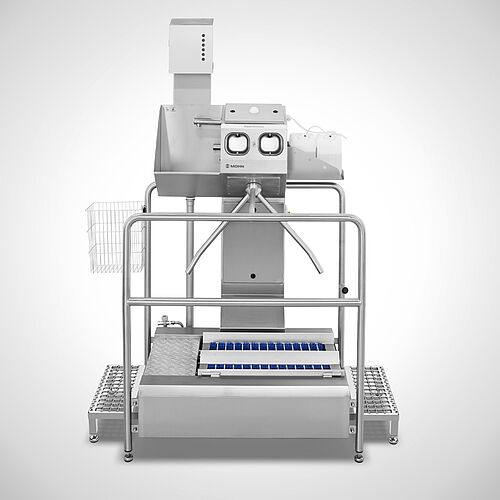

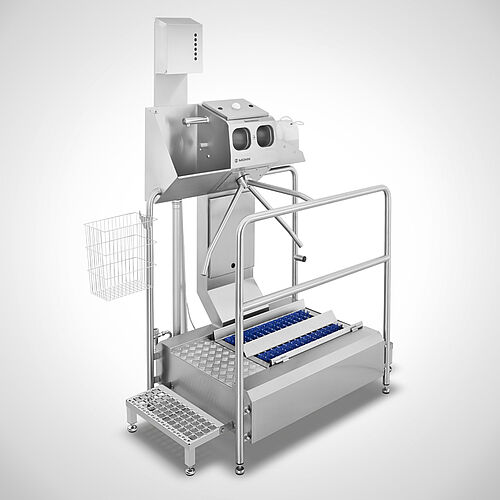

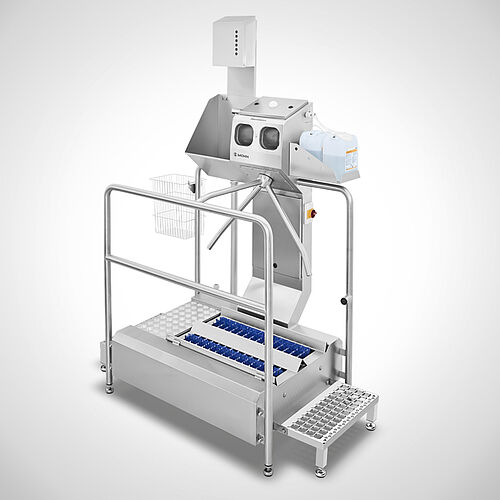

Hygiene Station Type Check-In-Station II-1100-Left Ecoline, art. no. 11.10.08.73 Hygiene Station Type Check-In-Station II-1100-Left Ecoline, art. no. 11.10.08.73
Hygiene Station Type Check-In-Station II-1100-Left Ecoline, art. no. 11.10.08.73 Hygiene Station Type Check-In-Station II-1100-Left Ecoline, art. no. 11.10.08.73
Hygiene Station Type Check-In-Station II-1100-Left Ecoline, art. no. 11.10.08.73 Hygiene Station Type Check-In-Station II-1100-Left Ecoline, art. no. 11.10.08.73

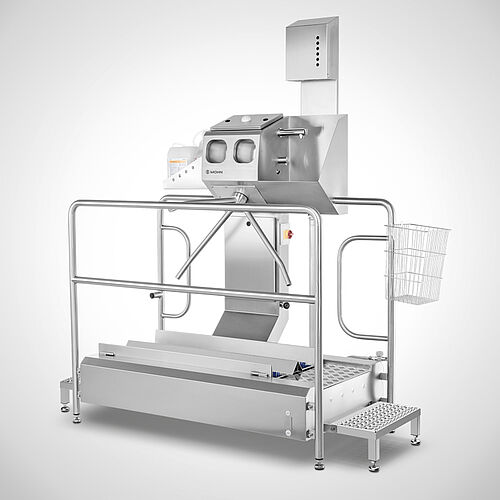

Hygiene Station Type Check-In-Station II-1500-Right Ecoline, art. no. 11.10.08.74 Hygiene Station Type Check-In-Station II-1500-Right Ecoline, art. no. 11.10.08.74

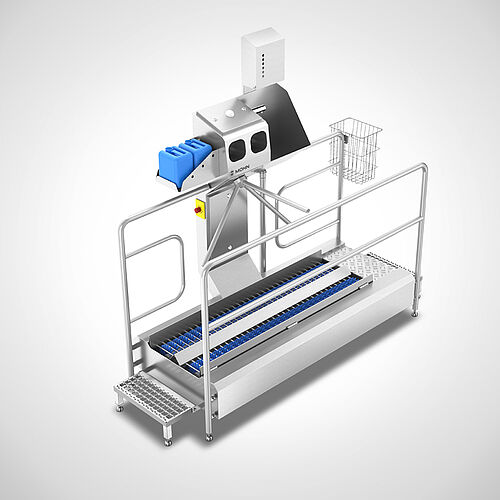

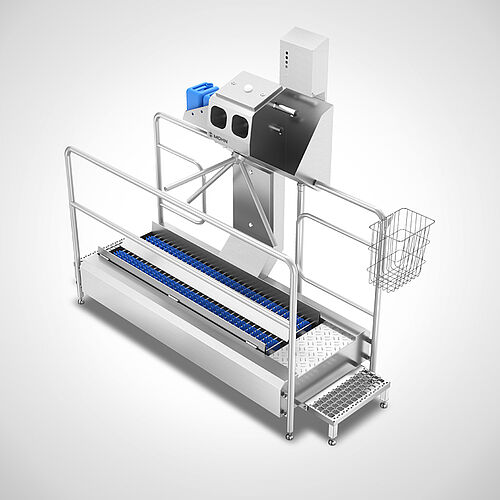

Hygiene Station Type Check-In-Station II-2000-Right Ecoline, art. no. 11.10.08.76 Hygiene Station Type Check-In-Station II-2000-Right Ecoline, art. no. 11.10.08.76
Hygiene Station Type Check-In-Station II-2000-Right Ecoline, art. no. 11.10.08.76 Hygiene Station Type Check-In-Station II-2000-Right Ecoline, art. no. 11.10.08.76

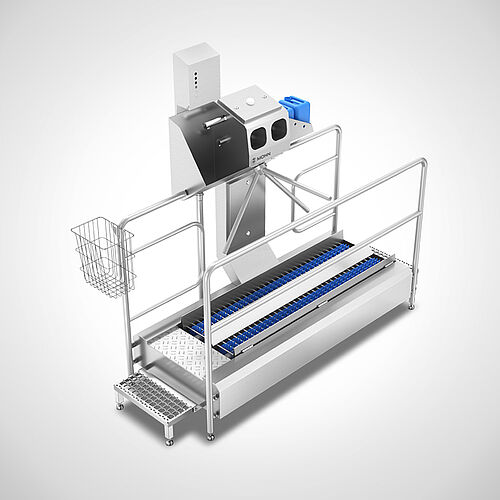

Hygiene Station Type Check-In-Station II-2000-Left Ecoline, art. no. 11.10.08.77 Hygiene Station Type Check-In-Station II-2000-Left Ecoline, art. no. 11.10.08.77
Hygiene Station Type Check-In-Station II-2000-Left Ecoline, art. no. 11.10.08.77 Hygiene Station Type Check-In-Station II-2000-Left Ecoline, art. no. 11.10.08.77

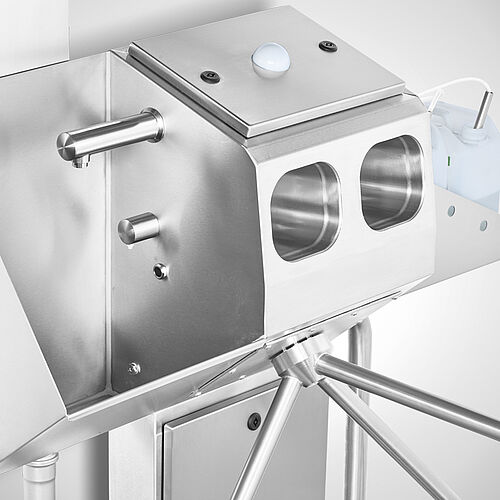

Hygiene Station Type Check-In-Station Ecoline, detail: Handwash basin with contactless fittings for water and soapHygiene Station Type Check-In-Station Ecoline, detail: Handwash basin with contactless fittings for water and soap

Hygiene station
Type Check-In-Station II Ecoline

forcibly guided cleaning and disinfection of the soles + hands

  • Ecoline version with stable turnstile (2 years guarantee)*
  • Circuit board control, potential-free contact available
  • Design with left-hand or right-hand passage direction available
  • Sensor-operated hand basin with integrated soap dispenser
  • Contactless fittings for water and soap
  • Folded paper towel dispenser and wire-mesh waste paper basket (40 litres)
  • 2-hand automatic disinfection dispenser including tamper-proof sensorics
  • Person separation: Approval after terminated medium application only
  • Way back blocked or electrically released
  • Sensor-controlled brush roll rotation for both ways
  • Brush rolls removable without tool
  • Dosage of the application quantity adjustable
  • Multi-LED signal display
  • Also as dry version available (for ex. bakery industry)

TypeVersionBrush length Dimensions
W x D x H in mm		ComparePDF
800-RechtsPass-through direction: Right to Left400 mm1410 x 975 x 178511.10.08.7011.10.08.70
800-LinksPass-through direction: Left to right 400 mm1410 x 975 x 178511.10.08.7111.10.08.71
1100-RechtsPass-through direction: Right to Left 700 mm1710 x 975 x 178511.10.08.7211.10.08.72
1100-LinksPass-through direction: Left to right 700 mm1710 x 975 x 178511.10.08.7311.10.08.73
1500-RechtsPass-through direction: Right to Left 1100 mm2110 x 975 x 178511.10.08.7411.10.08.74
1500-LinksPass-through direction: Left to right 1100 mm2110 x 975 x 178511.10.08.7511.10.08.75
2000-RechtsPass-through direction: Right to Left 1600 mm2610 x 975 x 178511.10.08.7611.10.08.76
2000-LinksPass-through direction: Left to right 1600 mm2610 x 975 x 178511.10.08.7711.10.08.77
Special dimensions
Document tray type III (sheet metal)  18000394
Stainless steel roll box RB-E-O instead of towel dispenser 19000012
Optical empty-can message by multi-LED (Ecoline) 99870034
Lateral entry 10000086
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

1713570817652341713538052
1180
451
8
Show Lightbox Compare
Comparedata

*for the turnstile mechanism



Material

Made of rustproof stainless steel 1.4301







Passage Direction

Hygiene Station - Passage direction
Left to Right

Hygiene Station - Passage direction

Right to Left





Options

  • Stainless steel roll box RB-E-O instead of towel dispenser, Article no. 19.00.00.12
  • Waste paper baskets of 60-100 litres made of wire mesh ( PK-D) or special steel sheet ( PK-E)
  • Document tray, type II (sheet metal), Article no. 18.00.00.93
  • Disinfection bath + drip tray, instead of brush rolls on request
  • Optical empty-can message by multi-LED (Ecoline), Article no. 99.87.00.34
  • Lateral entry, Article no. 10.00.00.86

Technical Data

Power supply3 x 400 V/N/PE; 50-60 Hz
Performance0,6 kW
Drain2" (DN 50)
Water connection3/4" AG, Mixing water max. 43° C
Fusing16 A
