Smoke Stick trolley
Type RSW

For easy and dorsal-protecting transport of smoke sticks

  • Very robust versions made of stainless steel
  • Open or closed versions
  • Equipment lying or standing
  • Loading capacity: 250, 400 or 800 smoke sticks depending on the version
  • Mobile versions with plain bearings or ball bearings
  • Depending on the version with polyamide wheels, Ø 125 mm or Ø 200 mm

TypeCapacityDimensions
W x D x H in mm		PDF
RSW-K 400 pcs. / standing400 x 600 x 71040.00.00.08
RSW-G 800 pcs. / lying600 x 900 x 80040.00.00.18
RSW-C "Caddy"250 pcs. / standing733 x 580 x 105049.00.01.74
Special dimensions
Steering rolls with stops for type RSW-G 39910009
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Made of stainless steel 1.4301



Description



    RSW-C-1 "Caddy":

    • Open design
    • Capacity: approx. 250 smoke sticks
    • Standing storage / transport of smoking sticks
    • Floor panel, perforated
    • Below base plate with 1 stand
    • 2 fixed castors made of polyamide with sliding bearing, Ø 200 mm
    • Drawbar with handle

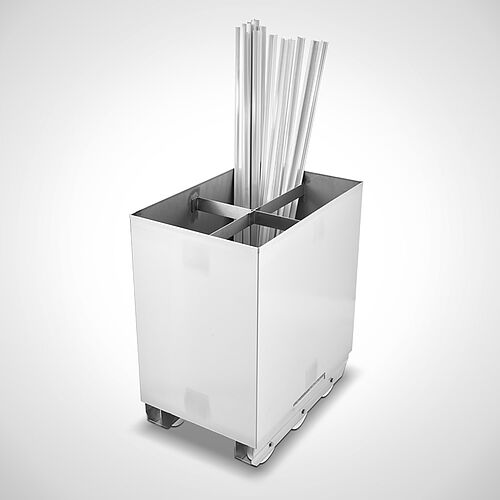

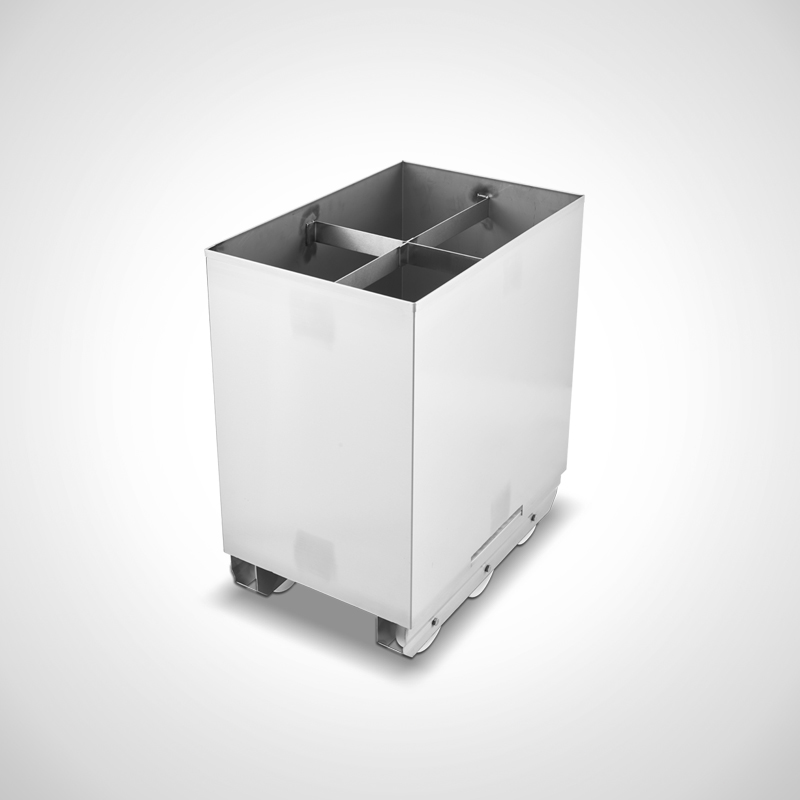

    RSW-K:

    • Closed version made of stainless steel sheet
    • Capacity: approx. 400 smoke sticks
    • Standing storage / transport of smoking sticks
    • 2 lateral drainage slots
    • 6 fixed castors made of polyamide with plain bearing, Ø 125 mm
    • Centre wheels pair increased for easy maneuvering

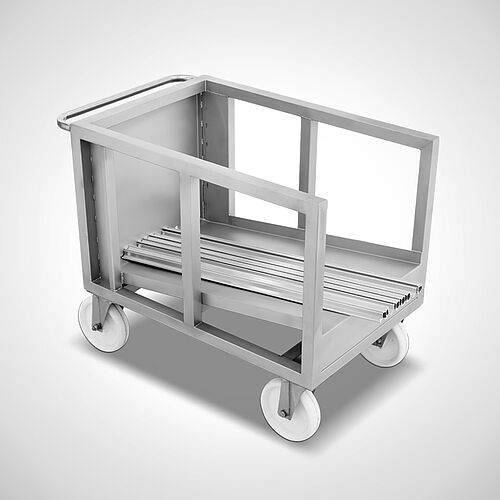

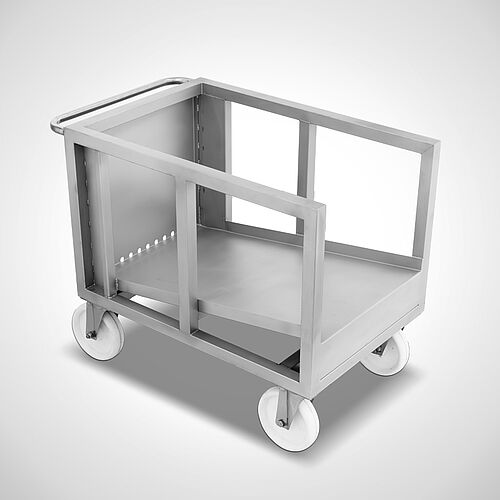

    RSW-G:

    • Open design made of sturdy tubular frame construction
    • Capacity: approx. 800 smoke sticks
    • Lying storage / transport of the smoke sticks
    • High load capacity
    • 4 polyamide swivel castors with ball bearing, Ø 200 mm (without lock)



    Option

    • Steering rolls with stops for type RSW-G, Article-No: 39910009
