HDPE-skirting protection
Type RSP

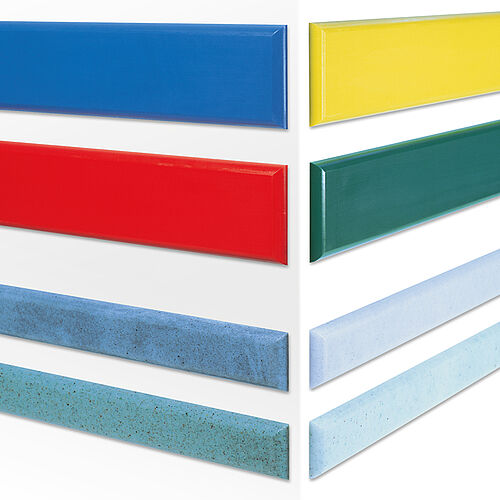

Colors similar to RAL. If necessary, please request a color sample of the material.

Material

Made of polyethylene (HDPE 500)

Dimensions

The wall protection profiles are manufactured in standard lengths of 2060 mm. The height of the profiles can be selected between 50 and 1000 mm.

Cut-to-length profiles according to customer requirements as well as special dimensions are possible at an extra charge.

Length: 2060 mm (standard)
Height: 50 - 1000 mm (in the 50 mm grid)
Thickness: 10 - 50 mm (in the 5 mm grid)

Areas of application

Our HDPE wall protection is particularly suitable for all commercial and industrial buildings, sports facilities, schools, public buildings, hospitals and nursing homes, restaurants, airports, railway stations, The material fulfills the flammability class B2, is physiologically sound, extremely shock and impact resistant, easy to maintain and resistant to greases and usual cleaning agents as well as cold-resistant up to -30 ° C.

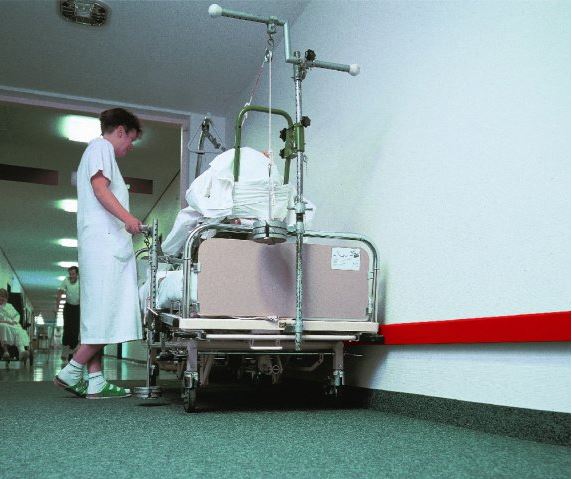

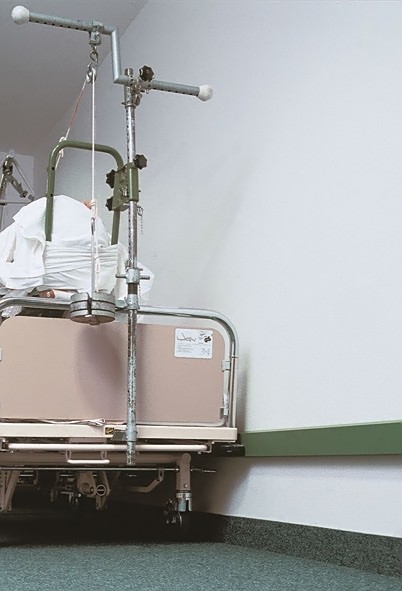

Wall protection profiles made of polyethylene are particularly suitable for installation in rooms and corridors with persons and transport.

Informations for users

Informations for planners

Assembly / Mounting Variations

• Simple countersunk hole with visible screw connection


• Blind hole incl. (almost invisible screw connection)



• Invisible fixing by means of clamping profile



• Undrilled for mounting by means of special adhesive tape applied at the factory*

  *The gluing of the profiles is only on absolutely smooth, dry and grease-free substrates
  by means of special adhesive tape. The weight of the wall protection profile is also decisive.
  A mechanical fixation is preferable to gluing.

Profiling species

The edge profiling can be selected individually for each edge - top and bottom edge as well as end edges. Various standard profiles are available for this purpose.
Please ask for an individual profile.

If a silicone seal is required for the profiles, we recommend the insertion of a mechanical silicone joint (see Silicone Joint under Options).



Corners and finishing profiles

Inside corners

Internal corners are available in two different versions: Miter cut (two-piece) or flap (one-piece).

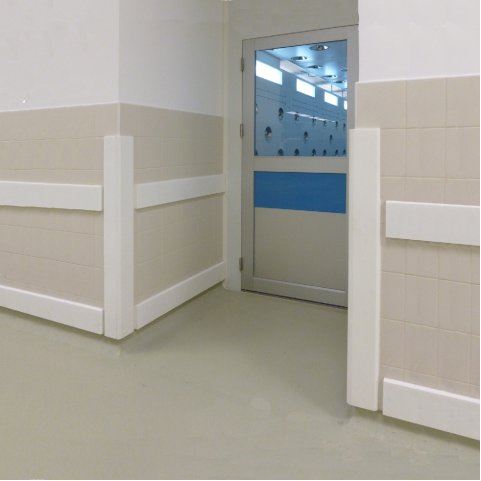

Outside corners

Outside corners are available as tongue and groove joints - with a closed rounded edge - or as a flap corner. For external corners, the second groove and tongue design is recommended.

End Termination

If the wall protection is to be closed freely, an end seal can be made at the factory with the profiling of your wall protector. For a connection to a door frame, or an inside corner of the masonry, a straight cut with a saw cut on the construction site is sufficient. End caps are manufactured with standard lengths of 100 or 200 mm.

Individual lengths are possible after consultation.

Options

• HDPE material for outdoor use
  HDPE-500 UV material (black) is available for outdoor use (UV resistant) on request and with a minimum weight of 400 kg!

• Silicone joint

Due to the surface properties of polyethylene, a normal bonding of sealants such as silicone is not possible. If the builder insulates the wall protection profiles with silicone, a silicone-sided silicone joint (rear milled) is required. This keeps the silicone mechanically on the profile.

• Socket recess


For the form-fitting transition to a tiled base, a base recess can be inserted at the factory. As a result, spaces in which dirt can collect can be avoided.
