Parts washing station with splash guard, feet
Parts washing station with splash guard, feet

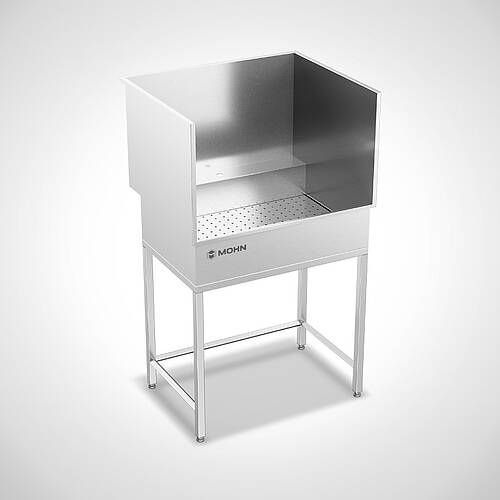

Parts washing station made of stainless steel with 4 feet type TW-K-S 105-85, Art. No. 12.00.00.74, with perforated washing station tray

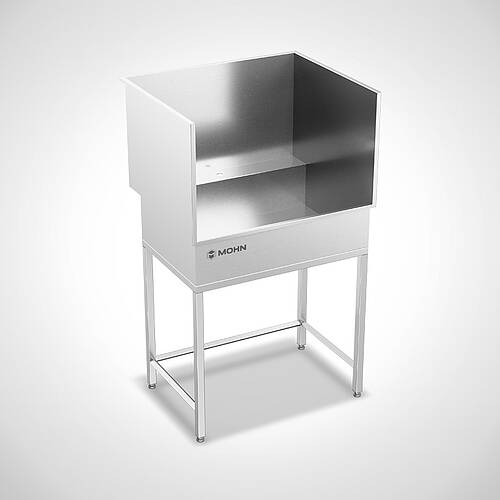

Parts washing station type TW-K-S 105-85, Art. No. 12.00.00.74, washing station basin with removable perforated plate
Parts washing station
type TW-K-S
For cleaning knife baskets, cutting gloves and other small parts
- Sturdy welded industrial design
- Washing area with 3-sided splash guard, h=600 mm
- Basin dimensions: W 950 x D 650 x H 250 mm
- Basin on the wall side with 150 mm deep shelf and

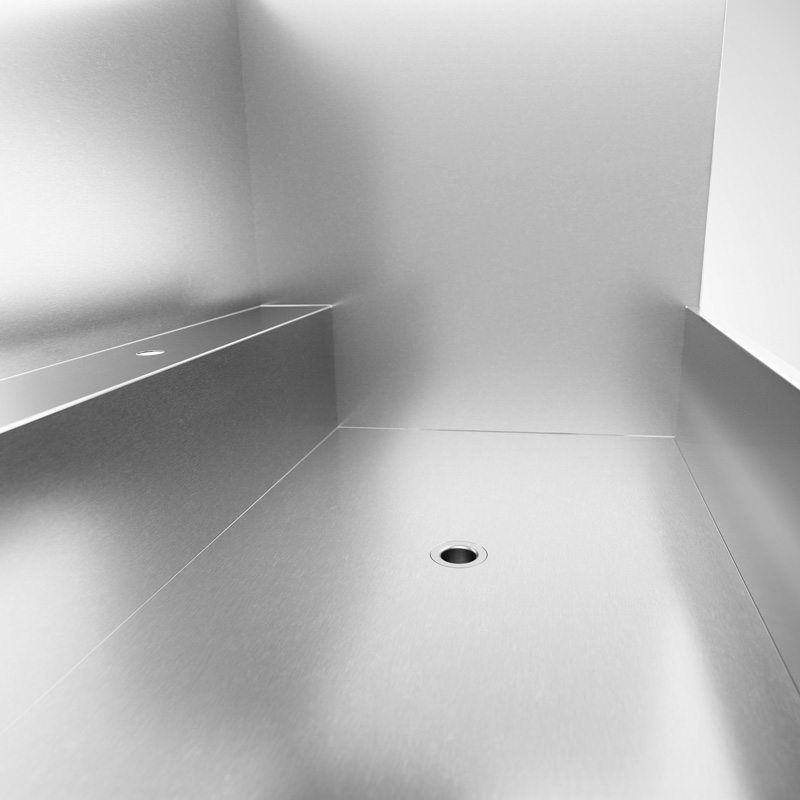

- Basin drain (1 1/2" AG) with plug valve

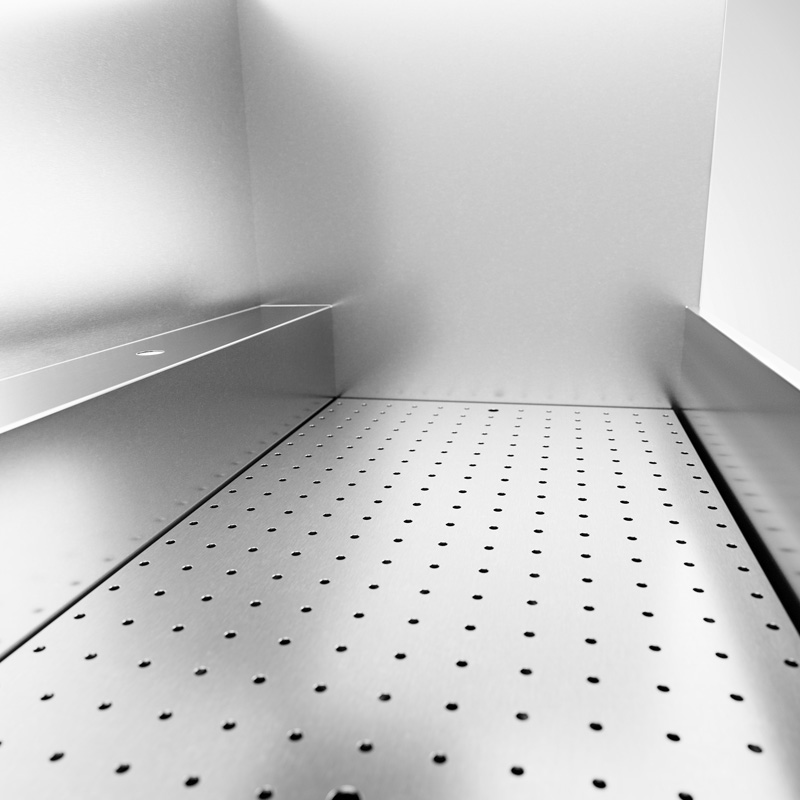

- Removable perforated plate, perforated grid 50x50, Ø 10 mm
- Robust square profile tube frame construction (40 x 40 x 1.5 mm)
- Substructure braced on 3 sides in U-shape - in hygienic design - diamond profile
- Connecting struts in the square profile tube frame construction (30 x 30 x 1.5 mm)
- 4 height-adjustable plastic screw feet (level levelling 15 mm)
- Rear feet offset 150 mm inwards (cove)
- Ground clearance 150 mm (from connecting struts in diamond profile)
- Without mixer taps or crockery sprays (optional)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
1758602326872481758541687
9456
5629
8
Show Lightbox Compare Comparedata
Other dimensions and designs on request. Supplied without accessories.
material
Stainless steel 18/10 material no. 1.4301.
The externally visible stainless steel sheet surfaces have a polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as the feet, have a uniform brushed finish.
Technical Data
| Drain | 1 1/2" |
|---|
