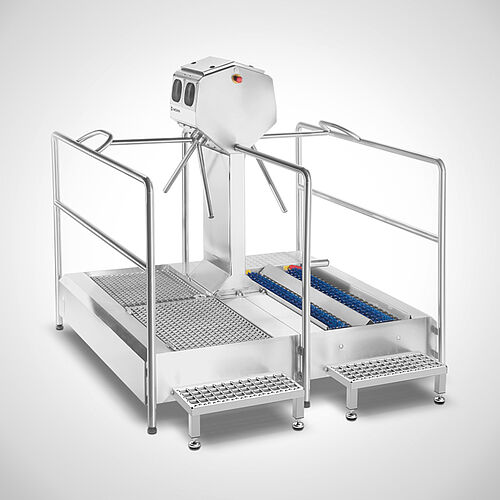

Control-Star (two lane) "Ecoline"
Control-Star (two lane) "Ecoline"
Hygiene Station
Type Control-Star Ecoline
2-lane, forcibly guided disinfection of the soles & hands at highly frequented production entries. Separate entry and exit lanes!
- Ecoline version with stable turnstile (2 years warranty)*
- Circuit board control, potential-free contact available
- Person separation: Approval after terminated medium application only
- Each lane separately controlled
- At the entry side, with brush roll module instead of walk-through disinfection basin and draining zone
- 2-hand disinfection unit including tamper-proof sensorics
- Way back electrically released, or permanently locked
- Dosage of the application quantity adjustable
- Brush roll length 1100 mm
- Brush rolls easily removable without tool
- Disinfection basin with time-controlled detergent supply
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
0
1181
446
8
Show Lightbox Compare Comparedata
*for the turnstile mechanism
Material
Made of rustproof stainless steel 1.4301
Passage direction
Type 1500-D/B
Entrance: disinfection basin and dripping zone - Drawing shows passage direction left to right
Exit: brushes 1100 mm length - Drawing shows passage direction right to left
Alternatively: Alignment mirror-inverted
Options
- Knife basket chute for entry lane, Article no. 99.80.01.41
- Document tray, type II (sheet metal), Article no. 18.00.00.93
- Handrails and gates on request
- Can holder in closed and lockable version on request
- Boot cleaning module, Boot-Star I-module with bypass for persons wearing clogs including platform
Technical Data
| Power supply | 3 x 400 V/N/PE; 50-60 Hz |
|---|---|
| Performance | 1,25-1,5 kW |
| Drain | 2x 2" (DN 50) |
| Water connection | 3/4" AG, (HW/CW) max. 43° C |
| Fusing | 16 A |
Accessories
Can container
Type KB-xx A
Document tray
Type DA-III
Hand rails
Type G-I
Handrail gate
Type GT
Graphic board
Type GBD
