Turnstile (mechanical) highline

Turnstile
Type DK-M Highline

mechanic turnstile in Robust industrial version

  • Highline version with vandalism-proof turnstile (10 years warranty)*
  • For wall-mounting or with standfoot
  • Turnstile in passage direction freely passable, way back permanently mechanically blocked
  • Passage direction Right or Left available

TypeVersionDimensions
W x D x H in mm
ComparePDF
DK-M WR  Wall-Right800x 345/ 935 x 60011.10.07.7311.10.07.73
DK-M WLWall-Left800 x 345/ 935 x 60011.10.07.7411.10.07.74

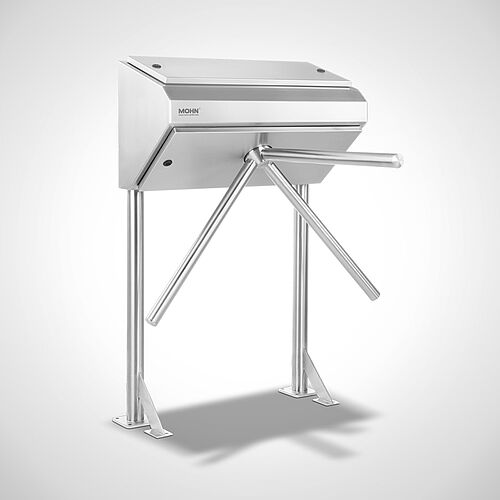

DK-M SRStand-Right800 x 345/ 935 x 139511.10.07.7511.10.07.75
DK-M SLStand-Left800 x 345/ 935 x 139511.10.07.7611.10.07.76
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
8216
1809
8
Show Lightbox Compare
Comparedata

*for the turnstile mechanism.



Material

Rustproof stainless steel 1.4301



Information

All parts which get mechanically loaded, are made of stainless steel 1.4301 full-material





Passage Direction

Turnstile passage direction
Left to Right



Turnstile passage direction



Right to Left
