2-arm turnstile
type DSx-2-A Highline

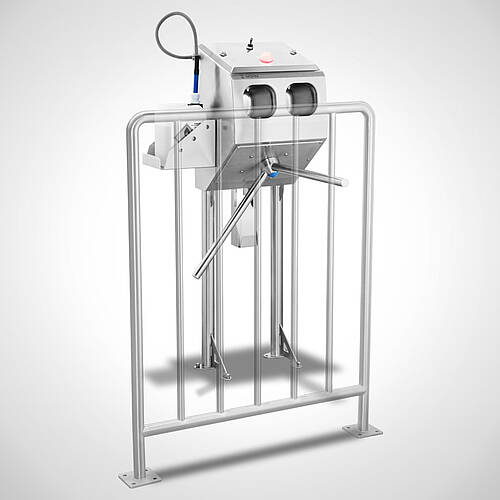

Motorised 2-arm turnstile with panic release
- Forced access control
- Motorised drive for reliable operation
- Barrier-free passage in an emergency (panic release)
- Programmable passage direction (right or left)
- Includes stand or for wall mounting
- Connection options for time recording and readers
- Multi LED signal display (RED-YELLOW-GREEN)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
material
Stainless steel 1.4301
Description
The motorised 2-arm turnstile offers an effective solution for access control in security-relevant areas. Thanks to its robust, stainless steel body, it is not only durable but also particularly resistant. The motorised drive ensures reliable and smooth operation, while the force-controlled access control offers maximum security.
In an emergency, the integrated panic release enables the turnstile to move into a position that opens up a barrier-free passageway. This is particularly important in escape routes where fast and safe exits are required. In combination with an opposite, magnetically secured swing gate, the turnstile is ideal for emergency scenarios.
The direction of passage is flexible and can be programmed as required so that it is either to the right or left. If required, the return path can be blocked or released, which offers additional control options. Connection to on-site time recording or reading devices is straightforward and enables seamless integration into existing systems.
A multi-LED signal display in red, yellow and green clearly indicates the status of the turnstile, making it more user-friendly. The dimensions of W 450 x D 945 (395/550) x H 625 mm make the turnstile compact yet functional.
The motorised 2-arm turnstile is the ideal choice for anyone looking for security and flexibility in a high-quality product.
Passage directions

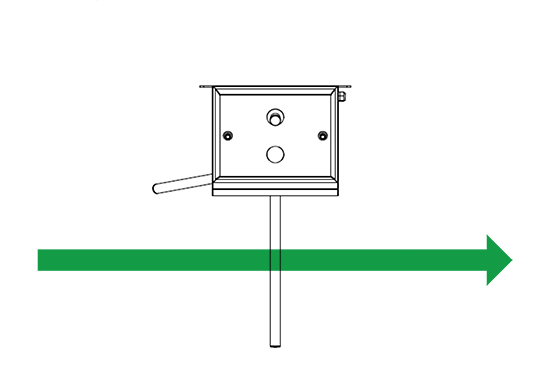

Left to right

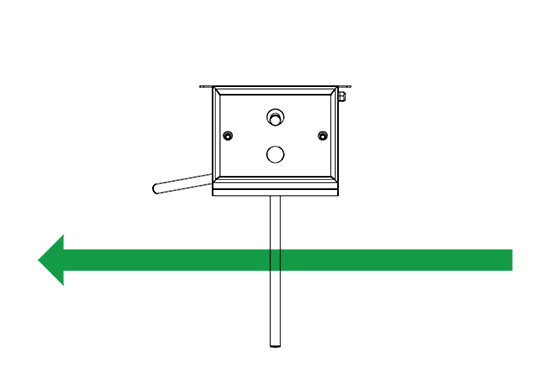

Right to left
Technical Data
| Power supply | 230 V /N/PE; 50/60 Hz |
|---|---|
| Operating voltage | 24 V, DC |
