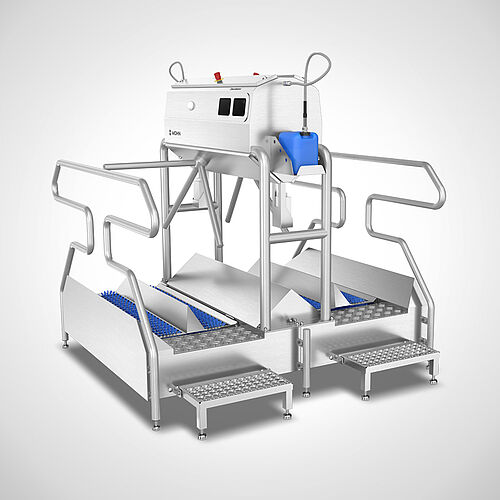

Clean-Check (two lane) "Highline"
Clean-Check (two lane) "Highline"
Hygiene station
Type Clean-Check DUO Highline
2-lane, forcibly guided disinfection of the soles and hands
- Highline version with vandalism-proof turnstile (10 years warranty)*
- Including freely programmable Siemens Logo control unit
- Hygienic design
- Potential-free contact for each lane available, for ex. for time-recording system
- Each lane separately controlled
- 2-hand disinfection unit including tamper-proof sensorics
- Way back electrically released, or permanently locked
- Sensor-controlled brush roll rotation for both ways, by means of spring cap technology
- Brush rolls removable without tool
- Dosage of the application quantity adjustable
- Optical empty-can message by multi-LED
- Including can holders
- Also as dry version available (for ex. bakery industry)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
*for the turnstile mechanism
Material
Made of rustproof stainless steel 1.4301
Dry execution - Dirt drawer
Front-end extensible, art. no. 99.80.00.32
Options
- Document tray type II (sheet metal) Article no. 18.00.00.93
- 1-lane entry only / 1-lane exit only Article no. 10.00.32.30
- Disinfection bath + drip tray, instead of brush rolls (Duo-Desi-Check) on request
- Can holder in closed, lockable version on request
- Boot cleaning module, Boot Star I-module with bypass for persons wearing clogs on request
Technical Data
| Power supply | 3 x 400 V/N/PE; 50-60 Hz |
|---|---|
| Performance | 1,6 kW |
| Drain | 2x 2" (DN 50) |
| Water connection | 3/4" AG, Mixing water max. 43° C |
| Fusing | 16 A |

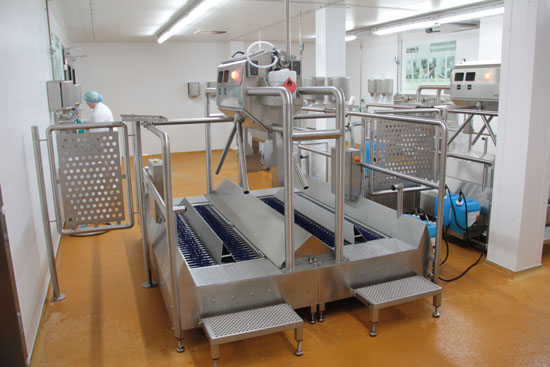

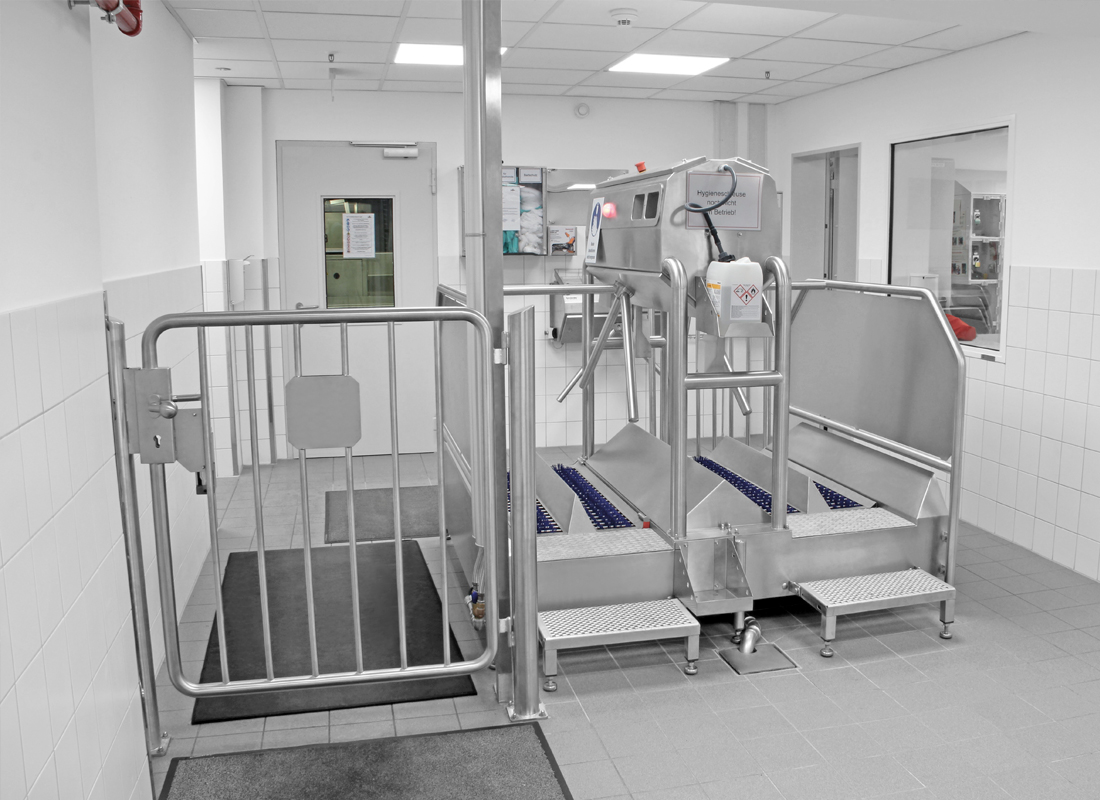

Reference Photos
Accessories

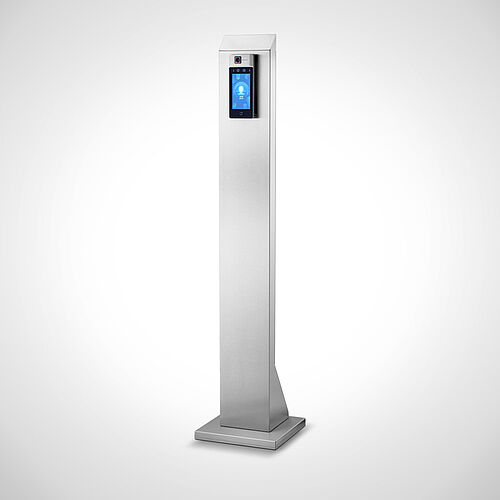

Face Checkpoint
Type FCP-HS
Document tray
Type DA-III
Handrail gate
Type GT
Can container
Type KB-xx A
Can holder
Type KH-GA
Can holder
Type KH
Can holder
Type KH-GV
Can holder
Type KH-CA
Cleaning trolley for brush rollers
Type RWBWSpring cap
Spring cap technology for saving water, chemicals and energy costs
Hygienic-Design
Hygienic and easy-to-clean design to avoid contamination.
Splash-guard
Solid splash-guard and side-step protection in hygienic-design
Control-cabinet
Control-cabinet with locking-lever in hygienic-design
Control
High-quality and user-friendly SIEMENS-LOGO control components.
Handrail
Ergonomic handrail in hygienic-design
Footstep
Safety hygiene footstep with anti-slip rust.
Engine-compartment
High-quality components from well-known manufacturers.
Skintop-gland
High-quality stainless steel SKINTOP cable-gland in hygienic-design.
Hand disinfection
Easily accessible dosing unit for service and maintenance
Turnstile
Robust, high-quality
turnstile mechanism.
10 years warranty!
Sensor technology
Electrically released outward and return routes: 2 encapsulated IP68 sensors for end position detection of the turnstile.
