Type PRS
For the hygienically perfect longitudinal and transverse storage of the pallets
- Welded upright frames designed for a maximum load capacity of 11 tonnes
- The actual load capacity is determined by the support beams/ cross beams
- Stand frames perforated at 100 mm intervals
- Shelf depths optionally 800 mm or 1,100 mm
- Field widths: 1,800, 2,700 or 3,600 mm possible
- Frame heights (shelf depth 800 mm): 1,800, 2,000, 2,500, 3,000, 3,500, and 4,000 mm possible
- Frame heights (shelf depth 1.100 mm): 1,800, 2,000, 2,500, 3,000, 3,500, 4,000, 4,500 and 5,000 mm possible
- Longitudinal crossbars with welded screw-on brackets
- Diagonal cross for stiffening, with turnbuckles
- Including mounting material and stainless steel floor anchor
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of rustproof stainless steel 1.4301
mounting example

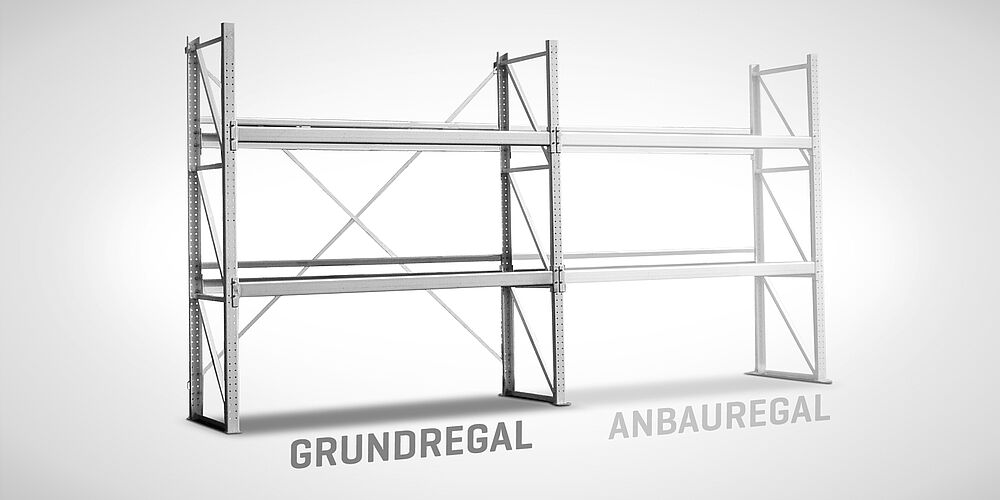

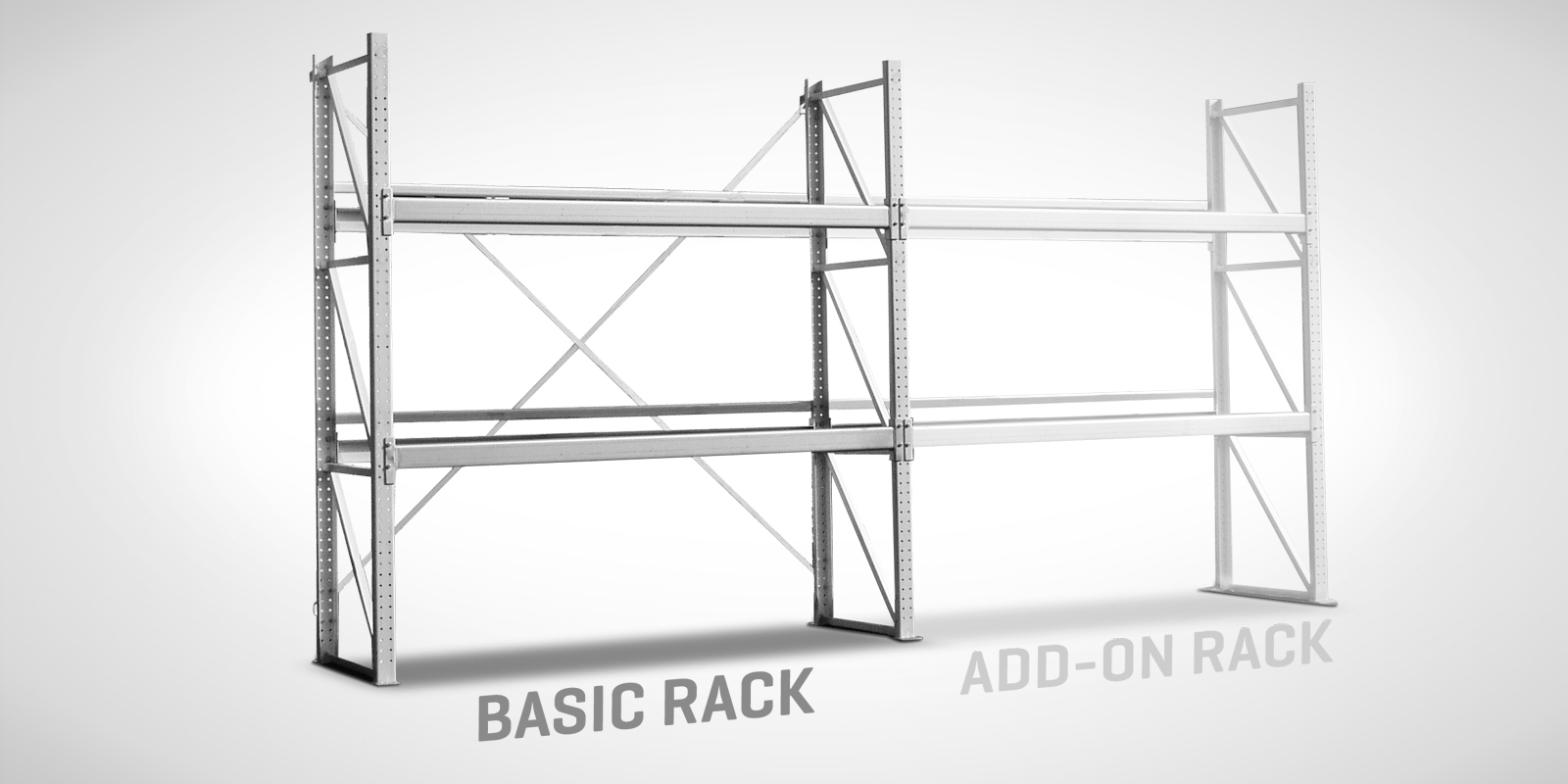

(Basic shelving unit) (Attachable shelf)
Mounting example: 3 longitudinal traverses with diagonal cross | |||||||||||||||||
Shelf version | Height | Field width | Compartment load (Material thickness 80/40 x 2 mm) | Depth | |||||||||||||
Basic shelving unit | 2500 mm | 1800 mm | 3080 kg | 1100 mm | |||||||||||||
Basic shelving unit | 2500 mm | 2700 mm | 1470 kg | 1100 mm | |||||||||||||
Attachable shelf | 2500 mm | 1800 mm | 3080 kg | 1100 mm | |||||||||||||
Attachable shelf | 2500 mm | 2700 mm | 1470 kg | 1100 mm | |||||||||||||
SUPPORT BEAM/ TRAVERSE
| Load capacity (shelf load)* | Length | Profile |
| 3080 kg | 1800 mm | 80 x 40 x 2 mm |
| 4290 kg | 1800 mm | 100 x 40 x 2 mm |
| 1470 kg | 2700 mm | 80 x 40 x 2 mm |
| 2120 kg | 2700 mm | 100 x 40 x 2 mm |
| 2420 kg | 2700 mm | 100 x 40 x 3 mm |
| 2980 kg | 2700 mm | 120 x 40 x 3 mm |
| 3280 kg | 2700 mm | 120 x 40 x 4 mm |
| 4190 kg | 2700 mm | 150 x 50 x 3 mm |
| 4490 kg | 2700 mm | 150 x 50 x 4 mm |
| 1000 kg | 3600 mm | 100 x 40 x 2 mm |
| 2000 kg | 3600 mm | 100 x 40 x 3 mm |
| 2570 kg | 3600 mm | 120 x 40 x 3 mm |
| 3070 kg | 3600 mm | 120 x 40 x 4 mm |
| 3700 kg | 3600 mm | 150 x 50 x 4 mm |
* Please note that the actual load-bearing capacity is determined by the support beams/traverses. It is therefore essential to clarify the load capacity per shelf and also to comply with the maximum load capacity of 11 tonnes for several shelves!
Options
- Reinforcement traverse (one field required in case of 1 traverse)
- Tilt protection (in case of field widths from 3 m)
- Bumper buffer device on request
- Push-trough protection (0 or 50 mm)
- Compartment covers on request
- Bolt anchors/ heavy-duty anchors on request
