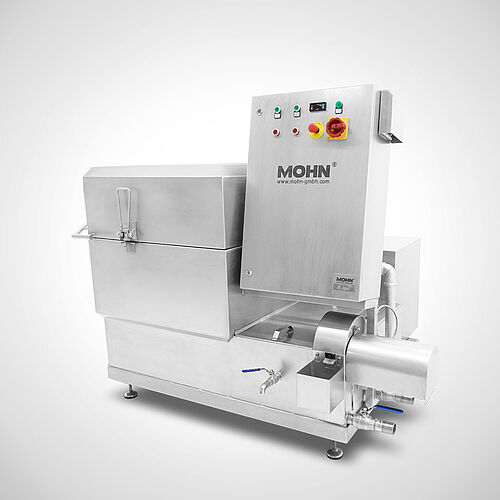

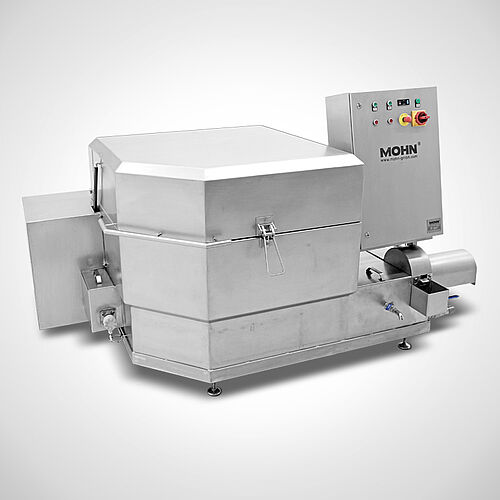

Rotary basket washer
Type DWA-Highline
Universal dishwasher for highest demands and customer-specific items
- Stable machine housing made of one piece and completely welded, low energy consumption

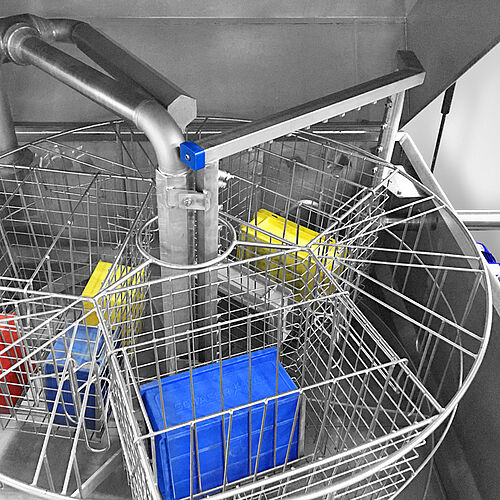

- Fully welded washing basket made of 8 to 10 mm round steel, Diameter: 1,080 mm, stable also with high point and shock loads
- The wash basket partition is individually adapted and manufactured to your customer-specific items.
In this way, the system is used as effectively as possible and the cleaning results are optimized. - Electrical heating with special spiral heaters, easy to clean and secure against burn-through

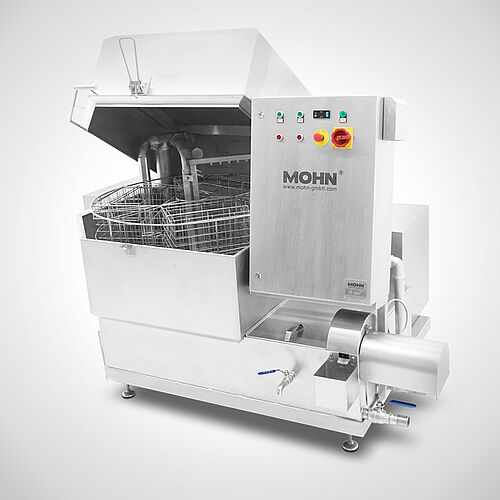

- Cover with weight relief, for easy operation
- Intelligent filter system for continuous cleaning of suds in the tank
- Washing performance: 10-12 batches (for example approx. 60 E2 containers) per hour, batch time approx. 3-5 minutes (adjustable according to requirements)
- Washing basket at the end of program, thereby only little residual moisture when removing the basket
- The drying result can be further improved due to the optional blow down
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of rustproof stainless steel 1.4301
Description

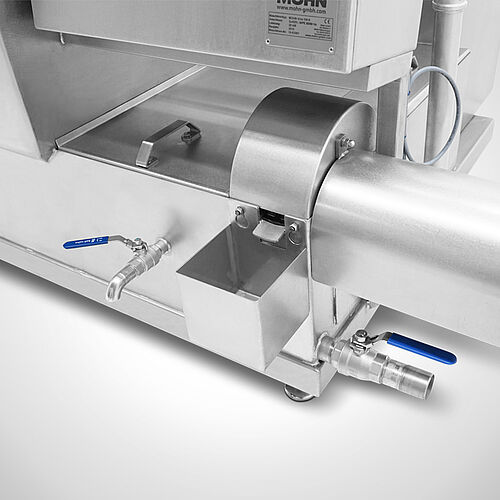

The machine is equipped with a washing, spinning drying and optionally with a blow down. The receptacle basket is manufactured to be suitable for your items to be washed (container etc.). The system is therefore best suitable for cleaning customer-specific, different items to be washed. The strong stainless steel centrifugal pump with an output of 3.0 kW and a circulation of 900 l/min at 1.5 bar pressure enables optimal cleaning results at short batch times.
Universal dishwasher with cover opening for generally heavily polluted items to be washed and highest demands. Basket diameter: 1080 mm, max. loading height: 850 mm, Useable height: 650 mm.
Suitable for cleaning customer-specific items to be washed
- Containers, crates and baskets
- GN Container
- Knife baskets
- Shapes
- Multi-head weighing hopper
Options
- Blow off with a 4.0 kW strong ELEKTROR high-pressure compressor Article no. 11.10.02.22
- Insulation coating in the lower area (sides and bottom) Article no. 11.10.02.23
- Clear rinsing via separate nozzle pipes Article no. 11.10.02.24
- Washing system on 4 heavy-duty rollers Article no. 11.10.02.25
Technical Data
| Power supply | 3~ 400 V - 50 Hz; approx. 24 kW; 32 A |
|---|---|

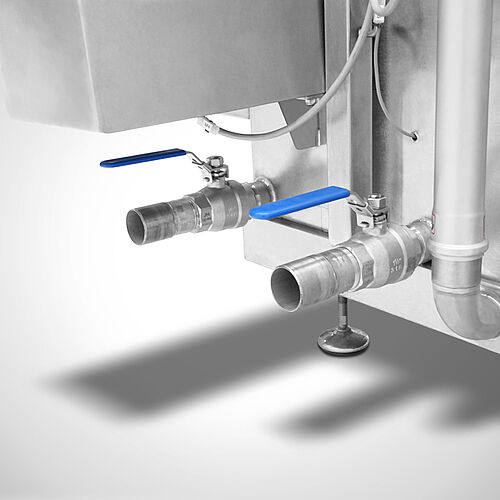

| Drain | DN 50 |
| Water connection | 3/4" min. 2, max. 6 bar |
| Tank capacity | 220 l |
| Pump performance | 3,0kW 900l / min at 1,5bar EDUR Stainless steel centrifugal pump |
| Exhaust air | DN 250 |
| Heating power | 20 kW |
| Output per man-hour | depending on container size |
| Rotating basket diameter | 1080 mm |
| Effective height | 650 mm |
| Loading height | 850 mm |
| Charge time | 3-5 min |
| Max. basket load | 500 kg |
| Basket drive | 1,0 kW |
| Basket height | 600 mm |
| Housingt sheet thickness | 2 and 4mm |
Reference Photos
