H-shape smoke trolley
H-shape smoke trolley
Smoke house trolley
Type RW-VH

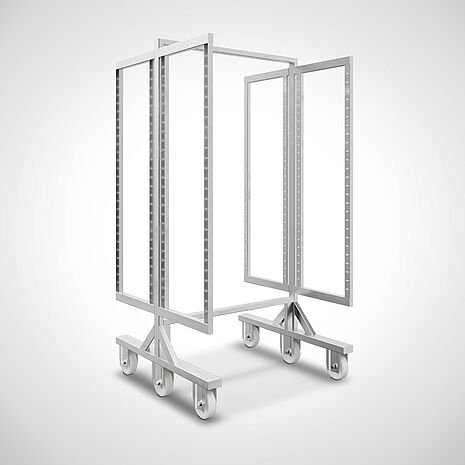

Standard smoke trolley execution in H-form design
- Smoke house trolleys type RW-H-Shape with layer type No. 5
- For 1,000 mm smoke sticks and grids W 940 x D 990 mm
- Stable frame construction 50 x 30 x 1.5 m made of stainless steel
- Cleanly welded and first-class stained
- Lowest level 300 mm above floor
- Total load max. 500 kg
- 2 push handles on each side, vertically offset
- 6 polyamide fixed rollers (diameter 150 mm), centre wheel pair elevated for tilting moment
- With TARE sticker on both sides
- Wheels designed for up to 130°C
- Stable wheel carrier made of profile tube 80 x 40 x 2 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
We manufacture your smoke trolley according to your requirements with regard to frame construction, number of floors, floor design, floor space, handles, wheel arch design, wheels and dimensions
Material
Made of stainless steel 1.4301
Options
- Closed wheel case
- Wheels with roll-and ball bearing
- Floor and ground clearance on request
- Higher loading capacity on request
- Wide choice of different layer types
Advantages
- Completely made of stainless steel
- Proper welded and stained frame-construction
- Heat-resitant, long-living wheels
Layer Types
 Layer type no. 1 |  Layer type no. 2 |  Layer type no. 3 |  Layer type no. 4 |
 Layer type no. 5 |  Layer type no. 6 |  Layer type no. 7 |  Layer type no. 8 |
Reference Photos
