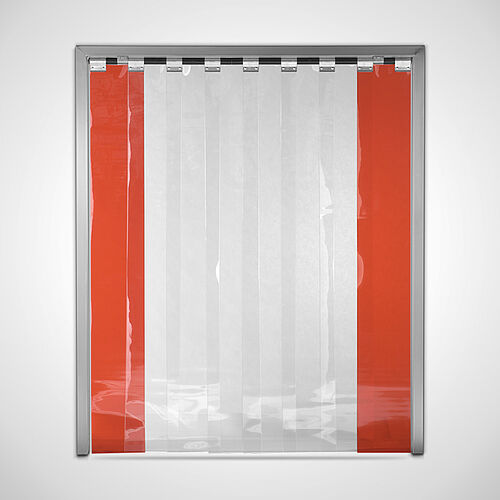

Stripe curtain
Type STV-F
Economic solution, energy-saving, noise- and draft-avoidance.
- For locking of door-openings
- For partition of differently heated hall-areas
- For enclosure of machine and devices in production areas
- Different qualities resp. coldness-resistant types
- Different assembly possibilities
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Further executions on request.
Material
Made of clear PVC
Construction
- Stripes with rounded edges
- Particularly mountable, easy to change
- Metal-parts, galvanised or stainless steel
- Available as assembly-kit for easy mounting
Assembly types
- Swiveling execution, stripe lamellas swinging (installation under lintel or before lintel)
- Version "T": fastening by means of claws under the beam
- Version "U": Direct attachment under a lintel
- Version "V": Slidable on the rail system under or before the lintel (on request also available on 2 rails under a lintel)
- Version "W": fastening using an angle profile (80x80x8 mm) before falling
- Rigid design using a clamping profile (installation under lintel or before lintel)
- Installation under lintel (version "S") with rigid attachment using a clamping profile
(Restriction of the clear passage height by 80 mm) - Installation before lintel (version "S") with rigid attachment using a clamping profile
(Full clear headroom)
- Installation under lintel (version "S") with rigid attachment using a clamping profile
Qualities
- Soft PVC stripes in normal, coldness-resistant up to -30°C
In areas with a constant temperature of 15°C
Clear transparentwith red stripes for optical partition - Extremely coldness-resistant for freezing areas up to -45°C
Executions
Stripe curtain, Type STV-F | ||||||||
|---|---|---|---|---|---|---|---|---|
200 | 300 | 400 | ||||||
Type | STV-F 2/50 | STV-F 2/80 | STV-F 3/60 | STV-F 3/66 | STV-F 3/80 | STV-F 3/100 | STV-F 4/50 | STV-F 4/60 |
Size of lamell | 200 x 2 | 200 x 2 | 300 x 3 | 300 x 3 | 300 x 3 | 300 x 3 | 400 x 4 | 400 x 4 |
Assembly type | S | TUVW | TUVW | S | TUVW | STUVW | S | TUVW |
Overlap | 50 | 80 | 60 | 66 | 80 | 100 | 50 | 60 |
Overlap | 50 | 80 | 90 | 100 | 120 | 150 | 100 | 120 |
Options
- With 90° detent
- Door leafs transparent with grid net inlay
- Door leafs with inlay in different colors
- Frame as flat or U-profile
- Clip frame for paneel or dry wall
- Stops with 90° detent
- Socket and impact protection

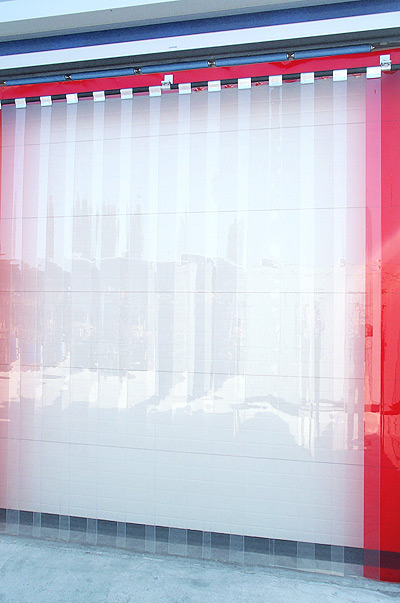

Reference Photos
