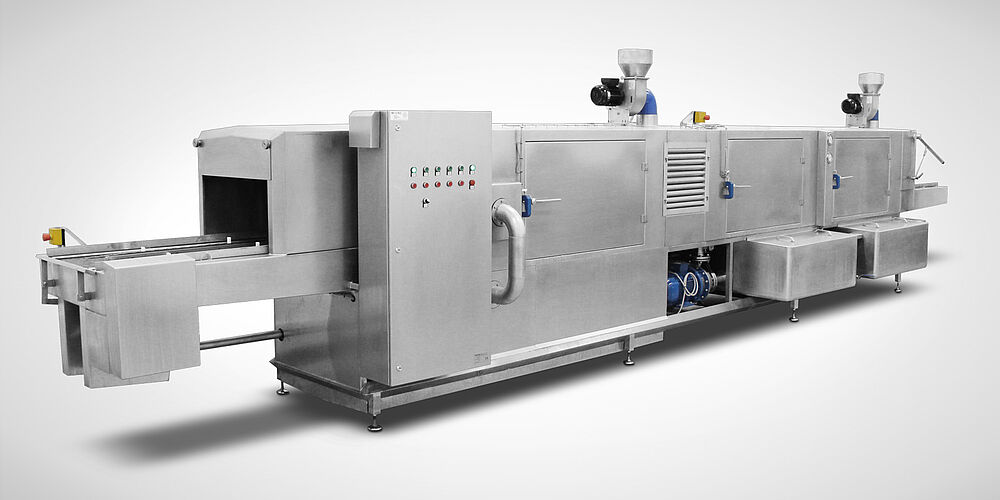

Industrial washing system Type DLWA 600-2T/2+ PAL Highline
Multi-tank washing machine for cleaning crates and pallets in pass-through
- Output 500-800 crates/h (2-lane) or 120 H1 pallets/h (1-lane)
- Completely double-walled, soundproof and heat insulated machine housing made of one piece and completely welded, lowenergy consumption
- Prewash zone, length: 1800 mm with pump capacity 4 kW-1200 ltr./m. at 1,5 bar
- Mainwash zone, length: 2700 mm with pump capacity 11 kW-1000 ltr./m. at 3 bar
- Tank volume depends on filter type execution
- Nozzle arms with stainless steel nozzles can be removed and cleaned without any tools (Nozzle arms with forced positioning)
- Infeed table: Length 1,500 mm, for easy manual feeding
- Longitudinal or transverse through-feed with a Scanbelt bone chain, clearly slanted with Euronorm containers
- Tunnel pass-through with height adjustment via easily adjustable hold-down devices
- Large and easily cleanable external filter box with funnel overflow
- Electric tank heater: 3x 10 kW; optional with steam directly or via heat exchanger
- Special filament heaters made of heat-resistant stainless steel, easy to clean, secure against burn-through
- Main wash zone: Washing temperature 50-55° Celsius
- Final rinsing zone: Fresh water heated up to 82° Celsius via electric boiler or steam heat exchanger
- Outfeed table: Length 1,500 mm with limit switch (Belt + final rinsing stop with full outfeed table)
- Optionally with blow-off tunnel in different performance levels, depending on desired blow-off result
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
*Width depends on filter type execution.
Technical data depends on equipment. Errors and omissions excepted. Information provided without guarantee.
Material
Edelstahl rostfrei 1.4301
Description
Pass-through washing system for cleaning crates and pallets with a passage height of 310 mm and a maximum passage width of once 820 (1-lane) or twice 410 mm (2-lane). In 2 lanes, the crates are conveyed through the machine slightly inclined outward. The pallets are also guided longitudinally, but in 1 lane over a further, centre track belt (Scanbelt 1702, tensile strength 1t).
Information
Prewash zone:
Tank volume with outside box filter: 600 ltr.
Tank volume with drum filter: 1000 ltr.
Mainwash zone:
Tank volume with outside box filter: 800 ltr.
Tank volume with drum filter: 1000 ltr.
Options
- Fresh water pre-spraying DLWA 300/2+PAL at water supply temperatures less than 45°C Article no. 11.10.00.67
- Fresh water pre-spraying DLWA 300/2+PAL at water supply temperatures greater than 50°C Article no. 11.10.00.66
- Vapour exhaust 2x required Article no. 11.10.02.74
- Tank heater with direct steam Article no. 11.10.00.84
- Tank heater with indirect steam Article no. 11.10.00.83
- Rinsing boiler, output 1x 10 kW Article no. 11.10.00.86
- Rinsing boiler, output 2x 10 kW Article no. 11.10.00.85
- Steam counterflow valve final rinsing Article no. 11.10.00.82
- Blow off DLWA-BSP-1, +5 kW output Total length +2,300mm Article no. 11.10.00.76
- Blow off DLWA-BSP-2, +10 kW output, Total length +3,200mm Article no. 11.10.00.75
- Blow off DLWA-BSP-3, +15 kW output Total length +3,700 mm Article no. 11.10.01.31
Technical Data
| Power supply | 3x 400 V/ N/ PE; 50 Hz |
|---|---|
| Drain | DN 50 |
| Water connection | 2x 3/4“, min. 40°C in main wash and 15-85°C in after rinsing area, 2-5 bar, 2-8°dH |
| Water consumption | approx. 300 l/h |
| Heater | 3x 10 KW (electrical) |
| Tank capacity | see description |
| Pump capacity | 4 kW 1200 ltr./min. 1,5 bar (Pre wash zone) / 11 kW 1000 ltr./min. 3 bar (Main wash zone) |
| Washing tunnel length | 1800 mm (pre wash zone) / 2700 mm (main wash zone) |
| Exhaust air | DN 250 (Stutzen) |
| Wash tunnel dimensions (w x h) | W 820 x H 310 mm (1-lane) / W 410 x H 310 mm (2-lane) |
| Working height | 950 mm (ergonomic) |
