Changing area furnishment
Changing area furnishment for all company sizes
What is meant by changing area furnishment?
In many companies, employees are required to put on the appropriate or prescribed work clothing before starting work. As a rule, a separate changing room, often just called a changing room, is available for this purpose. Such a changing room contains all the necessary equipment for black/white separation, i.e. the separation of street clothes (white) into the working clothes prescribed by the company (black).
This results in the need for a separate locker per worker, changing benches or other seating to make changing easier by providing seating, and various workwear issue or storage facilities in the form of cabinets of different types. Instead of lockers, cloth cabinets lockers can also be a useful substitute to store parts of the working clothes that can be newly used on a daily basis. Changing area furnishment is overall a subcategory of social area equipment, as a locker room is legally a social area (like a break room) and not a working area.
The need for changing area facilities exists especially in production plants and manufacturing facilities where hygienic standards play a role in addition to possible soiling of clothing. As a specialist for equipment in the food industry and Hygiene technology , our changing room furnishings are also optimised for the workplace guideline for changing rooms in the food industry. This includes both the hygiene regulations in changing rooms and the Changing Room Workplace Ordinance with its specific requirements for changing area facilities. Since particularly high standards generally prevail in the food industry, our products from the changing room furnishings category are of course also suitable for other types of operation – from industrial kitchens to bakeries to workplaces without special hygiene requirements – depending on the activities of the employees.
Lockers, standard
The EU version of the standard lockers with sizes from 1 to 5 compartments is offered in stainless steel or sheet steel. The compartment width can be chosen between 300 mm and 400 mm. As a set-up, we offer four options: Wall-mounted, supporting feed, with base frame or with bench integrated at the front.
Locker, two-storey
As with the standard lockers, the two-storey lockers are also available in stainless steel or sheet steel. The compartment width is 300 mm or 400 mm. The double-storey lockers are available in sizes from 1 to 5 compartments side by side and with the installation types wall-mounted, feet, with base frame or with bench integrated at the front.
Z-shape cloth cabinet
The Z-shaped clothes cabinet in EU design is offered in the above-mentioned installation types and in stainless steel and sheet steel versions with red or blue lacquered doors. Per compartment, the Z-shape clothes cabinet offers 2 doors, partially perforated (square perforation) and is available as a single or double compartment for 2 people.
Space-saving clothes cabinet
The stable and robust space-saving clothes cabinet in stainless steel design uses feet and offers compartments with a width of 150 mm. The interior features include a hat shelf, clothes rail and 3 sliding hooks. We offer space-saving clothes cabinets in three versions with 4, 6 or 8 compartments.
Laundry output cupboards
The laundry dispensers for working clothes and disposable clothing are available in stainless steel and sheet steel versions. We offer two variants for the installation: Wall-mounted and with feet. In terms of sizes, there are linen dispensing cupboards with 5 and with 10 compartments as well as double, i.e. 2 compartments x 5 or 2 compartments x 10.
Laundry collector cupboards
Where clothes are issued, they usually have to be collected again in the same room at the end of the shift. Afterwards, they can either be cleaned or disposed of. There is also a choice of stainless steel or sheet steel models for the laundry collector cupboards. For installation, we offer wall-mounted versions or with feet.
Benches
Changing rooms are also social rooms and can or must be usable during breaks. For changing and breaks, the provision of suitable seating is necessary. This is where our benches with or without a shoe rack come into play. Our models are available in stainless steel, plastic or coated steel.
Swing-over benches
Our Highline and Ecoline swing-over benches are available with 2 or 3 shelves and can be fitted on one or both sides. The sturdy tubular frame construction with a stainless steel seat rests on 4 height-adjustable feet. The shelves are optimised for storing shoes. The largest version can have a maximum of 36 compartments.
Top cabinet
Made of stainless steel, the top cabinet for our swing-over benches is designed for storing and dispensing clothing. It offers four height-adjustable storage compartments and has a sloping roof on the side. The top cabinet is available in 2 different standard depths for screw fastening to the swing-over bench.
Cupboard for disposable clothing
The stainless steel disposable dispensing cupboard is designed as a compartment cupboard for storing and dispensing disposable clothing. It offers height-adjustable feet. The compartments arrangement from top to bottom: 1-compartment; 4-compartment; 1-compartment; hinged door with disposal flap. The latter is equipped with a holder for garbage bags on the inside.
Compartment cupboards with doors
In this category, wall-mounted or floor-standing compartment cupboards made of stainless steel and sheet steel (lacquered doors) are offered. The number of compartments ranges from three compartments arranged one on top of each other to six compartments arranged one on top of each other in four compartments each.
Compartment cupboards without doors
As with the models with doors, the compartment cupboards without doors are also available in wall-mounted or floor-standing versions and in stainless steel or sheet steel. The layout and number of compartments also ranges from three on top of each other to six on top of each other in four compartments.
Compartment cupboards - coated steel, with acrylic glass doors
In this category, wall-mounted or floor-standing compartment cabinets made of sheet steel with acrylic glass viewing windows in the doors are offered.
Small compartment cupboards
Our small compartment cupboards in robust stainless steel construction and built-in slope (200 mm higher at the back) are available in two versions with 30 or 40 compartments with doors. The compartments are divided into 2 compartments and offer a clear dimension of 180x180x100 mm for 30 compartments or 180x180x70 mm for the configuration with 40 compartments.
Deposit locker cupboard
The deposit locker cupboards are used for the safe storage of personal valuables and are available in very robust stainless steel construction in the versions 50, 80 or 100 compartments with lockable doors. The deposit locker cupboards are available for wall mounting or with 4 height-adjustable feet.
Locker (custom made)
We manufacture lockers (cloakroom lockers) made of stainless steel individually according to customer requirements. In terms of dimensions and compartment widths, we also manufacture for special requirements and niches. We offer four options for installation: Wall-mounted, with feet, with base frame or with bench underneath.
Accessories
In the accessories category, you will find all kinds of extras for our changing room products. Our extensive range of products extends from laundry trolleys and laundry bag holders to special custom-made products made of stainless steel according to customer requirements.Our offer ranges from laundry trolleys to special custom-made products made of stainless steel according to customer requirements.
Your contact persons
You have further questions about our social or changing area furnishment or about the topic of hygiene and cleaning technology and wish to have personal expert advice? By telephone or also on site with pleasure. Our experienced specialist advisers will find the optimum solution for you.
FIELDS OF APPLICATION FOR CHANGING AREA FACILITIES

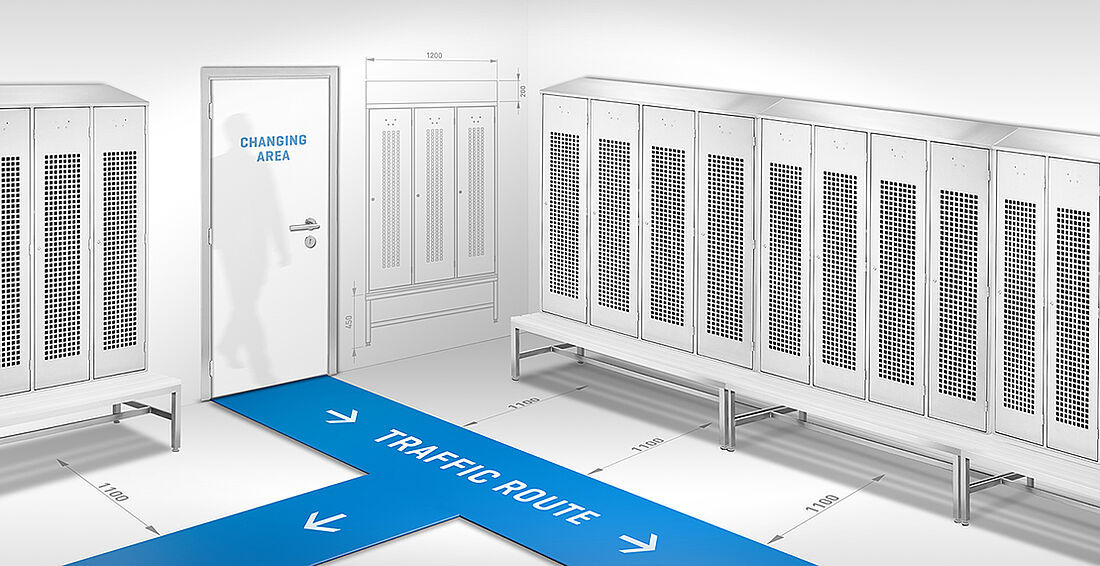

PLANNING CHANGING AREAS - WHAT NEEDS TO BE CONSIDERED?
Planning and implementation of changing areas - for every industry
Changing areas or dressing rooms must meet certain requirements depending on the type and size of the business. These are laid down in the workplace guidelines on changing rooms or in a corresponding workplace ordinance. Part of these workplace guidelines or ordinances are usually also hygiene regulations. Without wanting to go into a specific case, changing rooms in hygienically sensitive operations such as in the foodstuff industry are an integral part of a comprehensive hygiene concept. With appropriate planning, these rooms can, for example, be connected directly to a hygiene station.
Locking systems for clothes cabinets
In companies without sensitive hygiene regulations, on the other hand, requirements apply that make the social changing room a pleasant place to change and also a place to stay. Above all, cleanliness and order as well as the safety of personal belongings are important. Therefore, we offer various options for securely locking the lockers. These include rotary bolt locks, turning locks with combination locks, cylinder locks with or without a locking system as well as chip solutions (on- & offline systems).
The connection to sanitary rooms and sufficient movement space should also be taken into account in advance during planning. A separation by gender for men and women is indispensable in most cases. This also applies to the separation of toilets and washrooms. With our wide range of changing area facilities, we help you to implement the requirements of workplace guidelines or workplace ordinances on changing rooms perfectly and precisely.
PLEASE CONTACT US
Various factors have to be observed when planning and realising changing area furnishings. Please contact us for more information >>>
CHANGING AREA FURNISHMENT FROM MOHN
Mohn GmbH has been the specialist for hygiene technology and also factory equipment with the best hygiene properties for many years. The central starting point for us is also the Workplace Provision on Changing Rooms (ASR), which regulates all the important aspects of equipment and condition, black and white facilities, lighting and the provision of changing areas. These legal requirements are incorporated into the development, planning and design of our products, as are the special requirements of our customers from a wide range of industrial sectors.
Therefore, our products in the area of changing area facilities are suitable for all commercial requirements in which, in addition to hygienic aspects, the points of material quality and durability also play a role.
German workplace guideline (ASR 34/1-5) - Dimensioning and division of changing rooms for clothes cabinet with a bench
Changing rooms must be provided by the employer if the activity requires the wearing of special working clothes. The black and white area is mandatory for all employees who are exposed to infectious, toxic, harmful, corrosive, irritating or highly odorous substances or who are exposed to heavy pollution. There, the legislator requires separate storage for working clothes (black) and street clothes (white). If the storage facility is spatially separated, it is expedient to connect the two parts of the black and white facility by washrooms (see § 36 German Workplace Ordinance).
Changing room cabinet without benches

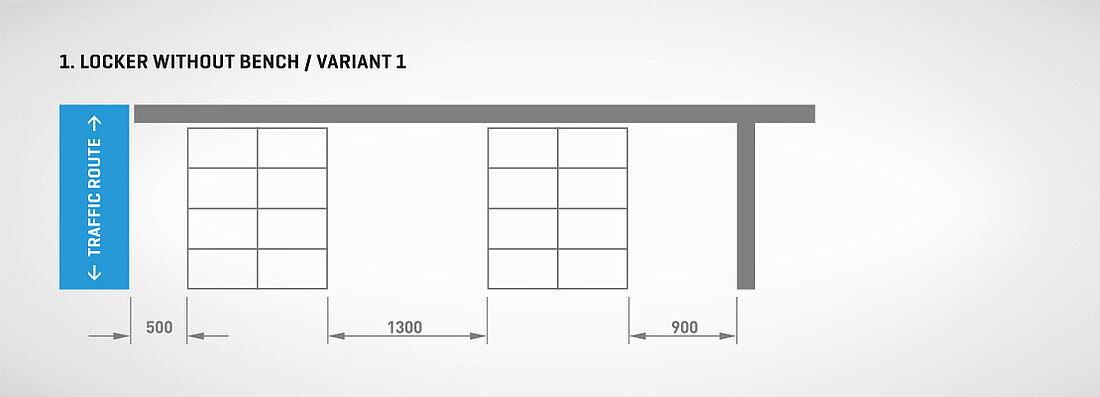

German workplace guideline (ASR 34/1-5) - Dimensioning and division of changing rooms for clothes cabinet without a bench - Variant 1

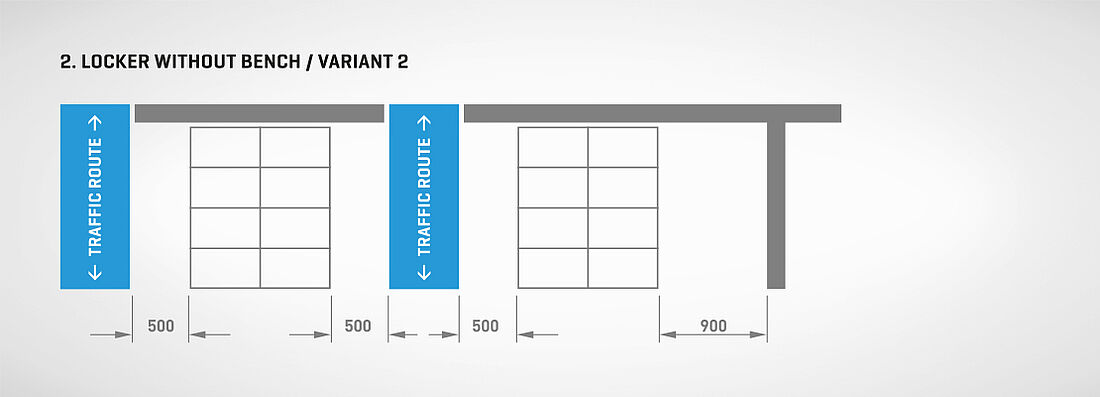

German workplace guideline (ASR 34/1-5) - Dimensioning and division of changing rooms for clothes cabinet without a bench - Variant 2
Changing room cabinets with bench seats

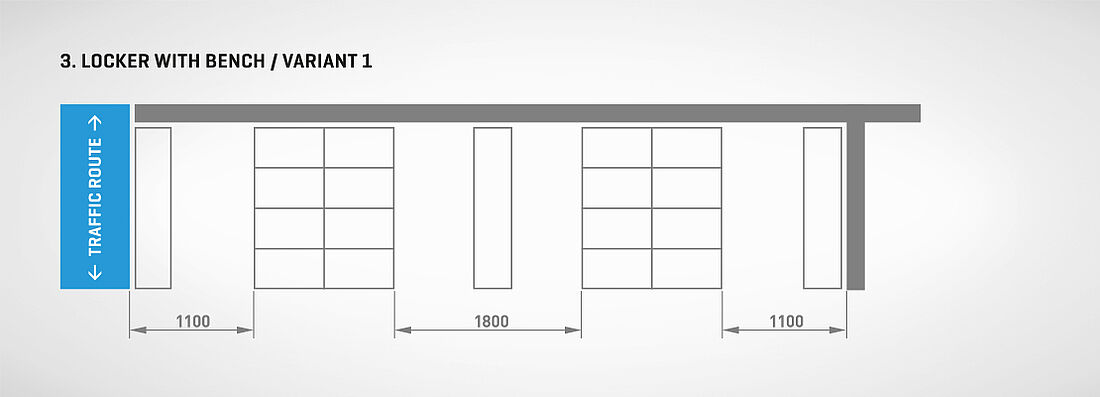

German workplace guideline (ASR 34/1-5) - Dimensioning and division of changing rooms for clothes cabinet with a bench - Variant 1

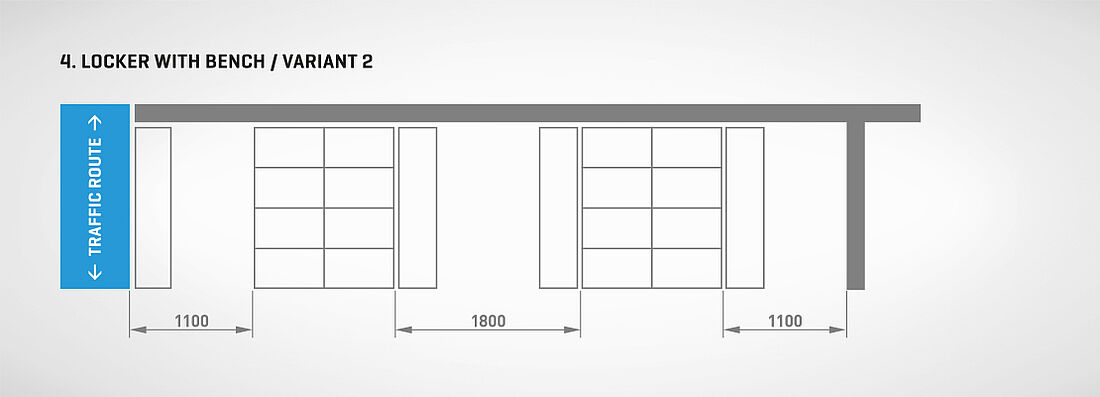

German workplace guideline (ASR 34/1-5) - Dimensioning and division of changing rooms for clothes cabinet with a bench - Variant 2

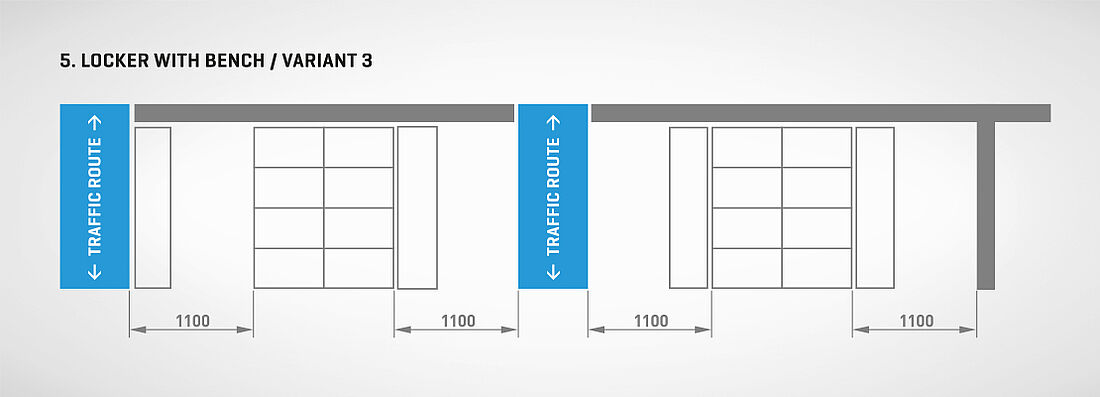

German workplace guideline (ASR 34/1-5) - Dimensioning and division of changing rooms for clothes cabinet with a bench - Variant 3
When dimensioning and dividing changing rooms, appropriate traffic routes, i.e. areas intended for pedestrian or operational vehicle traffic, must also be provided in accordance with the workplace guideline. This includes corridors and walkways in particular. The minimum width of traffic routes is derived from the widths of escape routes of the workplace guideline (these are based on the number of people in the catchment area).
With our decade-long experience in the field of business equipment and its implementation together with our customers, we are happy to assist you with our expertise - in the construction or replanning of your changing rooms as well as in other aspects in your business.
PLEASE FEEL FREE TO TALK TO US.
OUR REFERENCE PROJECT
THE PLUS OF MOHN: EXTENSIVE ACCESSORIES
For many concepts and hygiene management in changing rooms, appropriate accessories are an important component of the entire social area technology. This ranges from such simple things as removable, shatterproof shoe trays for hygienic storage of wet footwear, shower gel and towel holders or mirrors on the interior doors. Even simple accessories such as plastic numbering plates in the lock area, door opening limiters, height-adjustable cupboard feet to compensate for uneven floors or even burglar-proof valuables compartments inside the cupboards are no longer a problem these days.
Door opening limiters
Fixed interior partition wall for B/W separation
Towel holder for interior door
Plastic shoe tray
Mirror for interior door
Valuables compartment for interior cabinet
There are almost no limits to the useful or necessary accessories for clothes cabinets, benches, etc.
Construction limitations or adverse circumstances, which cannot be served by means of the standard delivery programme, we can solve due to our high flexibility with special constructions made of stainless steel.
