Wash basin protection archs

Wash basin protection archs

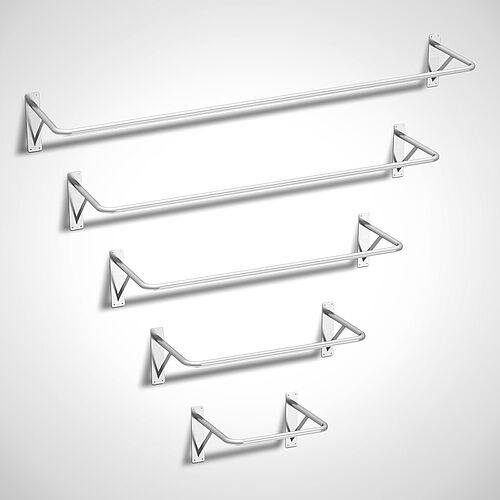

Stainless steel protection arch Type RSB for hand basins and multiple wash basins Stainless steel protection arch Type RSB for hand basins and multiple wash basins

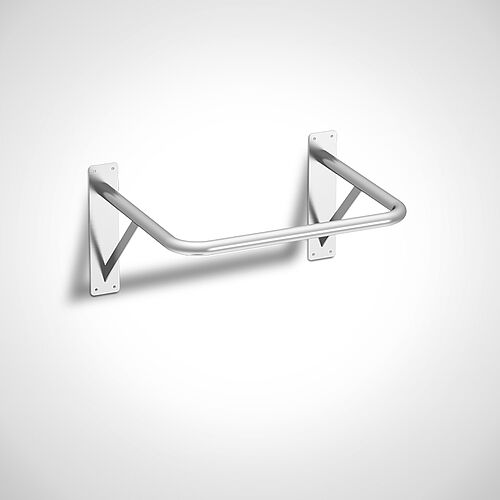

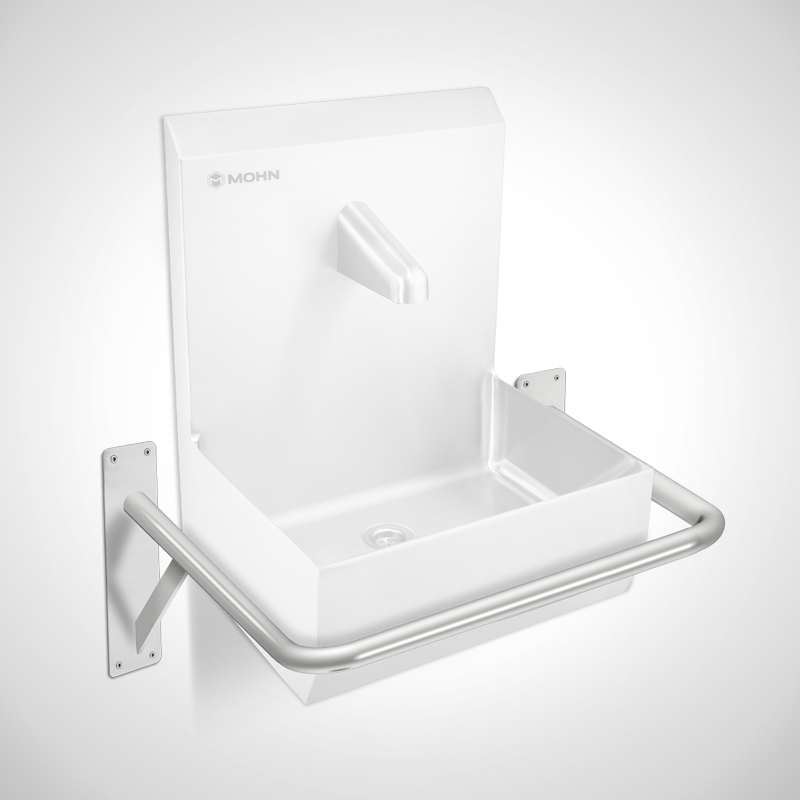

Protection arch Type RSB-HWB-HL 1 for hand wash basin, art. no. 12.00.04.06 Protection arch Type RSB-HWB-HL 1 for hand wash basin, art. no. 12.00.04.06

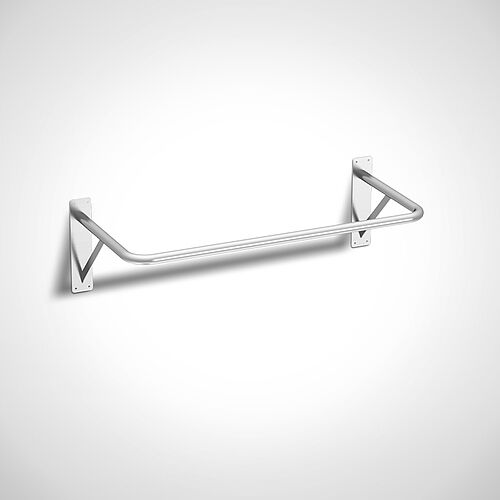

Protection arch Type RSB-WR-HL 2 for multiple wash basin, art. no. 12.00.04.07 Protection arch Type RSB-WR-HL 2 for multiple wash basin, art. no. 12.00.04.07

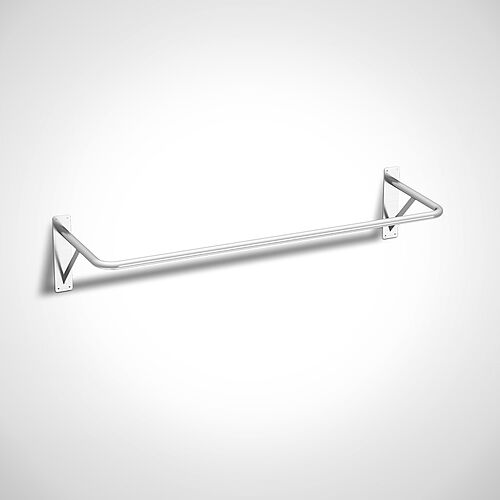

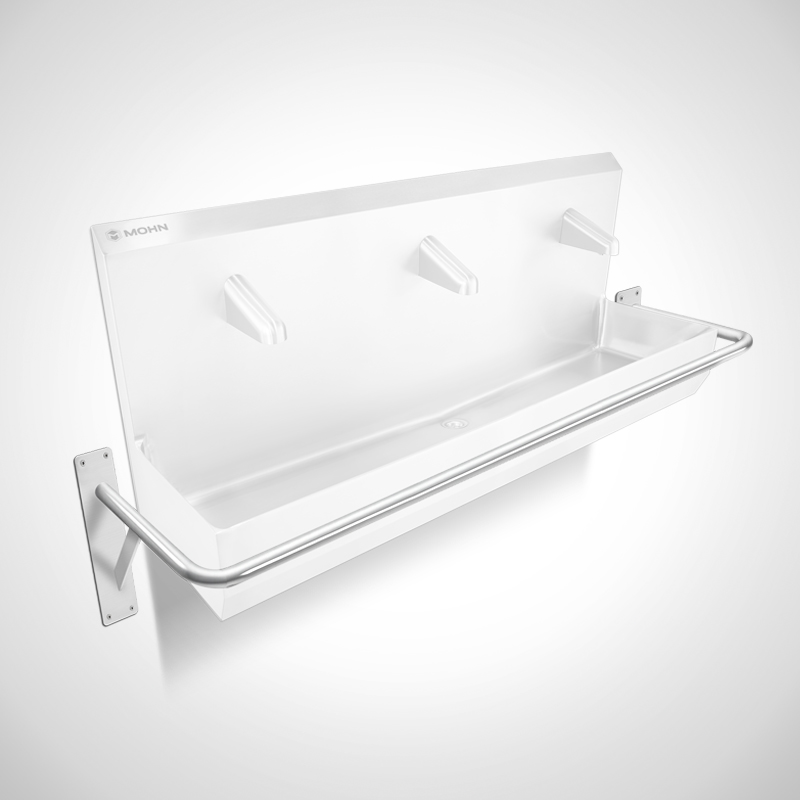

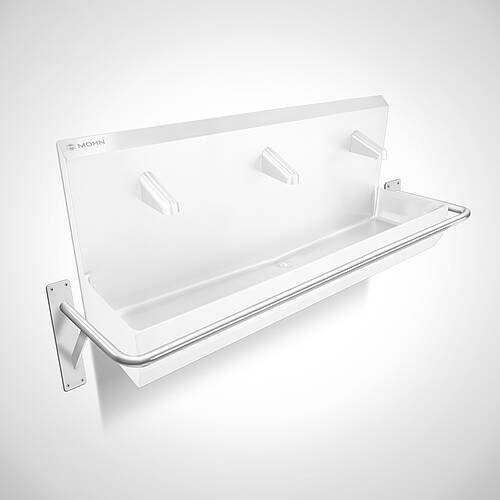

Protection arch Type RSB-WR-HL 3 for multiple wash basin, art. no. 12.00.04.08 Protection arch Type RSB-WR-HL 3 for multiple wash basin, art. no. 12.00.04.08

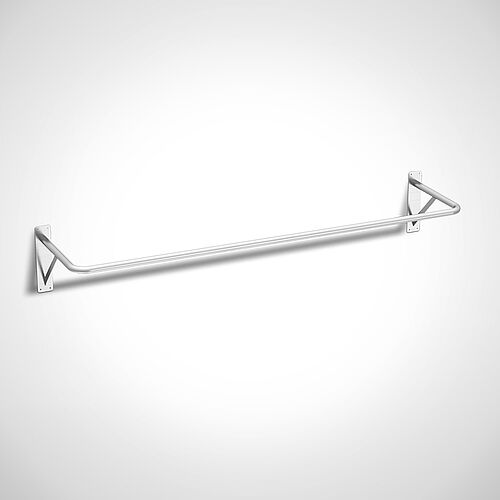

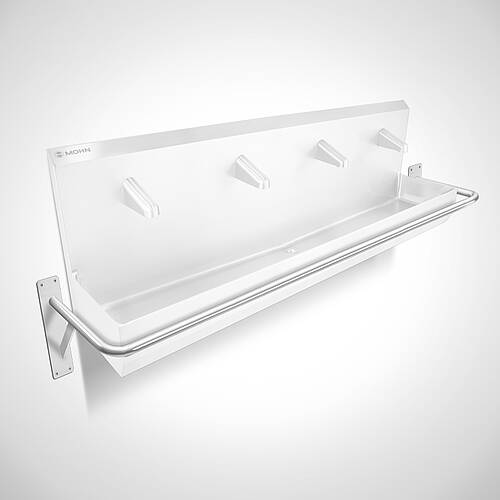

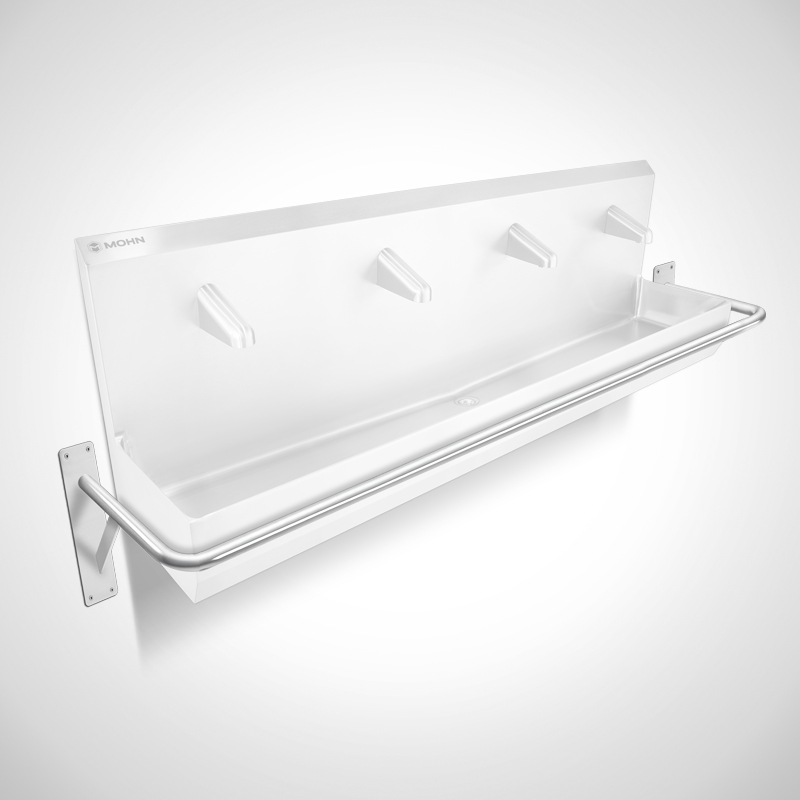

Protection arch Type RSB-WR-HL 4 for multiple wash basin, art. no. 12.00.04.09 Protection arch Type RSB-WR-HL 4 for multiple wash basin, art. no. 12.00.04.09

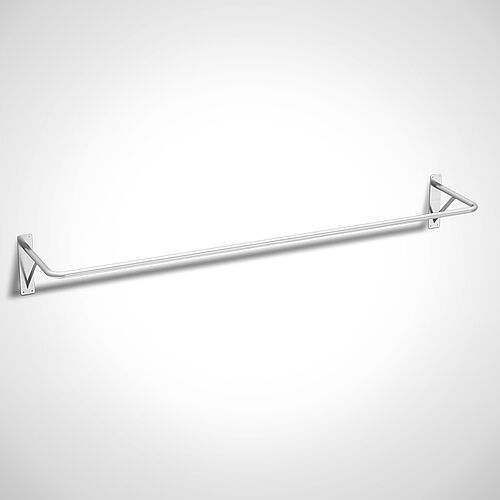

Protection arch Type RSB-WR-HL 5 for multiple wash basin, art. no. 12.00.04.10Protection arch Type RSB-WR-HL 5 for multiple wash basin, art. no. 12.00.04.10

Protection archs
Type RSB

TO PROTECT THE HANDWASHBASIN AND WASHING TUBES FROM DAMAGE

  • Very stable tubular frame Ø 35 x 2.0 mm
  • Robust flange plates 350 x 80 x 4.0 mm
  • with 4 holes each (Ø 6.5 mm) for wall mounting
  • 2 cross struts 30 x 4.0 mm
  • Cleanly welded and brushed surface
  • Different dimensions available

TypeVersionDiameterDimensions
l x w in mm		PDF
RSB-HWB-HL 1suitable for hand washbasin HWB-HL 135 mm (tubular frame)695 x 515 mm12.00.04.06

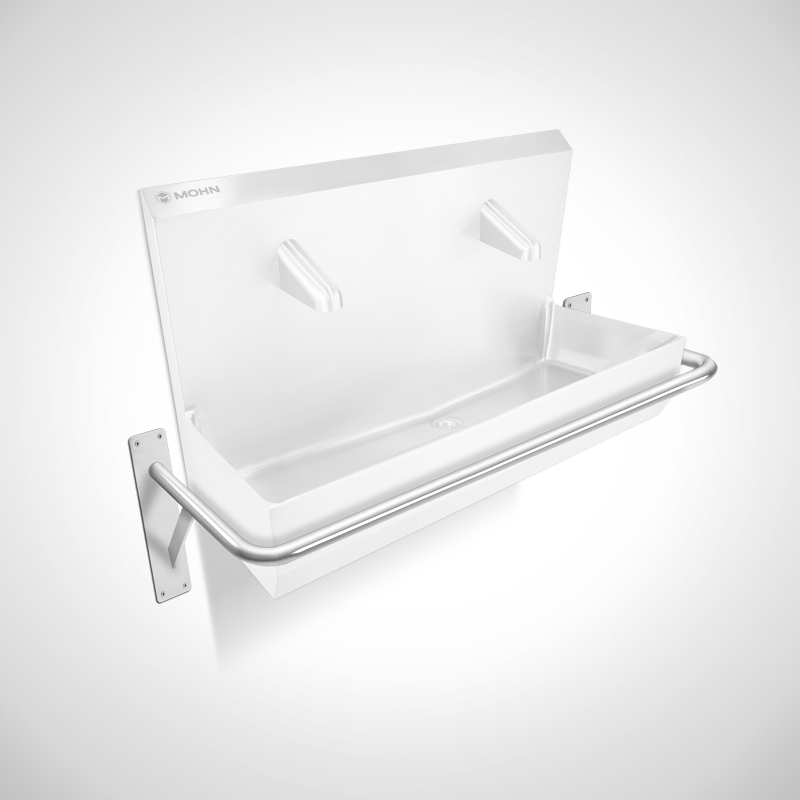

RSB-WR-HL 2suitable for multiple hand washbasin WR-HL 235 mm (tubular frame)1195 x 515 mm12.00.04.07
RSB-WR-HL 3suitable for multiple hand washbasin WR-HL 335 mm (tubular frame)1695 x 515 mm12.00.04.08
RSB-WR-HL 4suitable for multiple hand washbasin WR-HL 435 mm (tubular frame)2195 x 515 mm12.00.04.09

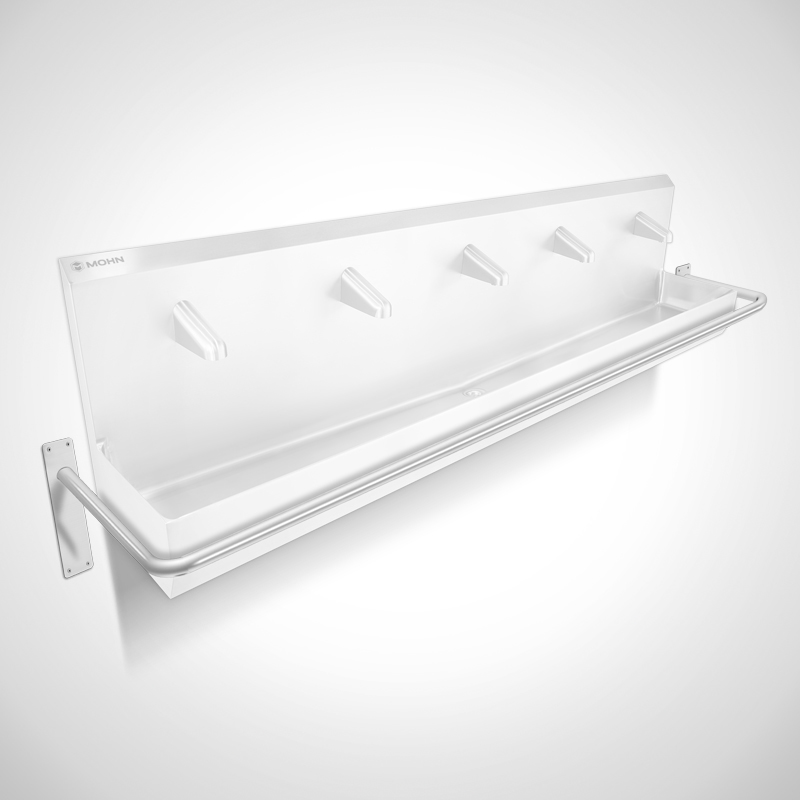

RSB-WR-HL 5suitable for multiple hand washbasin WR-HL 535 mm (tubular frame)2695 x 515 mm12.00.04.10
RSB-HWB-HL 1/35suitable for hand washbasin HWB-HL 1/3535 mm (tubular frame)695 x 455 mm12.00.04.11
RSB-WR-HL 2/35suitable for multiple hand washbasin WR-HL 2/3535 mm (tubular frame)1195 x 455 mm12.00.04.12
RSB-WR-HL 3/35suitable for multiple hand washbasin WR-HL 3/3535 mm (tubular frame)1695 x 455 mm12.00.04.13
RSB-WR-HL 4/35suitable for multiple hand washbasin WR-HL 4/3535 mm (tubular frame)2195 x 455 mm12.00.04.14
RSB-WR-HL 5/35suitable for multiple hand washbasin WR-HL 5/3535 mm (tubular frame)2695 x 455 mm12.00.04.15
We manufacture individually according to customer requirements


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.



We manufacture individually according to customer requirements



Material

Made of stainless steel 1.4301
