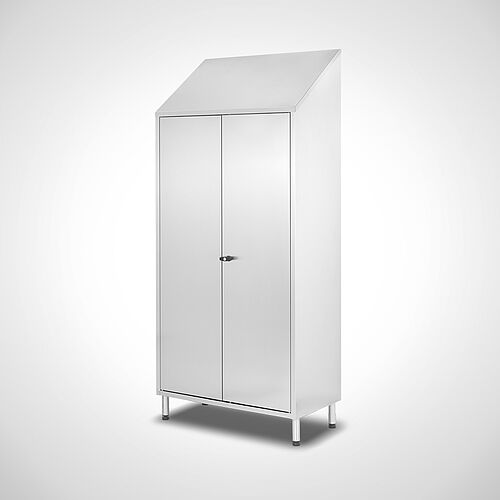

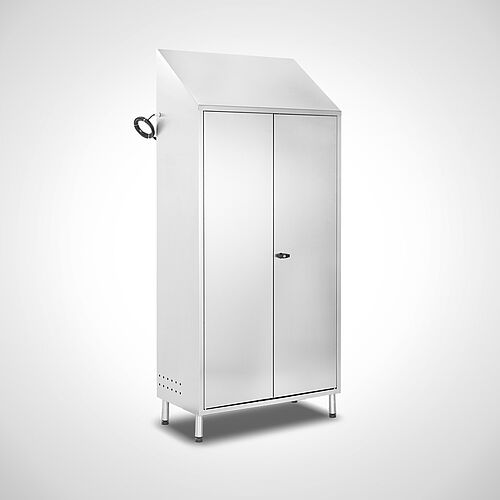

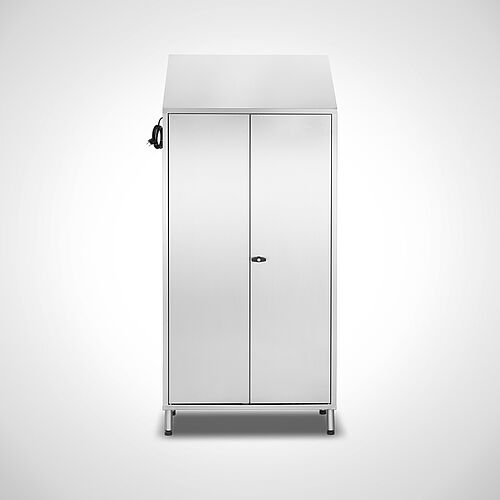

Drying cabinet for clothes Type TSD-I, art. no. 10.00.03.40

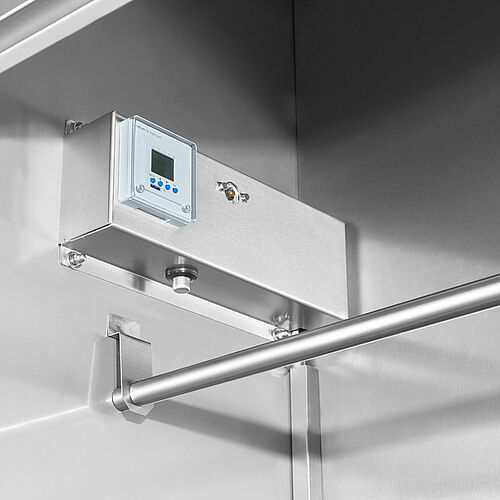

Drying cabinet for clothes Type TSD-I, Interior: daily-timer

Drying cabinet for clothes and with optional drying rack for boots/ shoes Type TSD-I 950 SON, ID 22-63271

Drying cabinet
Type TSD-I

CABINET WITH HOT AIR FAN FOR DRYING CLOTHES

Permanently welded version made of stainless steel
Cabinet body closed on 3 sides
Pitched roof, at the rear 350 mm higher in "hygienic design"
Operator side with 2 wing doors
The door can be locked using a T-handle including a profile cylinder lock

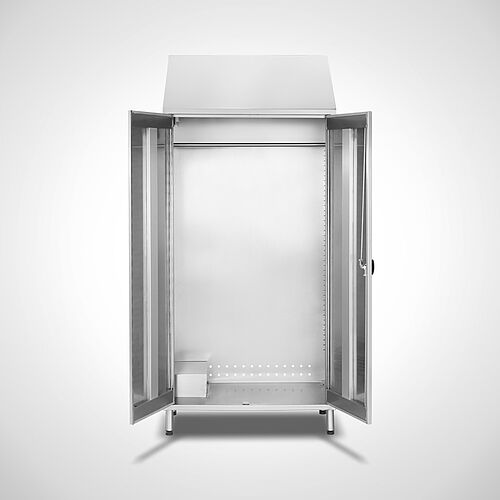

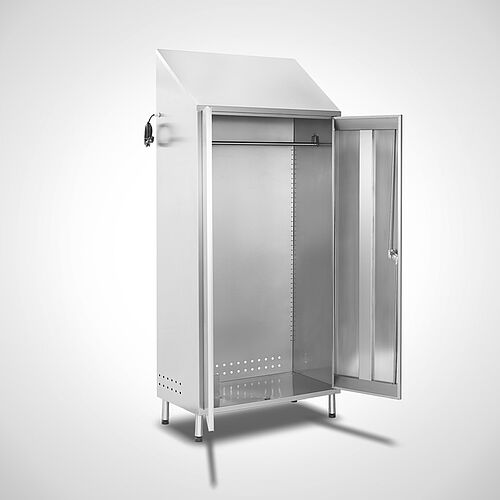

Interior with 1 clothes rail (without clothes hanger)
OPIONAL: Drying rack for boots and shoes

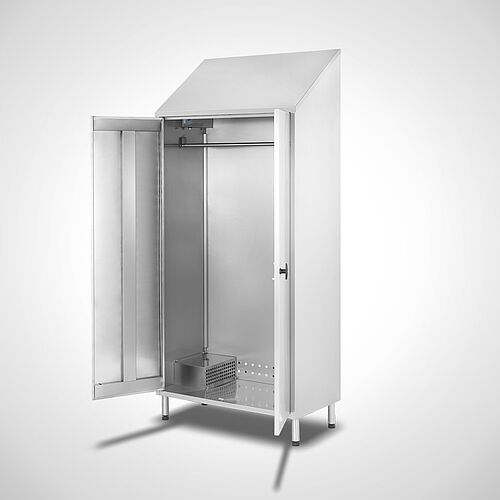

Warm air blower positioned in the interior at the bottom left
Programmable using a daily timer or manually using a switch
4 height-adjustable plastic screw feet (+/- 30 mm)
Standard ground clearance: 150 mm

Type	Version	Dimensions W x D x H in mm	Art.-No. Please mark	PDF
TSD-I 950	Clothes rail	950 x 500 x 2150	10.00.03.4010000340	10.00.03.40
TSD-I 1200	Clothes rail	1200 x 500 x 2150	10.00.03.4110000341	10.00.03.41
TSD-I 1400	Clothes rail	1400 x 500 x 2150	10.00.03.4210000342	10.00.03.42
TSD-I 950 SON	Clothes rail + boot drying rack	950 x 500 x 2150	22-6327122-63271	22-63271
Special dimensions			00.00.00.1000000010

We manufacture individually according to customer requirements

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

Description
Technical Data

Delivery without accessoires. Clothes hanger optional available.

Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.
