Check-In-Station III-Highline (Handdryer)
Check-In-Station III-Highline (Handdryer)
Hygiene station
Type Check-In-Station III Highline
1-lane forcibly guided cleaning and disinfection of the soles + hands
- Highline version with tamper-proof turnstile (10 years guarantee)*
- Hygienically design housing
- SIEMENS LOGO! control, flexible programmable
- Design with left-hand or right-hand passage direction available
- Sensor-operated hand basin with integrated 2-hand automatic soap dispenser
- High-speed handdryer, type Jet-II
- 2-hand automatic disinfection dispenser including tamper-proof sensorics
- Enclosed IP68 sensor for end position detection of the turnstile
- Turnstile: way back electrically released or permanently blocked
- Spring seat technology for saving water, chemicals and energy costs
- Brush rolls removable without tool
- Dosage of the application quantity adjustable
- Optical empty-can message by multi-LED
- Also as dry version available (for ex. bakery industry)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
*for the turnstile mechanism
Material
Rustproof stainless steel 1.4301
Passage Direction
Left to Right
Right to Left
Technical Data
| Power supply | 3 x 400 V/N/PE; 50-60 Hz |
|---|---|
| Performance | 4,0 kW |
| Drain | 2" (DN 50) |
| Water connection | 3/4" AG, Mixing water max. 43° C |
| Fusing | 16 A |

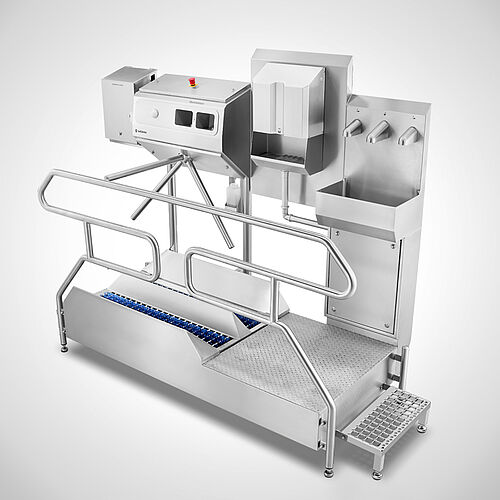

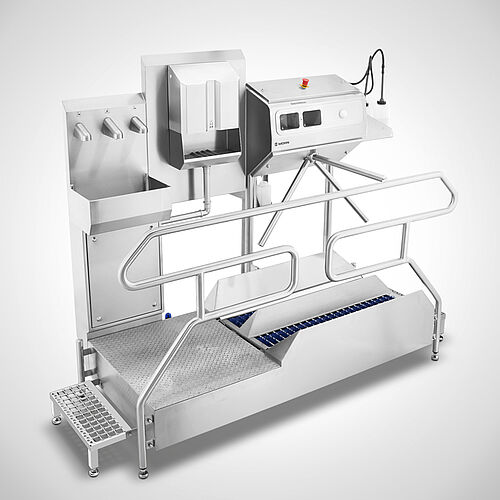

Reference Photos
Accessories
Face Checkpoint
Type FCP-HS
Handrail gate
Type GT
Document tray
Type DA-III
Can container
Type KB-xx A
Can holder
Type KH-CA
Can holder
Type KH-GA
Can holder
Type KH-GV
Can holder
Type KH
Graphic board
Type GBD
Cleaning trolley for brush rollers
Type RWBWSpring cap
Spring cap technology for saving water, chemicals and energy costs
Hygienic-Design
Hygienic and easy-to-clean design to avoid contamination.
Splash-guard
Solid splash-guard and side-step protection in hygienic-design
Control-cabinet
Control-cabinet with locking-lever in hygienic-design
Control
High-quality and user-friendly SIEMENS-LOGO control components.
Handrail
Ergonomic handrail in hygienic-design
Footstep
Safety hygiene footstep with anti-slip rust.
Engine-compartment
High-quality components from well-known manufacturers.
Skintop-gland
High-quality stainless steel SKINTOP cable-gland in hygienic-design.
Hand disinfection
Easily accessible dosing unit for service and maintenance
Turnstile
Robust, high-quality
turnstile mechanism.
10 years warranty!
Sensor technology
Electrically released outward and return routes: 2 encapsulated IP68 sensors for end position detection of the turnstile.
Soap dispenser
Sensor-operated hand basin with integrated 2-hand automatic soap dispenser.
Hand wash basin
All corners in hand basin rounded R20.
Outlet tap
Easy-adjustable sensor in outlet tap. Sensor without disassembly of the hand wash basin easily interchangeable!
