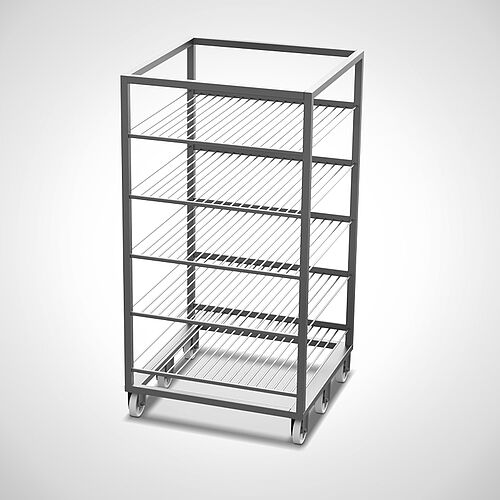

Smoke and cooking trolley Type RKW-VM E5 with 5 layers, art. no. 40.00.10.24 Smoke and cooking trolley Type RKW-VM E5 with 5 layers, art. no. 40.00.10.24

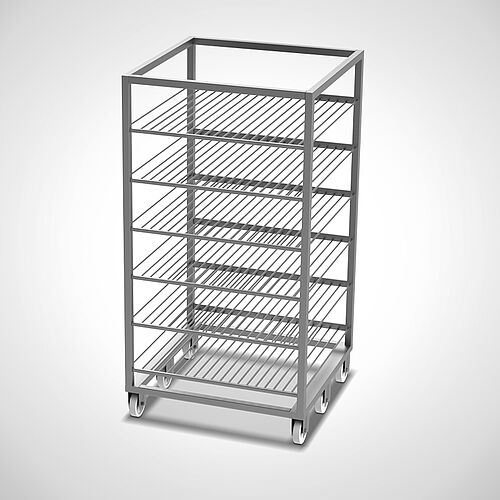

Smoke and cooking trolley Type RKW-VM E6 with 6 layers, art. no. 40.00.10.25 Smoke and cooking trolley Type RKW-VM E6 with 6 layers, art. no. 40.00.10.25

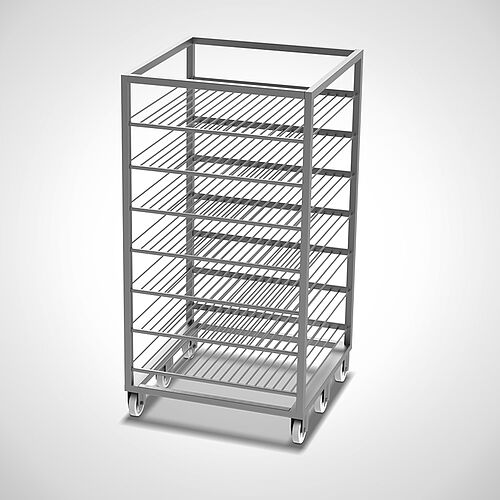

Smoke and cooking trolley Type RKW-VM E7 with 7 layers, art. no. 40.00.10.26 Smoke and cooking trolley Type RKW-VM E7 with 7 layers, art. no. 40.00.10.26

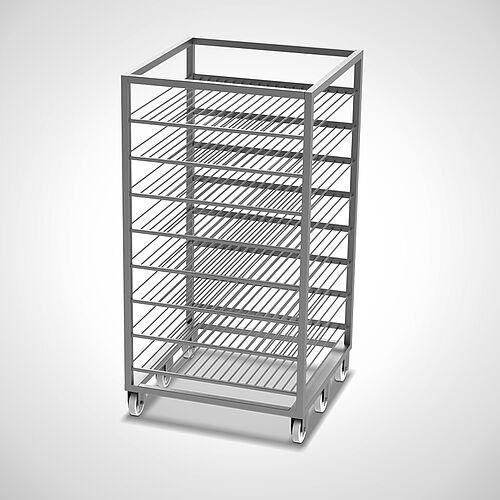

Smoke and cooking trolley Type RKW-VM E8 with 8 layers, art. no. 40.00.10.27 Smoke and cooking trolley Type RKW-VM E8 with 8 layers, art. no. 40.00.10.27

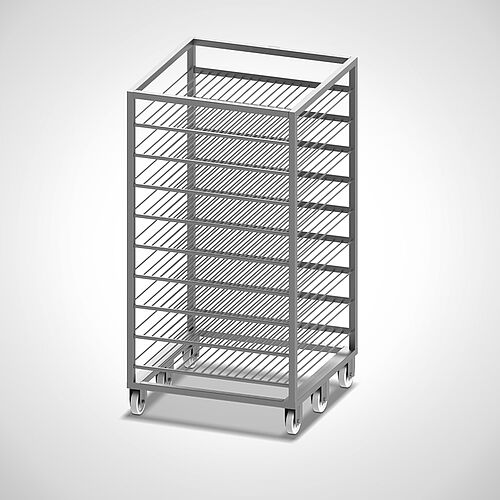

Smoke and cooking trolley Type RKW-VM E9 with 9 layers, art. no. 40.00.10.28 Smoke and cooking trolley Type RKW-VM E9 with 9 layers, art. no. 40.00.10.28

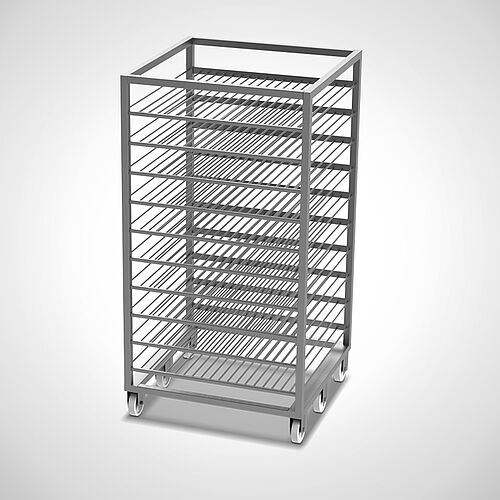

Smoke and cooking trolley Type RKW-VM E10 with 10 layers, art. no. 40.00.10.29Smoke and cooking trolley Type RKW-VM E10 with 10 layers, art. no. 40.00.10.29

Smoke cooking trolley
Type RKW-VM

OUR SPECIAL SMOKE COOKING TROLLEY IN M-SHAPE DESIGN

  • Neatly welded and first class stained design
  • Stable frame construction 40 x 40 x 1.5 m made of stainless steel
  • Frame construction above with TARA badge on both sides
  • 6 different versions in terms of number of layers
  • 17 welded round tube grids Ø 10 mm
  • Distance between the round tube profiles: 50 mm
  • Distance between floors 330 mm, lowest floor 300 mm (floor)
  • Total load max. 750 kg
  • 6 polyamide fixed castors (Ø 150 mm), middle pair of wheels increased for tilting moment
  • Polyamide wheels designed for up to 130 ° C
  • Stable wheel carrier made of profile tube 80 x 40 x 2 mm

TypeFloorsfloors
distance		Dimensions
W x D x H in mm		PDF
RKW-VM Form "custom made"on requeston requeston request40.00.09.30
RKW-VM 5E5330 mm1015 x 1000 x 195040.00.10.24
RKW-VM 6E6330 mm1015 x 1000 x 195040.00.10.25
RKW-VM 7E7330 mm1015 x 1000 x 195040.00.10.26
RKW-VM 8E8330 mm1015 x 1000 x 195040.00.10.27
RKW-VM 9E9330 mm1015 x 1000 x 195040.00.10.28
RKW-VM 10E10330 mm1015 x 1000 x 195040.00.10.29
Special dimensions
Heat resistant wheel Type RH 150_280° (-70 up to 280°C; 800kg ) 29000001
Heat resistant wheel Type RH 150_150° (-40 up to 150°C; 700kg) 99900053
Cast iron wheel Type RA-GK 150  93000066
We manufacture according to customer requirements!
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

We manufacture your smoke and cooking trolley according to your requirements with regard to frame construction, higher loading capacity, number of layers, layer space, handles, wheel arch design, wheels and dimensions.





Material

Made of stainless steel 1.4301





    Advantages

    • Completely made of stainless steel
    • Proper welded and stained frame-construction
    • Heat-resistant, long-living wheels





    Options

    • Closed wheel case
    • Wheels with roll-and ball bearing
    • Floor and ground clearance on request
    • Higher loading capacity on request
