Sausage hanging trolleys

Sausage hanging trolley trolley
Type WAW

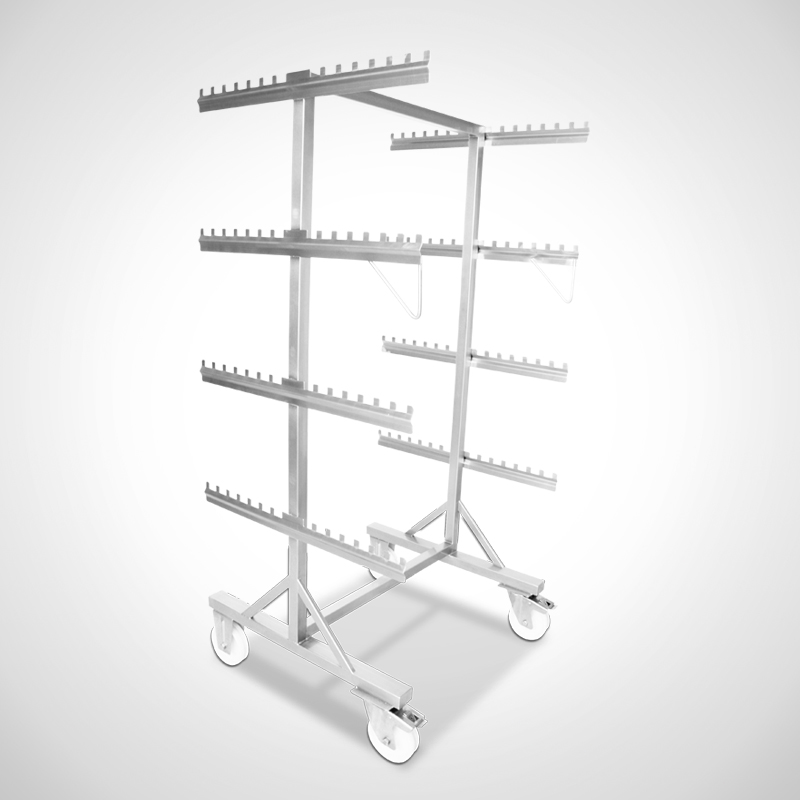

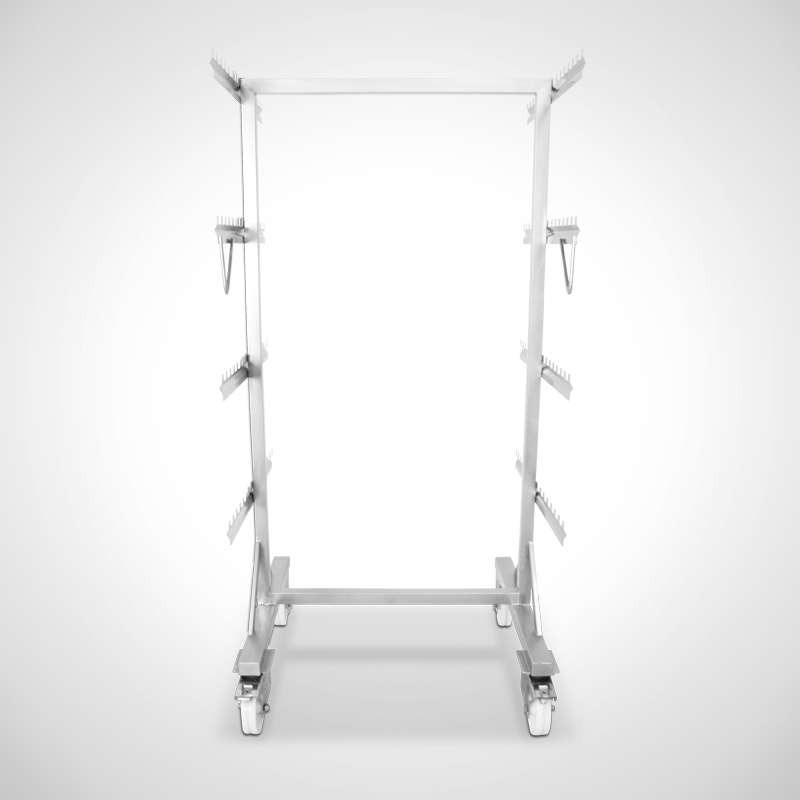

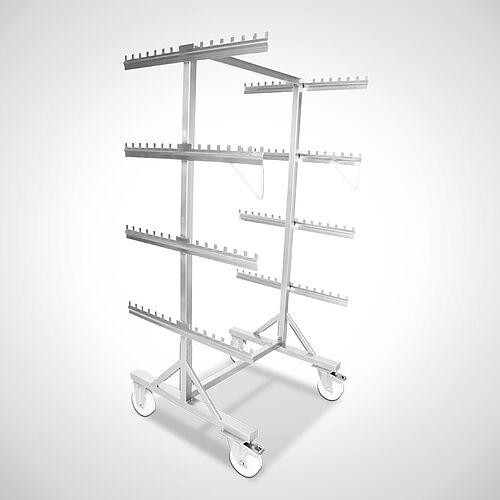

Standard sausage hanging trolley

  • Firmly welded frame construction
  • 4 floors, distance between floors: 450 mm
  • Bottom level at a height of 550 mm

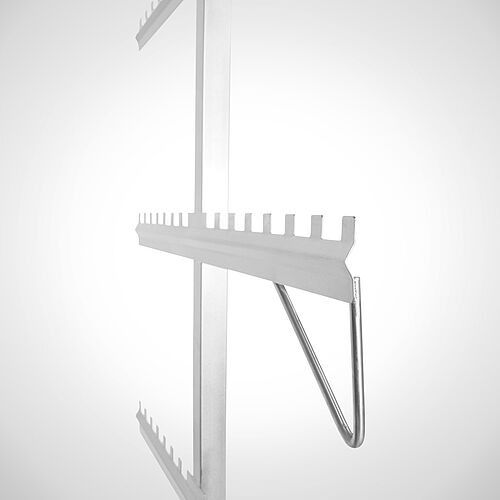

  • Layers with U-cutouts made of 2 mm thick stainless steel sheet
  • Capacity per floor: 17 smoking sticks
  • For smoke stick lengths: 900 or 1000 mm
  • 2 push handles made of round steel
  • Substructure with diagonal struts
  • 2 swivel castors and 2 fixed castors
  • Wheels made of polyamide, Ø 125 mm
  • Stainless steel wheel stands

TypeFloorsSmoke stick lengthDimensions
W x D x H in mm
PDF
WAW-4 E 85-754900 mm + 1000 mm850 x 750 x 190049.00.01.30
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

We manufacture sausage hanging trolleys according to your requirements with regard to frame construction, number of floors, floor design, floor space, handles, wheel arch design, wheels and dimensions.



Material

Made of  rustproof stainless steel 1.4301




Options

  • Closed wheel case
  • Wheels with roll-and ball bearing
  • Floor and ground clearance on request
  • Higher loading capacity on request




Advantages

  • Completely made of stainless steel
  • Proper welded and stained frame-construction
