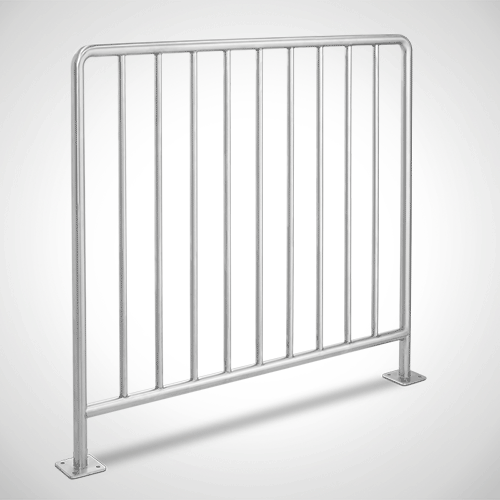

Locking bracket animation: illustration of a retrofit attachment to railings

Locking bracket "Pig's ear" Type GSB-I with pipe clip for screwed attachment to a railing, item no. 10.00.00.88

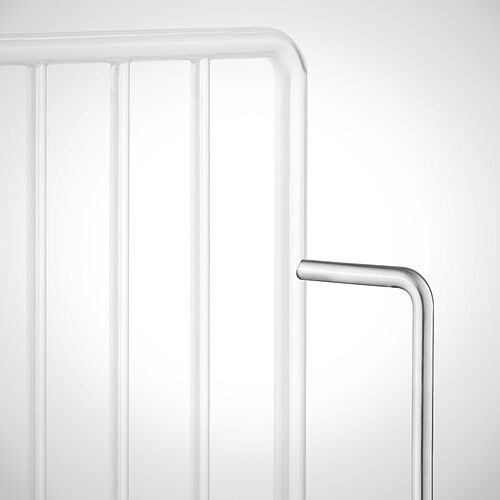

Locking bracket "Pig's ear" Type GSB-II for retrofitting to a railing, item no. 74.04.70.19

Locking bracket "Pig's ear" Type GSB-III with flange for screwing to the wall, item no. 74.04.70.99

Locking bracket for rail
Type GSB

FOR RETROFIT attachment AS A PASSAGE BARRIER

Hygienically curved tube profile
Completely made of stainless steel
Different designs and dimensions available
Versions available for screwing or welding to railings
Versions for wall mounting also available
Cleanly deburred notch for welding
Material thickness: # 2.0 mm
Tube diameter: Ø 42.4 mm

Type	Version	Depth in mm	Länge in mm	Art.-No. Please mark	PDF
GSB-I	For screwing on with pipe clamp	190 mm	470 mm	10.00.00.8810000088	10.00.00.88
GSB-II	For welding on	190 mm	470 mm	74.04.70.1974047019	74.04.70.19
GSB-III	For screwing on - wall mounting	190 mm	470 mm	74.04.70.9974047099	74.04.70.99

We manufacture individually according to customer requirements

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

Description
Downloads

We manufacture according to your wishes.

Material

Made of stainless steel 1.4301

DESCRIPTION

The stainless steel locking bracket, also known as a "pig's ear", is retrofitted to existing stainless steel railings with a tube diameter of 42.4 mm.
