Control-Star (two lane) "Highline"
Control-Star (two lane) "Highline"
Hygiene Station

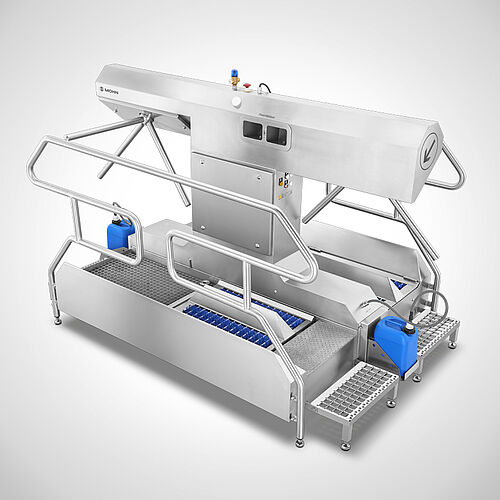

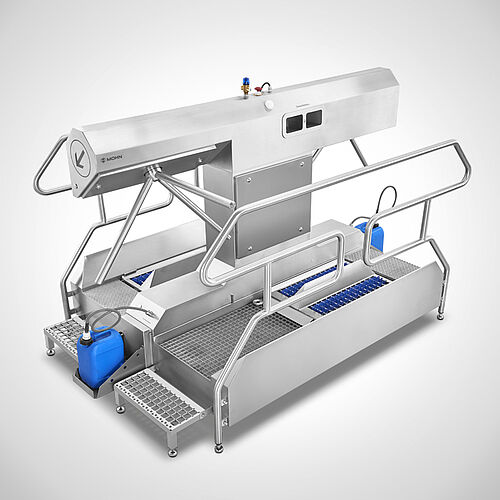

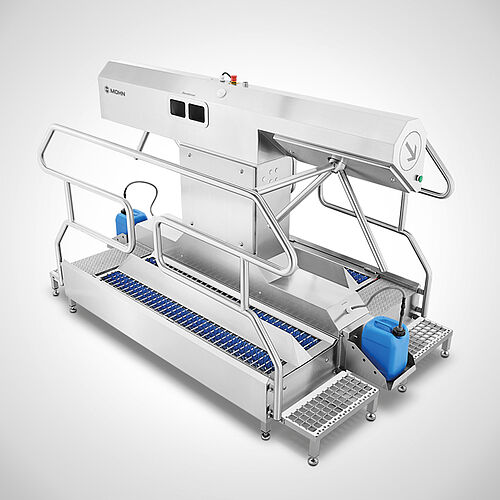

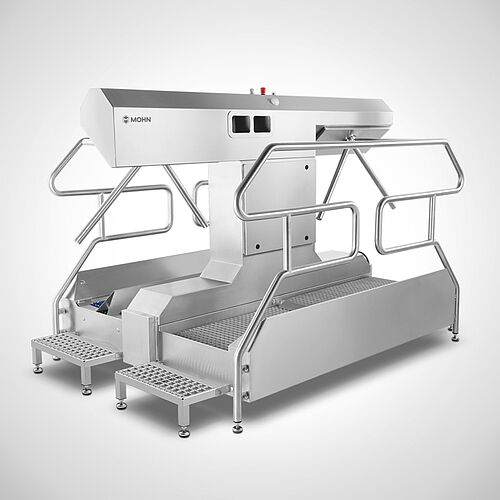

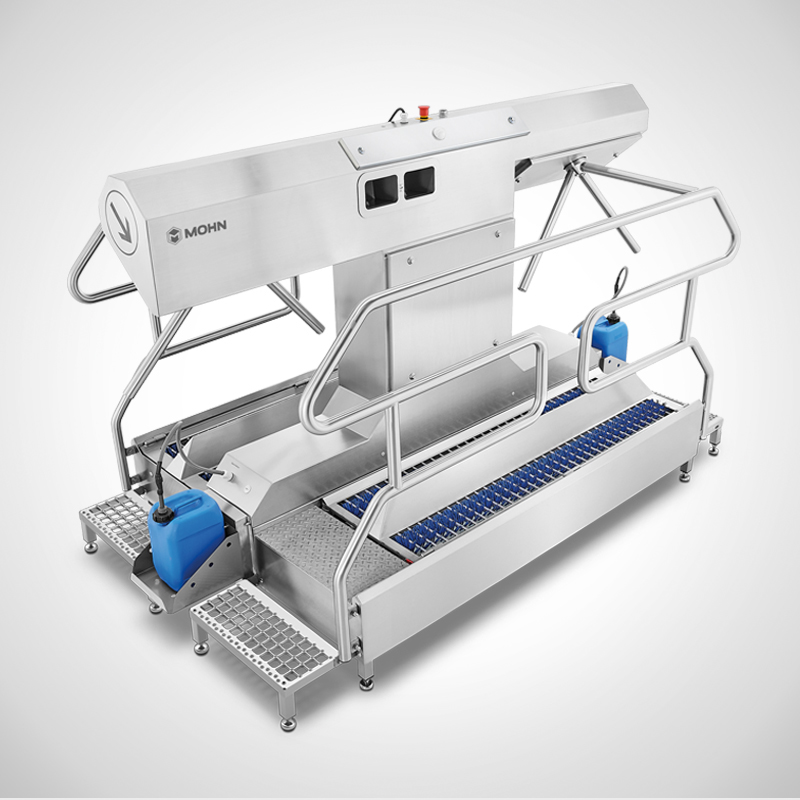

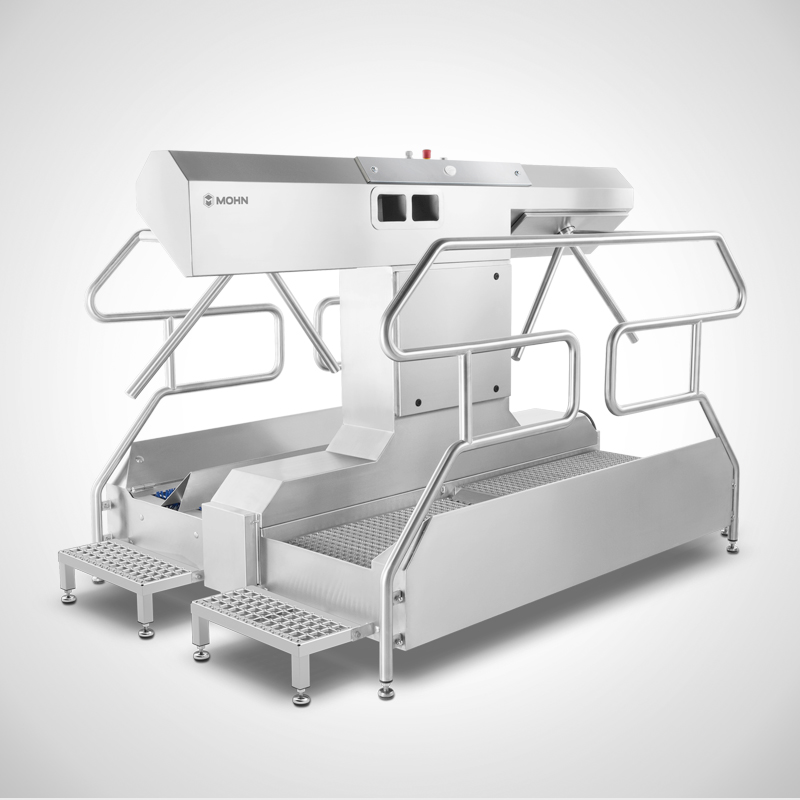

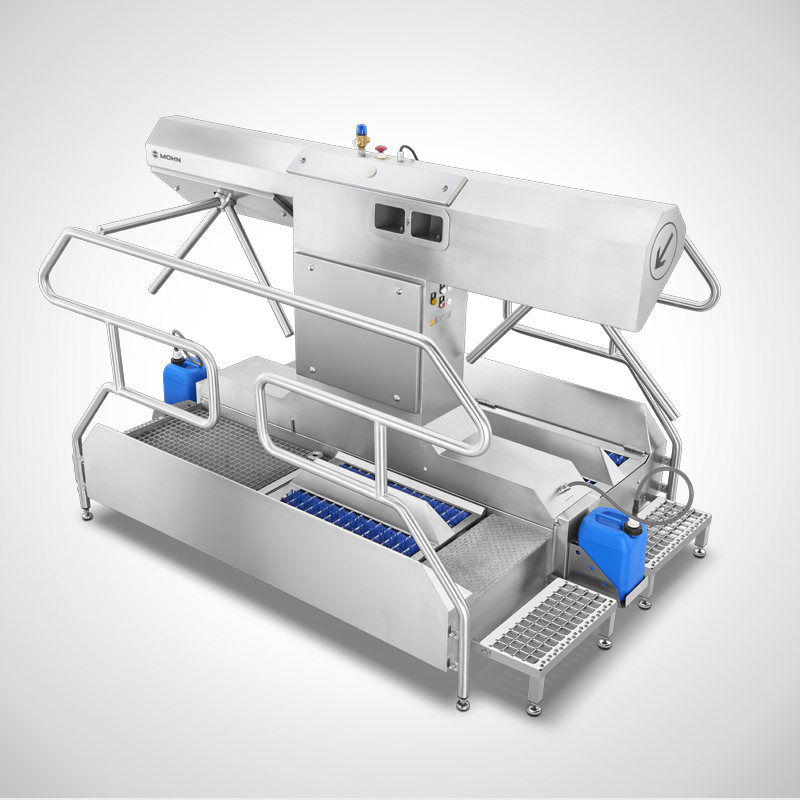

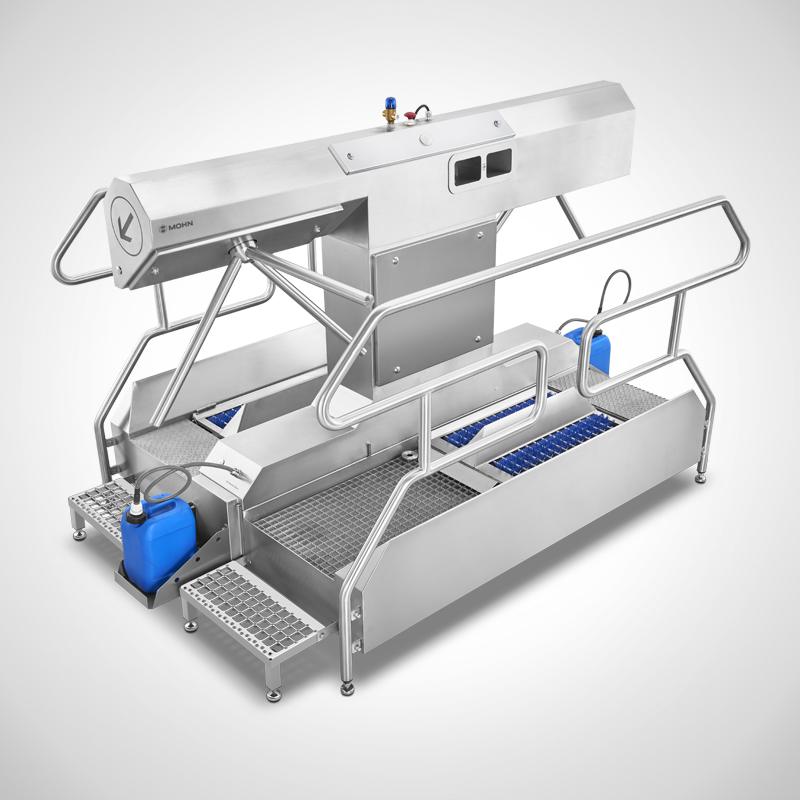

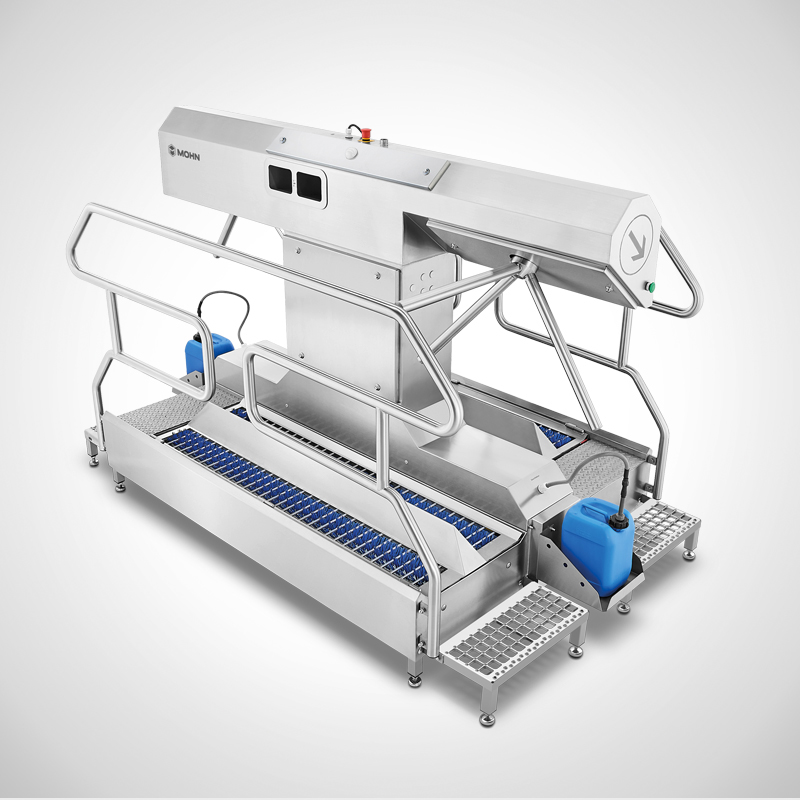

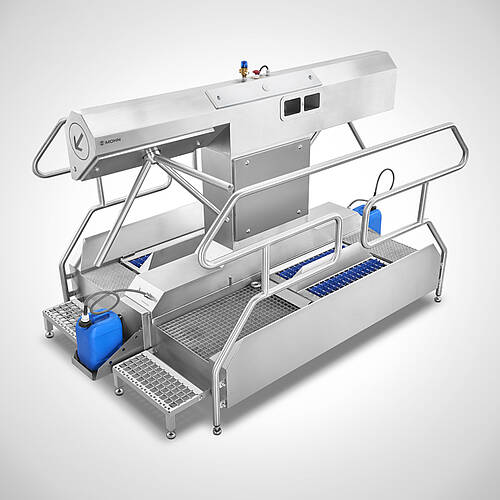

Type Control-Star Highline
2-lane, forcibly guided disinfection of the soles + hands Separate input + output track for heavily frequented production access
- Highline version with vandalism-proof turnstile (10 years guarantee)*
- Including freely programmable Siemens Logo control unit
- 2-hand automatic disinfection dispenser including tamper-proof sensorics
- Encapsulated IP68 sensor for end position detection of the turnstile
- Spring cap technology for saving water, chemicals and energy costs

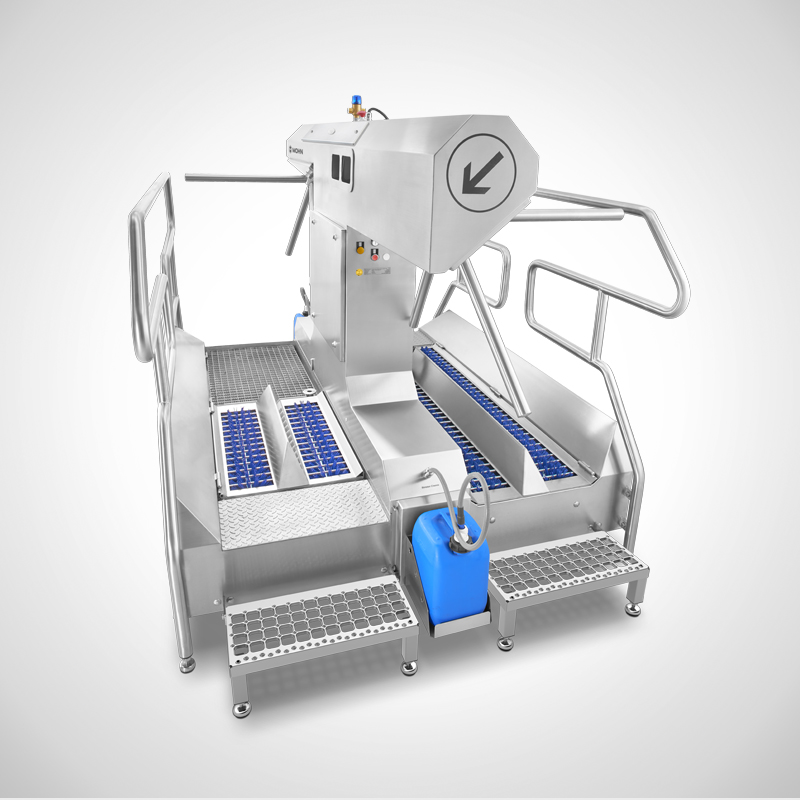

- At the entry side, with brush roll module instead of walk-through disinfection basin and draining zone
- Brush roll length 1600 mm
- Brush rolls removable without tool
- Dosage of the application quantity adjustable
- Disinfection basin with time-controlled detergent supply
- Optical empty-can message by multi-LED
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
*on turnstile mechanics
Material
Made of stainless steel 1.4301
Passage direction
Type 2000-D/B

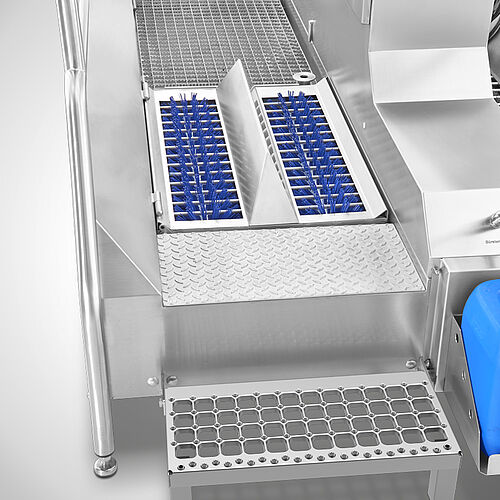

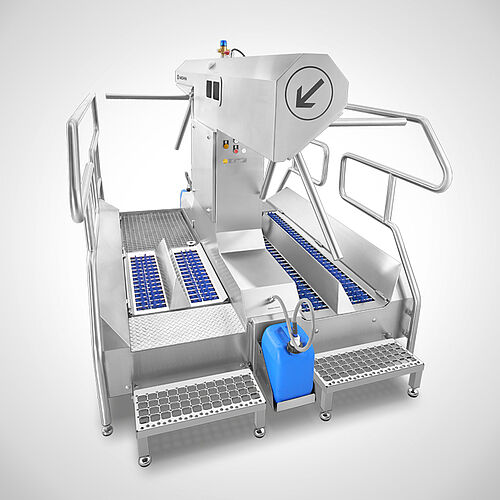

Entrance: disinfection basin and dripping zone - Drawing shows passage direction left to right
Exit: brushes 1600 mm length - Drawing shows passage direction right to left
Alternatively: Alignment mirror-inverted
Technical Data
| Power supply | 3 x 400 V/N/PE; 50-60 Hz |
|---|---|
| Performance | 1,25-1,5 kW |
| Drain | 2x 2" (DN 50) |
| Water connection | 3/4" AG, Mixing water max. 43° C |
| Fusing | 16 A |

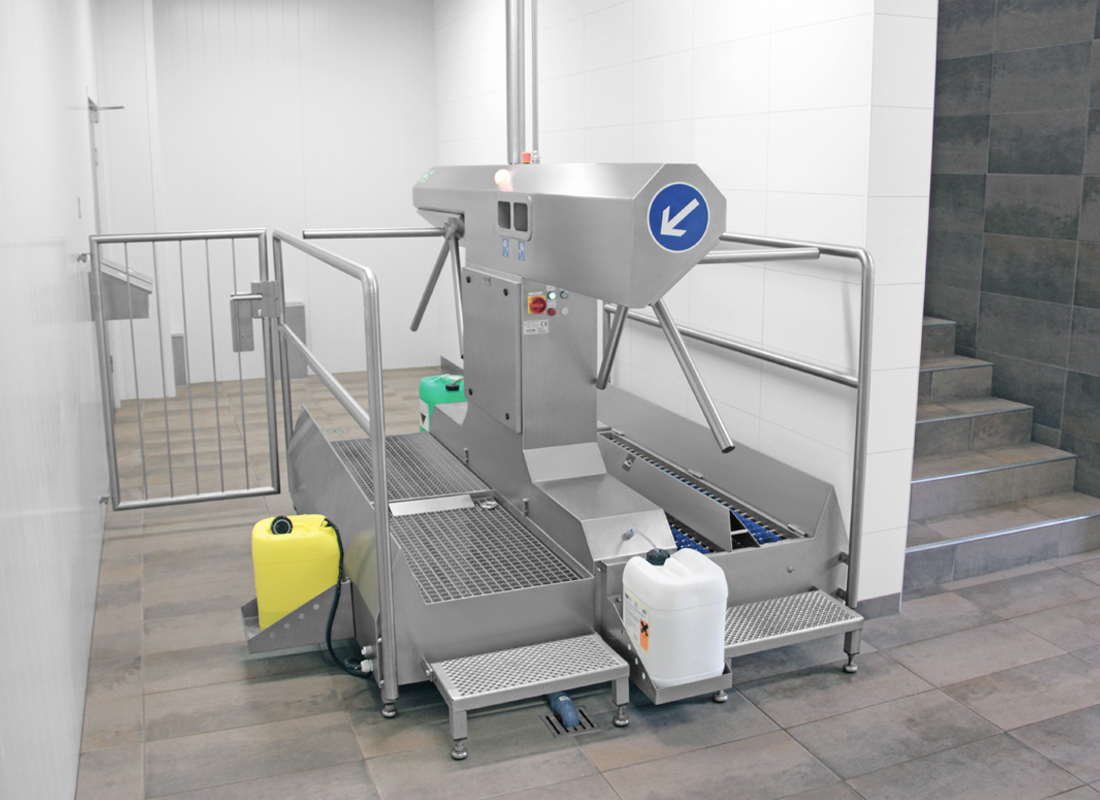

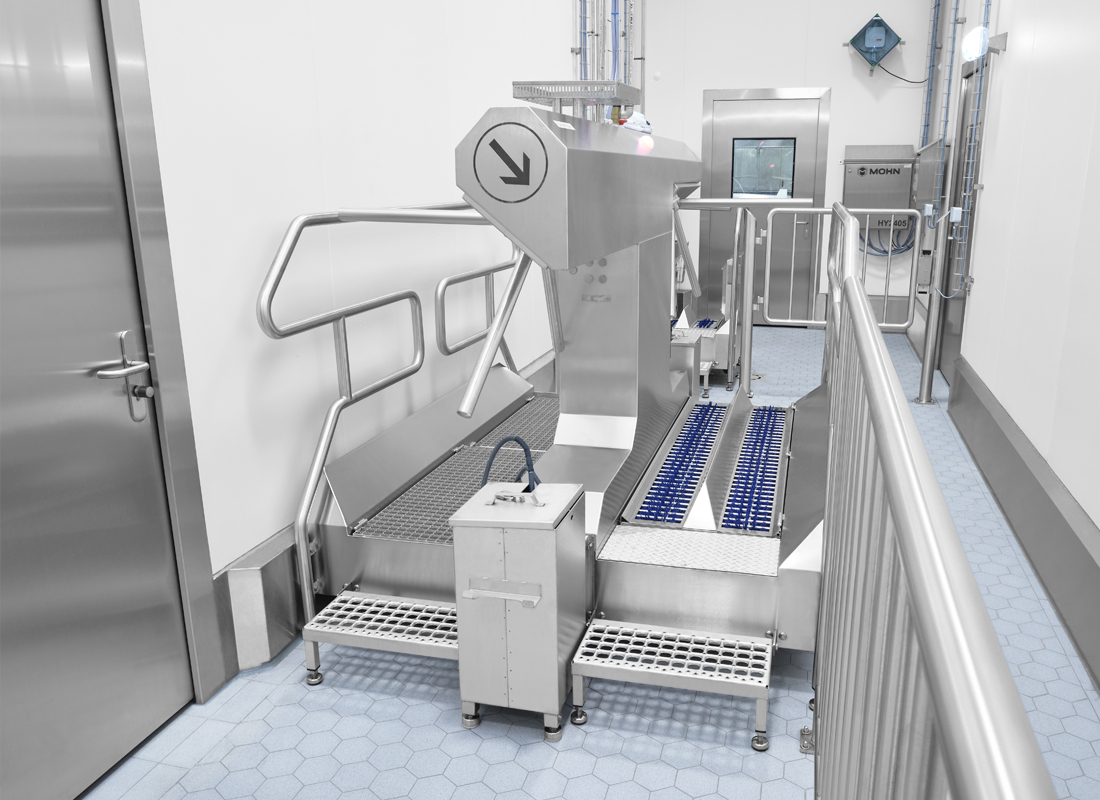

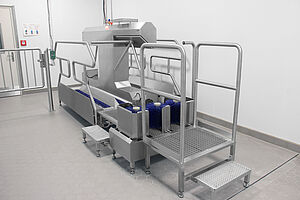

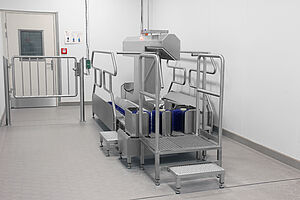

Reference Photos
Downloads
Accessories
Boot-cleaning machine
Type Boot Star I
Knife basket chute
Type MKRU
Document tray
Type DA-III
Can container
Type KB-xx A
Graphic board
Type GBD
Cleaning trolley for brush rollers
Type RWBWSpring cap
Spring cap technology for saving water, chemicals and energy costs
Hygienic-Design
Hygienic and easy-to-clean design to avoid contamination.
Splash-guard
Solid splash-guard and side-step protection in hygienic-design

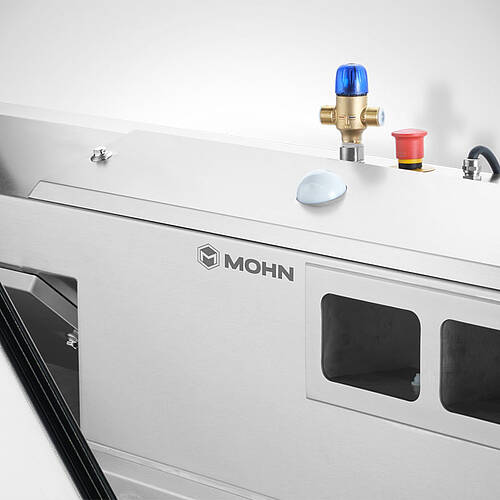

Control-cabinet
Control-cabinet with locking-lever in hygienic-design
Control
High-quality and user-friendly SIEMENS-LOGO control components.
Handrail
Ergonomic handrail in hygienic-design
Footstep
Safety hygiene footstep with anti-slip rust.
Engine-compartment
High-quality components from well-known manufacturers.
Skintop-gland
High-quality stainless steel SKINTOP cable-gland in hygienic-design.
Hand disinfection
Easily accessible dosing unit for service and maintenance
Turnstile
Robust, high-quality
turnstile mechanism.
10 years warranty!
Sensor technology
Electrically released outward and return routes: 2 encapsulated IP68 sensors for end position detection of the turnstile.
