Cabin washing system, 15-25 stacking container/h

Cabin washing system
Type KWA-STB

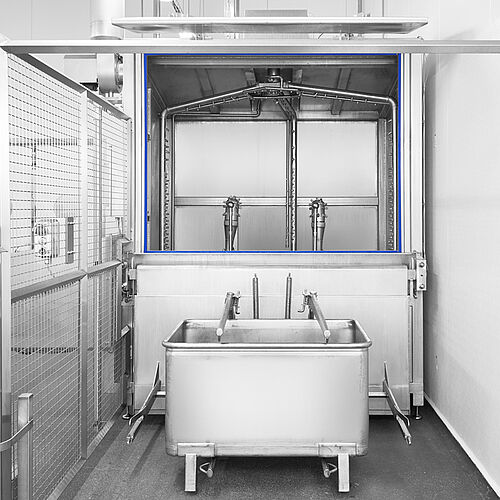

For optimal cleaning of stacking or brine container

  • Cleaning of 15-25 stacking or brine containes hourly with normal to strong soiling

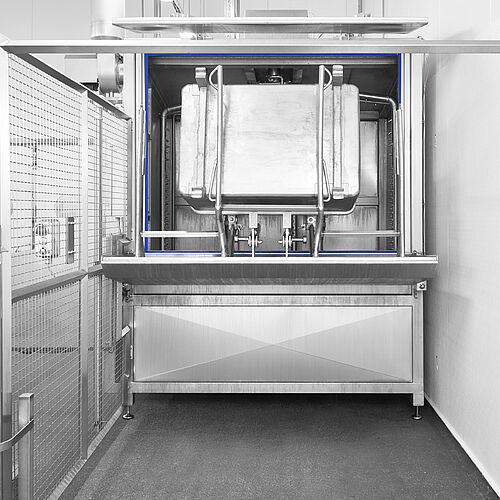

  • Due to 180° position of the container, the cleaning of all sides is possible (also in the area of the bottom)

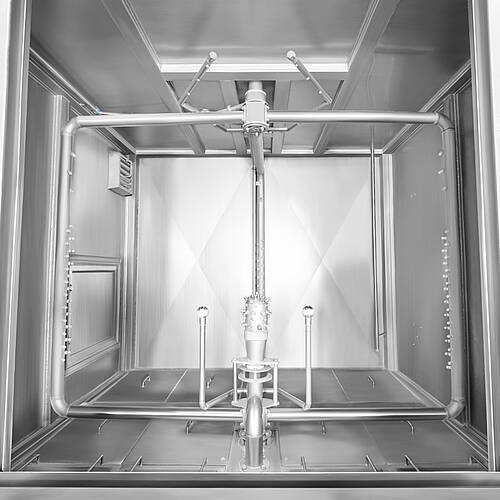

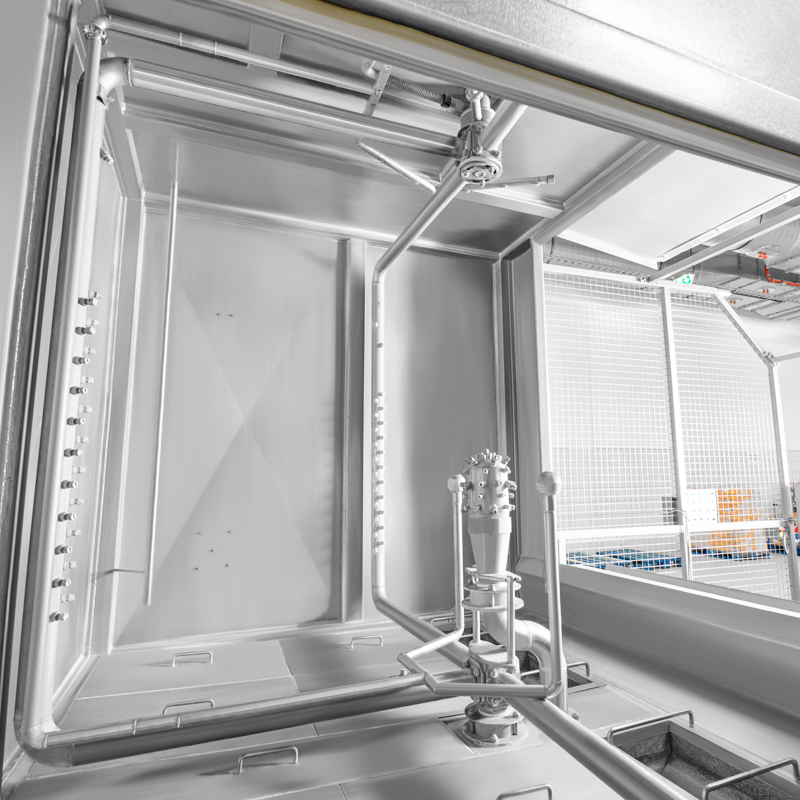

  • Hedgehog nozzle enables thorough cleaning of the bin interior, nozzle head can be screwed off and is thus easy to clean
  • Interior floor with sloped plates above washing tank, washing water is guided from the machine outside into the filter area and from there into the tank.
    Advantage: No direct soiling in the machine interior, no coarse dirt in the tank
  • SIEMENS S7-1200 control with SIEMENS touch screen monitor and display of all parameters
  • Wash programs with selectable treatment durations (e.g. short, medium, long)
  • Large washing tank for taking up large amounts of dirt (e.g. protein soiling)
  • Low energy consumption, tank double-wall isolated
  • Stable, completely welded machine with massive frame and high material thicknesses
  • Strong 15 kW EDUR stainless steel centrifugal pump 1500l/ min at 4 bar wash pressure
  • All gear motors can be easily dismounted via shrink disc connections

TypeCapacityPower / hPDF
KWA-STB1x stacking container/ brine container15-25 container11.10.02.89
Drum filter for automatic dirt discharge  11100273
Vapour exhaust 1500 m³/ h at 500 Pa  11100274
Direct tank heater via steam 11100275
Indirect tank heater via steam 11100276
Tank heater with hot water or thermal oil heat exchanger 11100281
10 kW electric boiler for heating the flushing water 11100277
20 kW electric boiler for heating the flushing water 11100279
Steam heat exchanger to heat the final rinsing water 11100278
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Made of rustproof stainless steel 1.4301


Description

Dimensions with lateral tank: width 3,530 x depth 5,025 x height 3,000 mm



Options

  • Drum filter for automatic dirt discharge Article no. 11.10.02.73
  • Vapour exhaust 1500 m3/ h at 800 Pa Article no. 11.10.02.74
  • Direct tank heater via steam Article no. 11.10.02.75
  • Indirect tank heater via steam Article no. 11.10.02.76
  • Tank heater with hot water or thermal oil heat exchanger Article no. 11.10.02.81
  • 10 kW electric boiler for heating the flushing water Article no. 11.10.02.77
  • 20 kW electric boiler for heating the flushing water Article no. 11.10.02.79
  • Steam heat exchanger to heat the final rinsing water Article no. 11.10.02.78
  • Special support for similar container sizes on request

Technical Data

Power supply3x 400 V/ N/ PE (depending on the equipment)
DrainDN 50 (discharge in bottom drain)
Water connection3/4“, temp. 10-85° C, min. 3-6 bar
Tank capacity2000 Ltr.
Air connection1/2“
Exhaust airDN 250
Hot water connection (option)1 1/4“(for supply and return)
Steam connection (option)1-6 bar (direct or indirect)
Power rating steam heating32 kW
Power rating electric heating (10 kW)approx. 50-60 kW (incl. 10 kW flushing boiler)
Power rating electric heating (20 kW)approx. 50-60 kW (incl. 20 kW flushing boiler)
Power rating hot water heating43 kW
