Spare parts case

Spare parts case for hygienic stations
Type EK-H1

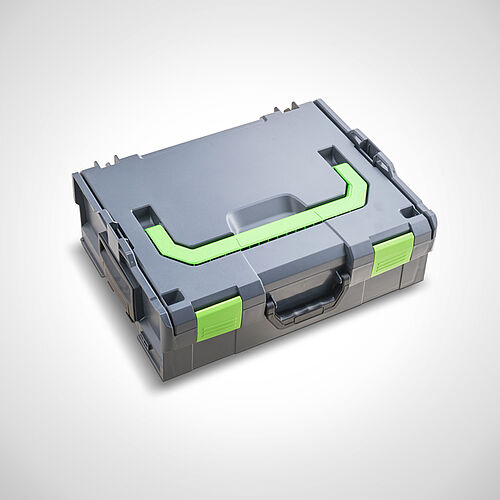

Spare parts package in practical system case with shadowboard

  • System case made of unbreakable ABS plastic
  • Shadowboard" organiser system made of rigid foam
  • Shadowboard provided with item no.
  • Spare parts package for Highline hygiene stations,
    detailed description see below
  • 22-piece spare parts package

TypeVersionDimensions
W x D x H in mm
PDF
EK-H1incl. 22-piece spare parts package442 x B 357 x H 117 mm99.90.09.99
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

System case consisting of high-quality ABS plastic.
Hard foam insert "Shadowboard



Description

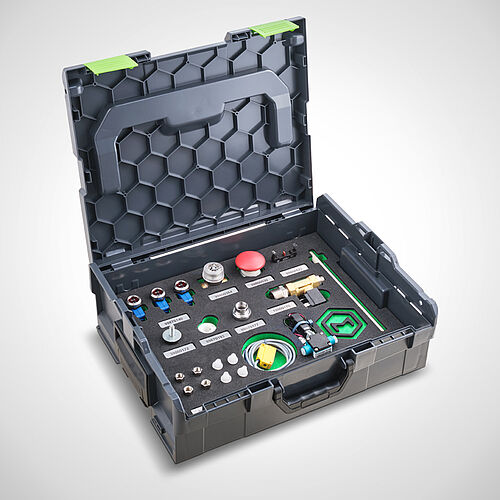

Spare parts package for Highline hygiene sluices consisting of:

  • 4 pieces check valves 1/8"
  • 4 pieces full cone jet nozzles
  • 3 pieces 24 V - sensors
  • 1 piece rubber buffer/ stopper
  • 1 piece check valve 3/8"
  • 2 pieces float for suction lance
  • 1 piece inductive sensor
  • 1 piece NC contact for emergency stop button
  • 1 piece Hygienic emergency stop button
  • 1 piece 24 V solenoid valve
  • 1 piece Flow rate controller
  • 1 piece Dosing pump
  • 1 piece kneading hose for dosing pump



Advantages

  •     Functionality in perfection

The highly innovative click mechanism enables non-slip stacking and secure connection of the system cases/spare parts cases.

The system cases can be connected and separated again with just one movement.

  •     Unlimited flexibility and brilliant order

Foam insert "Shadowbord" for perfect transport of spare parts prevents unintentional mixing of contents, even when the spare parts case is not fully loaded

  •     Comfortable handling

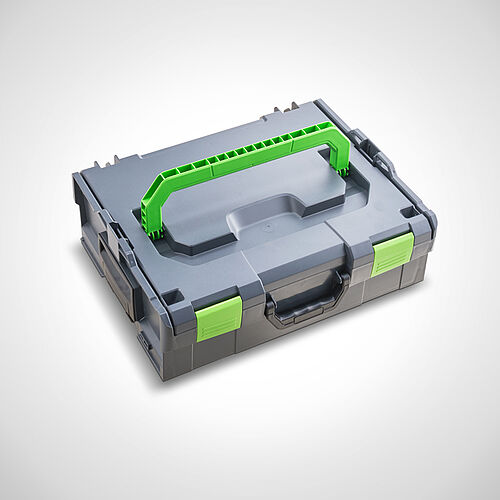

High carrying comfort due to ergonomically shaped carrying handle and lateral recessed grips made of soft plastic.

The practical click mechanism makes it possible to transport several system cases/spare parts cases at the same time.

  •     Extreme stability

The lightweight, extremely high-quality ABS plastic guarantees maximum break resistance.
