External dosing unit
External dosing unit
External dosing unit
Type DE-SA

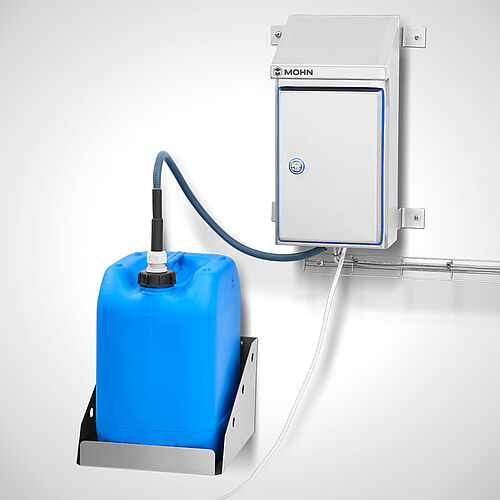

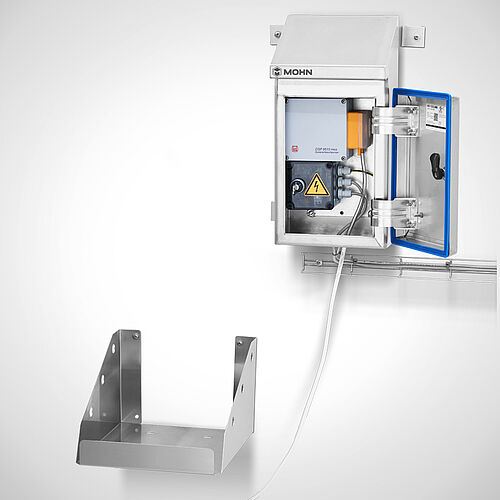

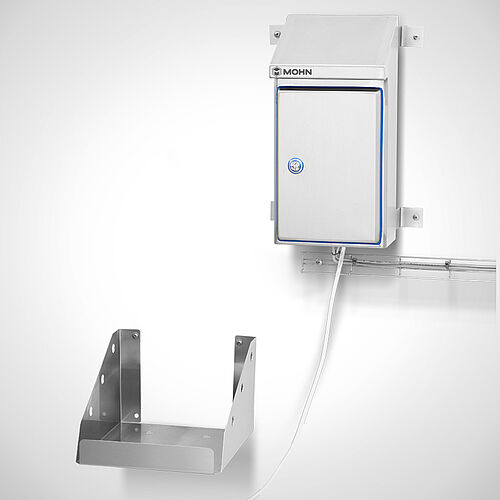

external dosing unit IN HD CONTROL CABINET
- Rittal "Hygienic-Design" stainless steel control cabinet
- Wall-mounted sloping-roof design
- Including wall spacers (50mm) made of solid material
- Special stainless steel cable entries (below the control cabinet)
- Complete including:
- Saier dosing pump DSP9510
- Key switch
- Retaining plate
- Small and fastening material
- Open can holder Type KH-II (1x 10 kg container)
- Degree of protection IP 69K
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Housing made of rustproof stainless steel 1.4301
Description
The robust dosing hose pump installed in the stainless steel "hygienic-design" control cabinet alternatively solves dosing technology tasks for the sole cleaning machines integrated in hygiene locks, which are equipped with an injector system (Venturi dosing system) as standard.
Due to the self-priming pump principle of the hose pump, the so-called "ventilation problem" is a thing of the past. The pumps of the type DSP9510 are characterized by generously dimensioned DC motors, which, together with a robust gear unit, can be expected to have a long service life. The dosing hose pump DSP 9510 can be set in the delivery rate between 5 and 200 ml / min.
Technical Data
| Operating voltage | 230 V; 50-60 Hz |
|---|---|
| Chemical dosing | 6 l/h ( recommended maximum dosage) |
| Output per man-hour | 18 h max. per day |
