Turnstile (electrical) highline

Turnstile
Type DK-E Highline

Robust industrial version with electric turnstile

  • Highline version with vandalism-proof turnstile (10 years warranty)*
  • Encapsulated IP68 sensor for end position detection of the turnstile
  • For wall-mounting or with standfoot
  • Passage electrically released, way back: blocked
  • Siemens Logo control unit, all times individually adjustable
  • Multi-LED signal display

TypeVersionDimensions
W x D x H in mm
ComparePDF
DK-E WR  Wall-Right800 x 345/ 935 x 60011.10.07.1511.10.07.15
DK-E WLWall-Left800 x 345/ 935 x 60011.10.07.1611.10.07.16

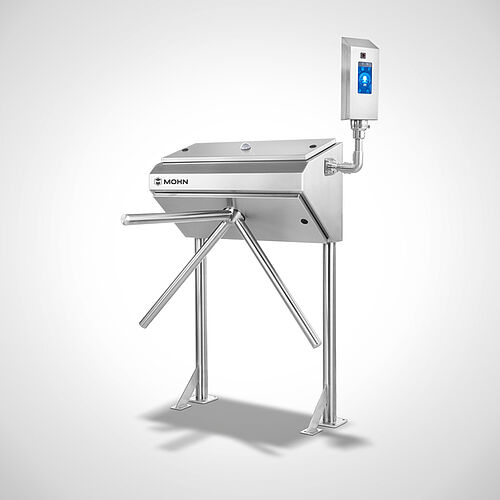

DK-E SRStand-Right800 x 345/ 935 x 141011.10.07.1711.10.07.17
DK-E SLStand-Left800 x 345/ 935 x 141011.10.07.1811.10.07.18
Special dimensions
Face-Checkpoint System Type FCP-HS  16100019
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
661
462
8
Show Lightbox Compare
Comparedata

*for the turnstile mechanism.



Material

Rustproof stainless steel 1.4301



Information

All parts which get mechanically loaded, are made of stainless steel 1.4301 full-material





Passage Direction

Turnstile passage direction
Left to Right





Turnstile passage direction

Right to Left

Technical Data

Power supply230V /N/PE; 50 Hz
Operating voltage24 V, DC
Performance0,1 kW
