Roast trolley
Roast trolley
Roast trolley
Type BRTW

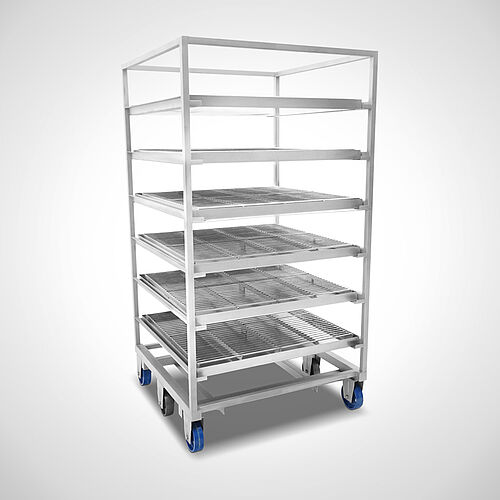

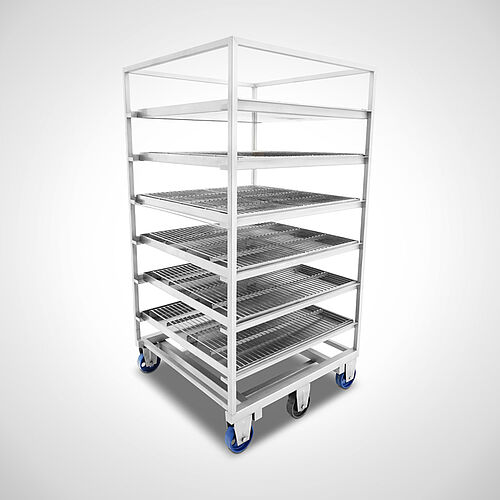

HEAT-RESISTANT TROLLEY WITH COLLECTION PAN AND CAST WHEELS
- Stable frame construction made of stainless steel
- Neatly welded and pickled first class
- Number of layers: 6, distance between layers: 250 mm
- Each level with 1 collecting tray, # 1.5 mm

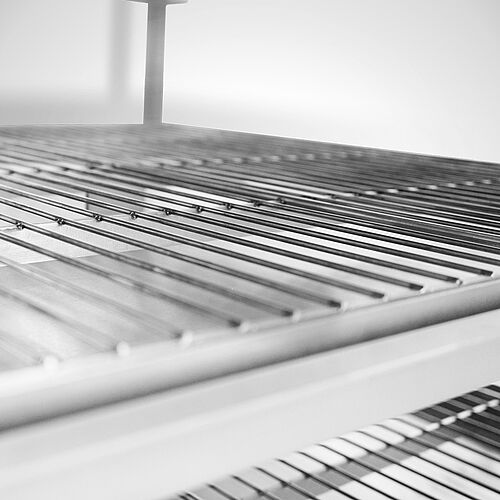

- Removable slotted grids in the format 930 x 930 x 50 mm
- Grid with 8 welded flat steel spacer feet
- Robust wheel carrier profile design: 50 x 50 x 2 mm
- Underneath wheel carriers with guide rails for automatic loading

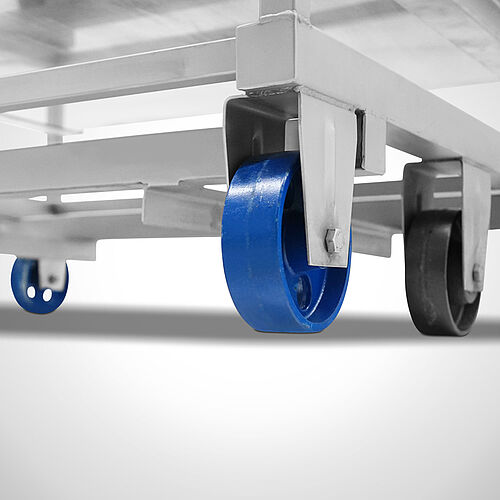

- 6 heat-resistant cast iron wheels (Ø 150 mm)
- Wheels designed for a temperature range of up to 300°C degrees
- Middle pair of wheels increased due to overturning moment
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Delivery take place without accessories. We manufacture individually according to customer requirements
Material
Made of stainless steel 1.4301, Wheels made of gray cast iron.
Advantages
- Heat-resistant, heavy-duty cast iron wheels - ensure easy transportation even at high temperatures
- Removable grid slats with welded-on flat steel spacer feet - offer high load capacity and easy cleaning

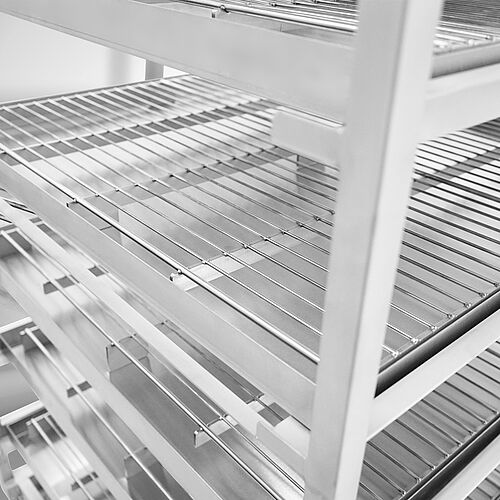

- Safe and clean handling - the grid slats are inserted into a removable drip tray that effectively collects liquids and ensures hygiene
- Optimal integration into production lines - the roasting trolley is perfect for automatic loading of smoking and cooking systems thanks to the integrated guide rails underneath the wheel carriers
- Robust and durable - made from high-quality stainless steel for a long service life
Information
We manufacture roast trolleys according to your requirements with regard to frame construction, number of floors, floor design, floor space, handles, wheels and dimensions.
Options
- Closed wheel case
- Wheels with roll-and ball bearing
- Floor and ground clearance on request
