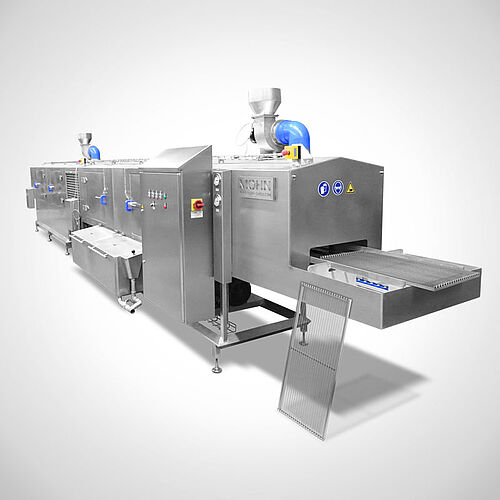

Industrial washing machine Highline
Type DLWA 701-BS4
ONE-Tank WASHING MACHINE FOR CLEANING CANS perforated half shell sheets
- Industrial washing machine (sheet washing machine) - nominal capacity 720 - 750 units per hour (one lane)
- Completely double-walled, soundproof and heat insulated machine housing made of one piece and completely welded, low energy consumption
- Mainwash zone, length 4500 mm (incl. rinse zone) with pump capacity 15 kW - 2000 ltr./m at 3 bar
- Tank volume 1200 Liter, depends on filter type execution*
- Nozzle arms with stainless steel nozzles can be removed and cleaned without any tools (Nozzle arms with forced positioning)
- Infeed table, electrically driven: length 1,500 mm, for easy manual feeding
- Outlet table: length 500 mm additional with 90° roller conveyor (length: 1500 mm) with limit switch (Belt + stop with full outlet belt after final rinsing)
- Electrically driven conveyor belt/ washing material conveyance via Scanbelt bone chain - Passage width 520 mm
- Large and easily cleanable external filter box with funnel overflow
- Steam-heated tank with 40 kW heating capacity, optional with electrical heating or via heat exchanger
- Special filament heaters made of heat-resistant stainless steel, easy to clean, secure against burn-through
- Mainwash zone: Washing temperature 50-55° Celsius
- Rinse zone: fresh water optionally hot water or cold water rinse (with hydrogen peroxide) via 2 separate nozzle rings
- High-quality components from renowned manufacturers in Rittal HD control cabinet made of stainless steel
- Neutral zone (L: 1000 mm) between washing zone and blower zone
- Blower zone with 4 ELEKTROR air compressor with each 5 kW power and aerodynamically optimised "air knife".
- Steam exhaust without stainless steel piping in the inlet area and the neutral zone (before the blower zone)
- Stainless steel exhaust system DN250 with exhaust motor, air temperature approx. 30°C, 1500 m³/h at. 500 Pa
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
*Width depending on filter version
Material
Partially made of rustproof stainless steel 1.4301
DESCRIPTION AND SPECIFICATIONS
The Highline DLWA 701-BS4 industrial washer was designed for cleaning perforated half-shell sheets (for mini-salamis) in order to clean and disinfect them in a continuous process. After cleaning, 99% of the residual water is removed in the blower zone.
The rinse zone is equipped with 2 jet rinsing rings. A switch can be used to select the first nozzle ring for hot water rinsing or the second nozzle ring for cold water rinsing. If cold water rinsing is selected, chemicals (hydrogen peroxide) must be added to disinfect the sheets.
WaSHing good
- Perforated half shell sheets for salami: length1000 mm x width 500 mm x height 30 mm
Technical Data
| Power supply | 3x 400 V/ N/ PE; 50 Hz |
|---|---|
| Drain | DN 50 |
| Water connection | 3/4“, 15-85°C, 1-6 bar, 2-8°dH |
| Water consumption | ca. 500-800 l/h |
| Tank capacity | 1200 Liter |
| Pump capacity | 15 kW 2000 ltr./min. at 3 bar (main wash zone) |
| Washing tunnel length | 4500 mm (main wash zone and rinsing zone |
| Fan engine power | 4x 5kW ELEKTRO air compressor with 1500m3/h at 500Pa |
| Compressed air supply | 1/4" <100 l/h 6bar |
| Heating power tank | 40 KW (Dampf) - 3/4" - 1-6 bar |
| Wash tunnel dimensions (w x h) | B 520 x H 30 mm |
| Power rating electric heating (10 kW) | 32 kW |
| Exhaust ventilation | DN 250 (exhaust air connection) at 2 points |
| Working height | 1000 mm (ergonomic) |
