Pass-through washing system, 45 pallet boxes/h
Pass-through washing system, 45 pallet boxes/h
Pass-trough washing machine for big boxes
Type DLWA-GB
For cleaning plastic paloxes 1,200x 800 x800 mm in pass-through washing
- Output 45 pieces/h with fresh, slight to medium soiling
- Completely double-walled, soundproof and heat insulated machine housing made of one piece and completely welded,
- low energy consumption
- Infeed lane with 3,000 mm long drive
- Infeed table 1500 mm long
- The infeed area is followed by a 1,000 mm long neutral zone and the inlet into the wash area
- EDUR stainless steel centrifugal pump 22 kW; circulation 2,000l/ min at 5 bar wash pressure
- Tank 2,000 l with extra large external box filter
- Electric heating, optional with direct or indirect steam
- Washing tunnel passage width approx. 850 mm
- Internal tunnel height up to 1,050 mm
- Drip-off line: 1,000 mm long
- Clear rinsing with directly inflowing fresh water, valve opens only with the paloxe passing by, flush zone length 1,000 mm
- Optional with fresh water heating to >82°C, electric or with steam
- Outfeed table 1,500 mm long
- Outfeed without drive via gravity roller conveyor with limit stop approx. 4,000 mm long
- Extraction via KARL KLEIN stainless steel radial fan 1,500 m3/ h at 500 Pa
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Example of machine. Other hourly rates on request.
Material
Made of rustproof stainless steel 1.4301
Options
- Direct tank heater via steam Article no. 11.10.00.84
- Indirect tank heater via steam Article no. 11.10.00.83
- 10 kW electric boiler for heating the flushing water Article no. 11.10.00.86
- 20 kW electric boiler for heating the flushing water Article no. 11.10.00.85
- Steam heat exchanger to heat the final rinsing water Article no. 11.10.00.82
- Drum filter for automatic dirt discharge Article no. 11.10.02.73
- Vapour exhaust 1500 m3/ h at 800 Pa 2x required Article no. 11.10.02.74
Reference Photos
Downloads
Video

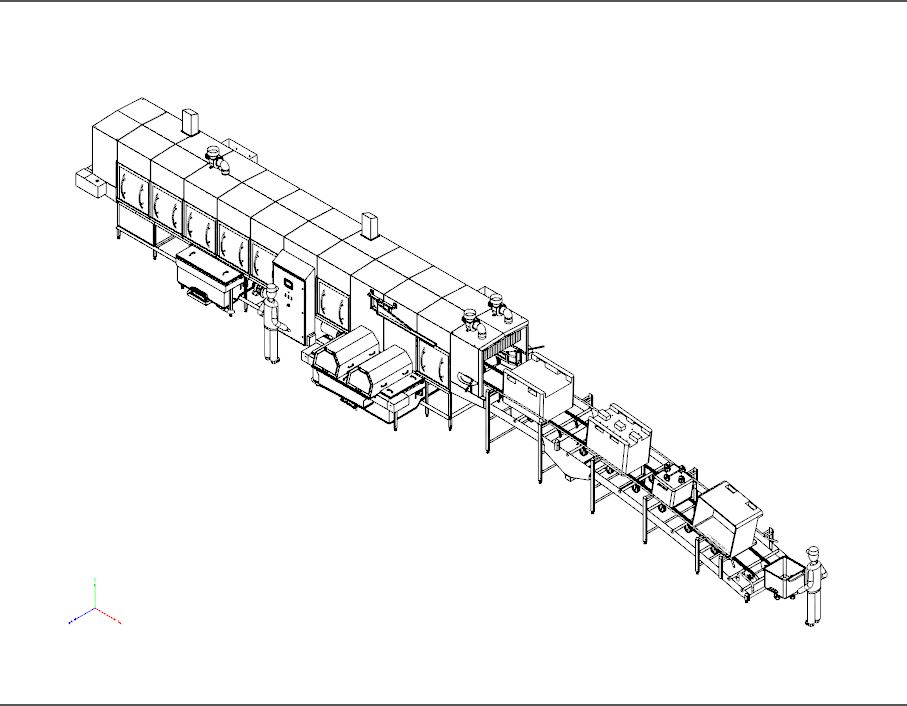

To clean the large containers (big boxes) from our customer BIOCEVAL in Cuxhaven-Germany, used, a 27-meter-long continuous washing system including a fully automatic de-stacking device including a weighing zone was planned, constructed and implemented. The column lift with turning station has a load capacity of 2000 kg. The capacity of the large container continuous washing system is 40 containers per hour.
