Washing systems for pallets
Pallet washing systems for the industry
Pallet washing systems are used in industry wherever pallets - usually those made of plastic (H1) - need to be cleaned after use in order to be reused. This is particularly necessary in production operations, where strict hygiene regulations have to be complied with, for example in the foodstuff industry or the cosmetics and pharmaceutical industry. To a lesser extent, however, this also applies to businesses that produce food for the end consumer, for example industrial bakeries and industrial kitchens as well as in agricultural large-scale businesses. The extent to which the installation of a pallet washing system is worthwhile compared to manual cleaning depends on the volume of contaminated pallets, that is the company size.
In addition, systems for washing pallets are also used in complex production operations of the industry where there is a high volume of logistical use making regular cleaning of the pallets necessary. This applies to parts of the automotive industry, for example, but also for other ones. In the field of pallet washing systems, we at Mohn offer both systems that are intended purely for washing pallets and those that are intended for pallets and containers (e.g. boxes). The cleaning of pallets and containers must be carried out separately, however.

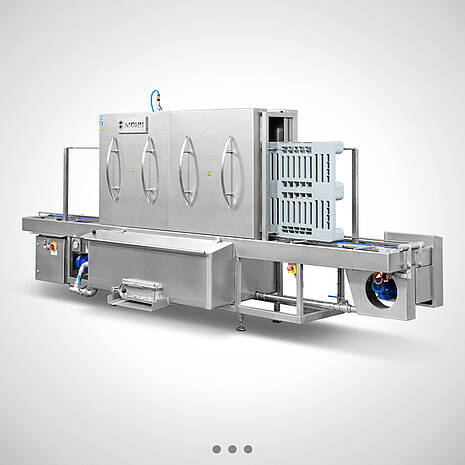

Pallet washing system without prewash zone
Die Palettenwaschanlagen ohne Vorwaschzone bieten wir sowohl in vertikaler wie in horizontaler Ausführung an. Diese Palettenwaschanlagen sind allein für die Reinigung von Kisten und Paletten gedacht. Unsere Modelle haben je nach Ausführung eine Durchlaufquote von bis zu 500 Kisten (zweispurig) bzw. 120 Paletten (einspurig) pro Stunde.

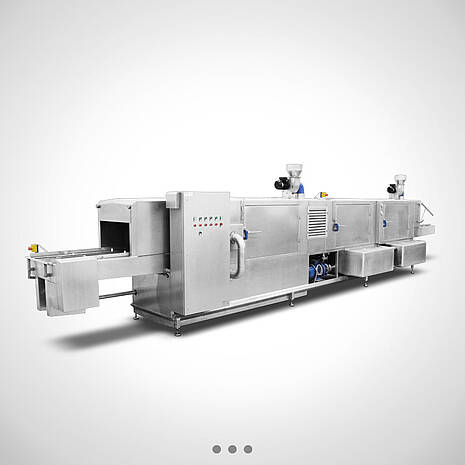

Pallet washing system with prewash zone
The pallet & container washing systems with prewash zone are designed for cleaning heavily soiled pallets and transport containers and are available exclusively in horizontal design. Depending on the model, the capacity of the pass-through washing systems amounts to a maximum of 1,200 boxes (two-track) or 150 H1 pallets (one-track) per hour.
Your contact persons
You have further questions about our pallet washing systems or about the topic of industrial washing systems and wish to have personal expert advice? By telephone or also on site with pleasure. Our experienced specialist advisers will find the optimum solution for you.
DESIGN AND FUNCTION OF PALLET WASHING SYSTEMS
The standard basic design of pallet washing systems from Mohn consists of a completely double-walled, sound- and heat-insulated machine housing with a main wash zone and an integrated final rinsing zone, whereby this basic module can be supplemented by a prewash zone and a blower module for drying - depending on customer requirements. Depending on the version of the respectively pallet washing system used, the pallets are transported through the washing tunnel either vertically (standing) or horizontally (lying) via motor-driven endless chain belts. Pallet washing systems with vertical loading are suited exclusively for cleaning pallets. Our pallet washing systems with horizontal conveyor belt loading, on the other hand, can also clean containers and boxes on two tracks simultaneously. Therefore, pallet washing systems with horizontal loading are clearly more flexible, efficient and cost-saving when cleaning different items to be washed.
After an optional cleaning in the prewash zone, a hot water/cleaning agent mixture is injected via stainless steel nozzles in the main wash zone; the pallets (or also containers) are thoroughly cleaned here under pressure. In the subsequent final rinsing zone, the items to be washed are freed from residues of the cleaning solution using fresh water. The fresh water used here is then fed via a special filter system to the main wash tank and returned to the system's circulation system in order to work as sustainably and resource-efficiently as possible.
FIELDS OF APPLICATION FOR PALLET WASHING SYSTEMS
Foodstuff industry
In the foodstuff industry with its particularly high hygiene regulations, regular cleaning of pallets is a necessity to avoid contaminations. Depending on the operating mode and size, both pure pallet washing systems with vertical infeed and our combined pallet & container washing systems can prove useful. In the process, it should be noted that the combined pallet washing system can only accommodate one type of item to be washed at a time, i.e. pallets and containers cannot be simultaneously cleaned.
Meat industry
In the meat industry and other meat processing operations, too, pallet washing systems are often used to meet the high requirements of hygiene regulations. Depending on the company size, pallet washing systems ensure regular supply of clean pallets or also boxes for the transport of the products.
Bakeries and industrial kitchens
Depending on the company size, pallet washing systems can also be used meaningfully in bakeries and industrial kitchens. Depending on the quantity of pallets to be cleaned, pallet and container washing systems are often well suited here in order to ensure a good utilisation as possible due to universal loading.
Cosmetics and pharmaceutical industry
In the cosmetics industry or the pharmaceutical industry, where hygiene regulations are at least as strict as in the foodstuff industry, pallet washing systems are often a necessity. Depending on the type and size of operation, any pallet washing systems can be used meaningfully here, similar to the foodstuff industry.
REQUIREMENT PLANNING FOR INDUSTRIAL WASHING SYSTEMS

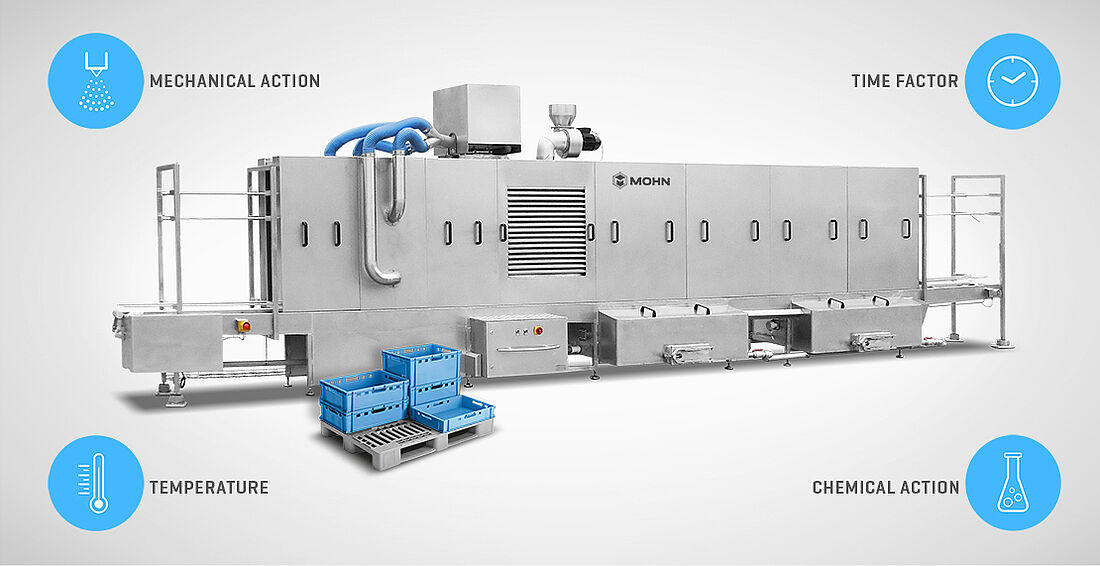

Pallet washing system Highline for the industry for cleaning plastic pallets type H1 in a continuous process
In case of changing a hygiene concept or setting up a new production facility, planning of the necessary hygiene measures is extremely important. This also includes the requirement planning for industrial washing systems as well as their installation at a suitable place. As specialists with a 20-year experience, we readily develop with you the needs for and the installation of the industrial washing systems for your operation. While doing so, we keep an eye on new developments with the legal hygiene regulations. In the process, the planning is therefore so important, because every business places unique requirements to industrial washing systems which have to be coped with.
The most important general factors include:
- the amount of materials to be cleaned as well as their sizes and assumed future developments
- the assumed level of pollution and its persistence
- the requirements of the food regulatory authority in charge (hygiene regulations)
- individual operational requirements as well as spatial conditions
Pallet washing systems can be used meaningfully wherever regular cleaning of plastic pallets, mostly the Euro H1 pallet, is sensible or necessary. This particularly applies to the industrial areas mentioned below, which have to meet the high hygiene requirements. Of course, pallet washing systems can also be used meaningfully in large operations if regular cleaning of the pallets seems sensible there and the volume seems to be high enough.
Please contact us
When planning and implementing washing systems for cleaning pallets various factors have to observed. Please contact us for more information.
PALLET WASHING SYSTEMS FROM MOHN
Pallet washing system Highline from Mohn - adjusted to your requirements and needs for an optimal cleaning
Every operation has own requirements and needs - that is why we at Mohn count on a close operation with our customers in order to achieve the highest customer satisfaction. Because that is our drive and our target. For more than 20 years, we have been your competent contact for the planning and implementation of concepts for the industrial washing systems. In the process, the company MOHN stands for highest demands and best quality.
Depending on the operational circumstances and individual needs, we offer a wide selection of pallet washing systems - also in the form of our combined washing systems with horizontal loading in order to also clean boxes and containers apart from pallets.

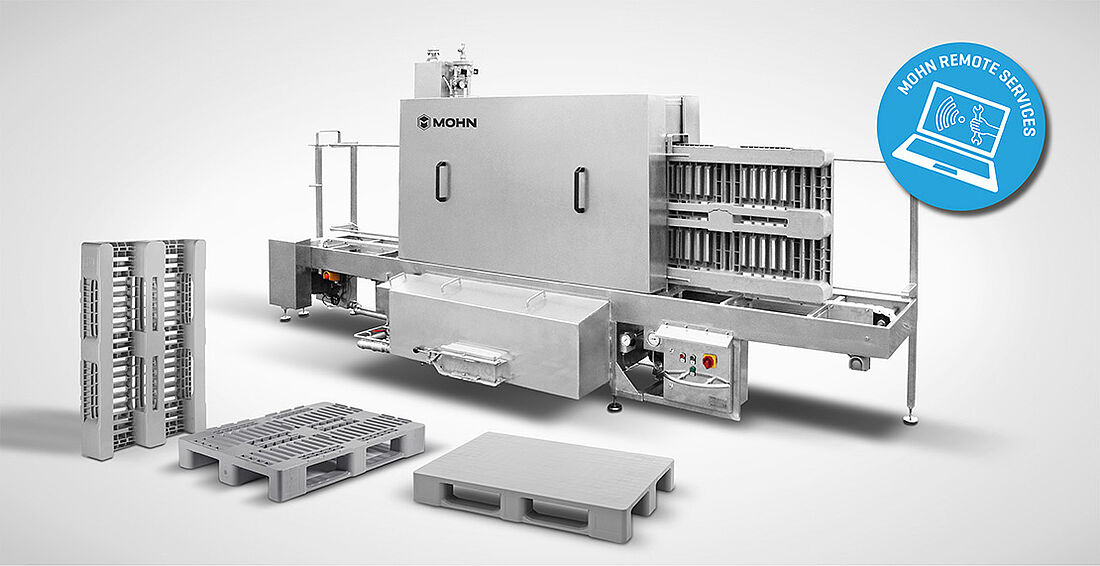

We even offer remote maintenance of machines as an option. This takes place via the TIA Portal from Siemens and enables complete access to the entire digitised automation of the digital planning to integrated engineering to the transparent operation. All operation, machine and plant processes can be optimised in this development environment.
Of course, we are happy to help you choose the right system and its installation and advise you from the very first moment. Another plus when deciding on a pallet washing system from Mohn is our endeavour to develop products that save as many resources as possible. This helps the environment and simultaneously lowers your operating costs.
MOHN SERVICES - THE PLUS FOR OUR CUSTOMERS
Our claim
We at Mohn make every effort to make it possible for our customers to implement 100% the legal hygiene regulations. This is what we stand for with our decades of experience and can thus advise you in detail and competently even on highly complex issues.
Advice and innovation
For us, in-depth advice with the customer is the beginning of our customer relations. This way you can benefit from our decades of experience and together we can find the best solutions for your business. Furthermore, we count on constant innovation of our products and on intensive monitoring of developments on the part of the legislator in order to always be one step ahead of them, if possible.
Competent service
Our service hotline is available to our customers five days a week, eight hours a day, in order for you to ask questions and to assist you in case of problems with initial aid, if possible. In addition, we operate our own vehicle fleet and a comprehensive spare parts warehouse for our products, so that our service technicians can also be deployed on site at your company as quickly as possible if repairs should be necessary.
Maintenance agreements
Complex plants such as our pallet washing systems can heavily benefit from concluding a maintenance contract. Regular checks and maintenance by our competent service technicians help identify and rectify problems in advance in order to avoid failures completely, which could possibly severely disrupt the operating process.
