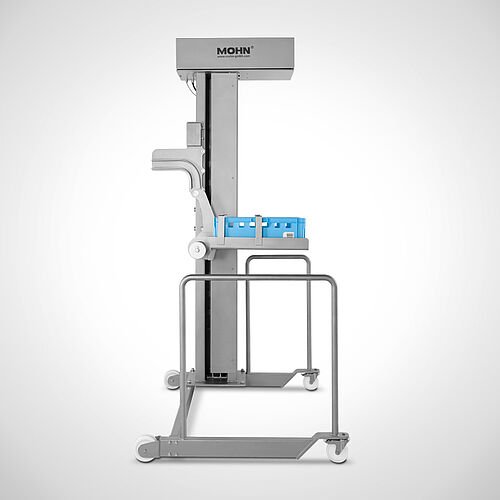

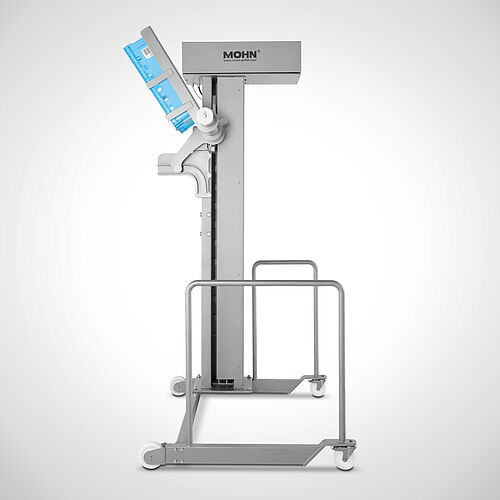

Lift + tilting device
Type HKV-E2
SUITABLE For lift and tilt euronorm-container (E2)
- Solid industrial execution guarenteed long-life
- Various tilting heights and tilting versions available
- Stationary version or optional with chassis (up to a tipping height of 2300 mm)
- Microplasted stainless steel surface
- Payload 350 kg
- Dead man's control
- Hygienic design control box incl. operating elements on lifting column at ergonomic height
- Optical chain tension indicator
- High pressure cleaning resistant, safety class IP 65
- Mechanical safety precautions (Special chain break protection)
- The safety cages is recommended from a tipping height of 2500 mm
- Standard execution: chain nickel-plated (16B-1)
- Highline execution: chain made oft stainless steel (NO relubrication of grease necessary + chemical resistant)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Nearly complete made of stainless steel 1.4301
Description
The execution of the lifting and tilting device is determined by the type and viscosity of the bulk material and, if necessary, extended by special chutes, hoppers, lift forks or lifting platforms. Thus, the tilting devices can be adapted for almost any application.
Attention:
Up to a tipping height of 2300 mm, the lifting and tilting device can provided with a chassis. In addition, a safety fence is recommended from a tilting height of 2300 mm. From a tilting height of 3200 mm, the lifting and tilting device must be additionally secured to the wall or ceiling by the customer.
Special drop safety
The fall arrester is made of stainless steel and consists of a 4 mm thick U-profile rail with rectangular fixing holes and a pressure spring activated 25 mm fork. (See picture 1 & picture 2)
(Picture 1) (Picture 2)
The fall protection comes into operation for breaking the chain, or if the chain sags. When that happens, the compression spring is released and the fork turns into the fixing holes and bring the load to an immediate stop.
Unlike conventional lifting-tilting a service call is not necessary after initiation of mechanical safety device.
Technical Data
| Power supply | 3x 400 V; 50 Hz |
|---|---|
| Performance | 0,75 kW |
| Protection class | IP 65 |
| Loading capacity | 350 kg (incl. E2-container) |
| Lifting speed | 5 m/min |
| Tilt angle | 35° |
| Adjustability | 2 steps, each 150 mm (machine preset on maximum lifting height) |
| Type | lift column execution Type A |
