Pass-through Knife-Basket Disinfection
Type Steri-King
Knife baskets pass-through disinfection by means of highly effective active oxygen
- Robust and functional design
- Hygienic-Design
- Capacity per hour: approx. 300 standard knife baskets
- Infeed conveyor 500 mm / Outfeed conveyor 1000 mm
- Disinfection tunnel 600 mm

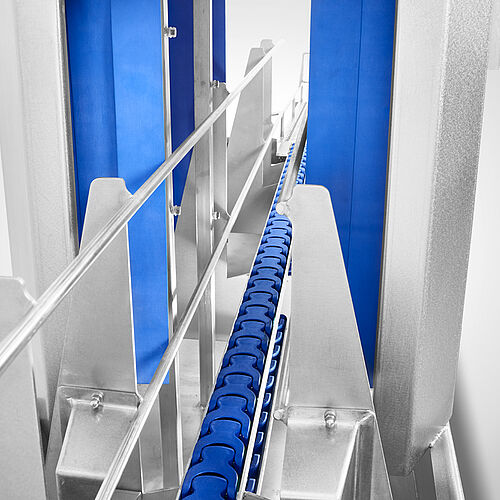

- Disinfection tunnel with 2 nozzle arms
- Conveyor belt starts and stops automatically via sensor control
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Rustproof stainless steel 1.4301
Description

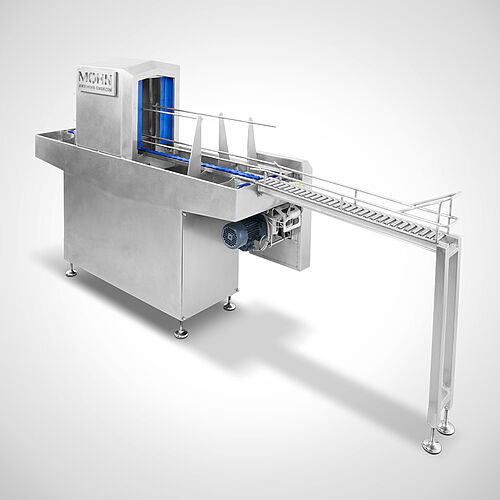

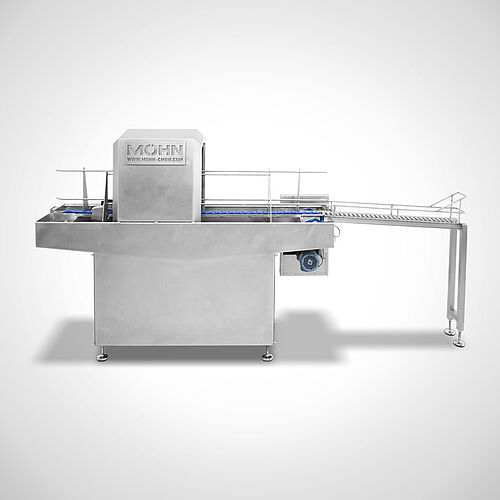

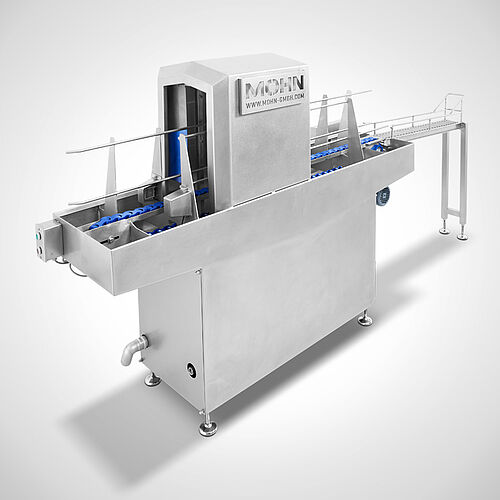

The 1-lane knife baskets pass-through disinfection machine, type Steri King is for automatical disinfection of knife baskets. The machine is available in left-/ right or right-/ left execution before production entrances.
The machine starts automatically via sensor operation when the knife basket is placed on the conveyor band. While passing the machine the knife baskets get disinfected via nozzle system and a mixture of chemistry and hot water. Here we recommend hydrogen peroxide since it dissolves itself during the disinfection process into water and oxygen. As such it can be used without hesitation.
The consumed water will be directed by means of a drain into the sewage system on site.
Technical Data
| Power supply | 400 V AC 3 N/50 Hz |
|---|---|
| Performance | 1 kW |
| Drain | DN 50 |
| Water connection | G 3/4", min. 1 bar, max. 6 bar (2-6° dH, cold) |
| Fusing | approx. 16 A |
| Weight | 350 kg |
| Noise level | 75 dB |

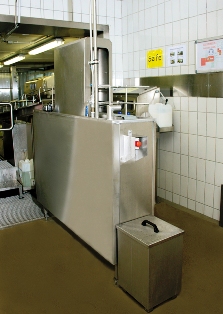

Reference Photos
