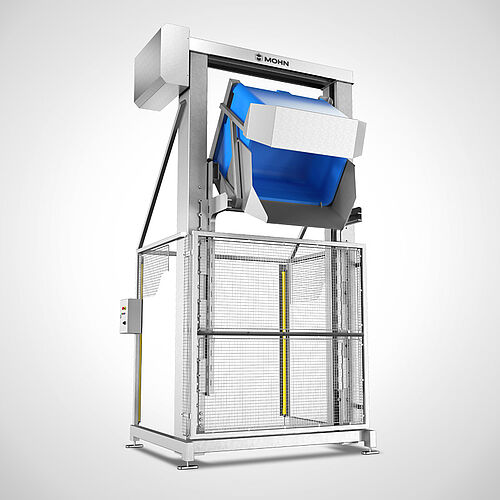

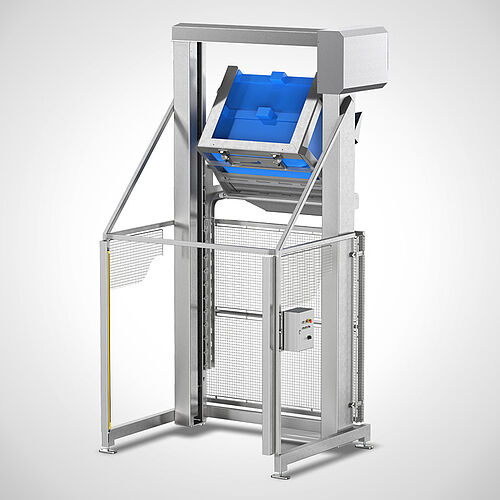

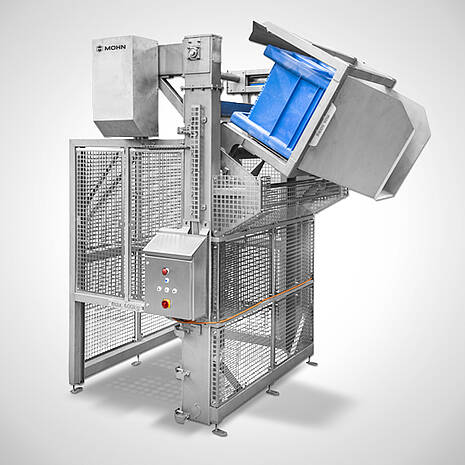

Double-column Lift + tilting device
Type HKV-GB 2S
Double-column system Suitable for Big-Boxes up to 1000 kg
- Solid industrial execution guarenteed long-life
- Nearly complete made of stainless steel
- Stationary double-column design for floor mounting and heavy loads
- Suitable for big-boxes with dimensions up to 1200 x 1000 x h 80 mm
- Various tilting heights available
- Emptying via the narrow side of the container or large box
- Maximum payload 1000 kg (inclusive bin), optional up to 1500 kg on request
- Hygienic design control box incl. operating elements on lifting column at ergonomic height
- Optical chain tension indicator
- High pressure cleaning resistant, safety class IP 65
- Mechanical safety precautions: Special chain break protection
- Standard execution type HKV-GB-2S-x-ST: chain nickel-plated (20 B-1)
- Highline execution typeHKV-GB-2S-x-HL: chain made of stainless steel
ADVANTAGE: No relubrication of grease necessary + chemical resistant)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Special executions on request possible.
Material
Nearly complete made of stainless steel 1.4301, microplasted stainless steel surface
The following parts are not made of stainless steel: Chain, tipping roller, gear motor, control and small parts.
Description
The execution of the lifting and tilting device is determined by the type and viscosity of the bulk material and, if necessary, extended by special chutes, hoppers, lift forks or lifting platforms. Thus, the tilting devices can be adapted for almost any application.
In accordance with DIN EN ISO 13854, the safety distance between the container in the tilted state and the device to be loaded (e.g. hopper of a packaging machine or tumbler) is 120 mm.
ADVANTAGES
- Hygienic design version: lifting column and control box
- Mechanical chain breakage protection, spring-operated
- Control box incl. operating elements mounted at service-friendly height by means of spacers
- Automatic switch for up and down (no dead man's switch)
- Safety fence according to the latest standards included
- Chain engagement protection made of stainless steel plate
- Optical chain tension indicator
=> ADVANTAGE: immediate fault detection
=> ADVANTAGE: higher machine availability
=> ADVANTAGE: easy tensioning of the chain
=> ADVANTAGE: Simple, quick visual inspection - Predetermined breaking point at the chain deflection
=> ADVANTAGE: Prevention of major damage - Chain: marking neutral (no flags f. sensor or similar)
=> ADVANTAGE: Easy replacement of the chain
=> ADVANTAGE: No adjustment of the end positions necessary - Idler pinion made of stainless steel, with maintenance-free bearing
=> ADVANTAGE: Increased service life compared to plastic
=> ADVANTAGE: No need for maintenance and lubricants - Separate inspection openings
=> ADVANTAGE: Allows quick maintenance and repair
Special drop safety
The fall arrester is made of stainless steel and consists of a 4 mm thick U-profile rail with rectangular fixing holes and a pressure spring activated 25 mm fork.
The fall protection comes into operation for breaking the chain, or if the chain sags. When that happens, the compression spring is released and the fork turns into the fixing holes and Brind the load to an immediate stop.
Unlike conventional lifting-tilting a service call is not necessary after initiation of mechanical safety device.
Technical Data
| Power supply | 3x 400 V; 50 Hz |
|---|---|
| Performance | 3 kW |
| Protection class | IP 65 |
| Loading capacity | 1000 kg (including big box) |
| Lifting speed | 5 m/min |
| Tilt angle | 120° |
| Adjustability | 2-stage in 150 mm steps (system preset to max. tipping height!) |
| Maximum power | ca. 15 strokes/ h |
